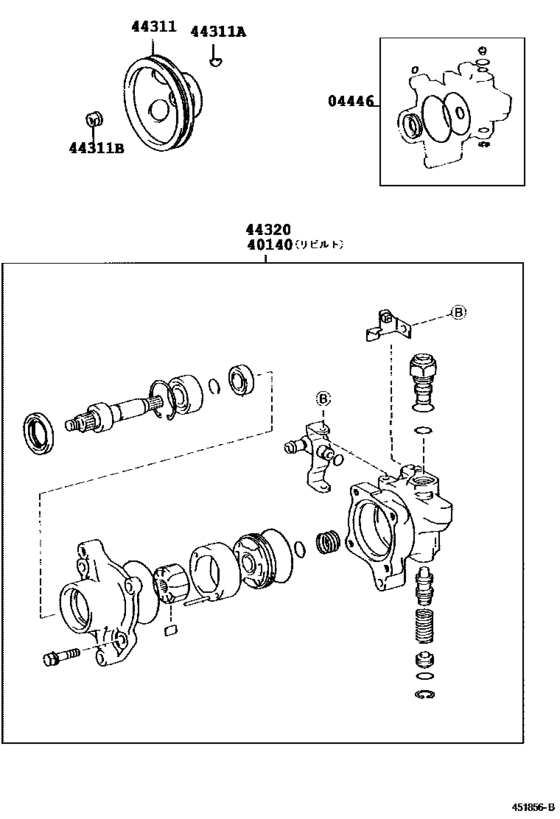

Vane Pump & Reservoir (Power Steering) ([06.1999 - ] ﾚｲﾄｳｼﾔ (9906- )CM7#,85..IV3) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM70
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- IV3
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-27011 Gasket Kit, Power Steering Pump[06.1999 - 08.2002] CM7#,85..IV3 ﾚｲﾄｳｼﾔ |
04446-27011 |
from US $34.61 |
||
|
04446
|
04446
04446-34010
Gasket Kit, Power Steering Pump
[06.1999 - 08.2002] CM7#,8#,KM7#,8# |
04446-34010 |
— | ||
| replacement | |||||
|
04446
|
04446
04446-53030 Gasket Kit, Power Steering Pump[06.1999 - 08.2002] CM7#,8#,KM7#,8# |
04446-53030 |
from US $22.85 |
||
|
04446
|
04446
04446-53030 Gasket Kit, Power Steering Pump[08.2002 - 08.2004] CM7#,8# |
04446-53030 |
from US $22.85 |
||
|
40140
|
40140
40140-27110 Pump Assy,vane Rebuilt[06.1999 - 08.2002] CM7#,85..IV3 ﾚｲﾄｳｼﾔ,ＴＯＹＯＤＡ ＫＯＫＩ |
40140-27110 |
US $773.14 |
||
| replacement | |||||
|
40140
|
40140
44320-27110 Pump Assy, Vane[06.1999 - 08.2002] CM7#,85..IV3 ﾚｲﾄｳｼﾔ,ＴＯＹＯＤＡ ＫＯＫＩ |
44320-27110 |
US $1,103.65 |
||
|
40140
|
40140
40140-27130 Pump Assy,vane Rebuilt[06.1999 - 08.2002] CM7#,8# |
40140-27130 |
US $773.14 |
||
| replacement | |||||
|
40140
|
40140
44320-27130 Pump Assy, Vane[06.1999 - 08.2002] CM7#,8# |
44320-27130 |
US $1,100.74 |
||
|
44311
|
44311
44311-27030 Pulley, Vane Pump[06.1999 - 08.2002] CM7#,85..IV3 ﾚｲﾄｳｼﾔ |
44311-27030 |
US $94.64 |
||
|
44311
|
44311
44311-28080 Pulley, Vane Pump[06.1999 - 08.2002] CM7#,8# |
44311-28080 |
US $90.27 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[06.1999 - 08.2002] CM7#,85..IV3 ﾚｲﾄｳｼﾔ |
90280-05008 |
US $3.94 |
||
|
44311B
|
44311B
90178-12003 Nut(For Vane Pump Pulley)[06.1999 - 08.2002] KM7#,8#; CM7#,85..IV3 ﾚｲﾄｳｼﾔ |
90178-12003 |
from US $0.92 |
||
|
44311B
|
44311B
90179-12022 Nut(For Vane Pump Pulley)[06.1999 - 08.2002] CM7#,8# |
90179-12022 |
US $6.63 |
||
|
44320
|
44320
44320-27110 Pump Assy, Vane[06.1999 - 08.2002] CM7#,85..IV3 ﾚｲﾄｳｼﾔ |
44320-27110 |
US $1,103.65 |
||
|
44320
|
44320
44320-27130 Pump Assy, Vane[06.1999 - 08.2002] CM7#,8# |
44320-27130 |
US $1,100.74 |
||
