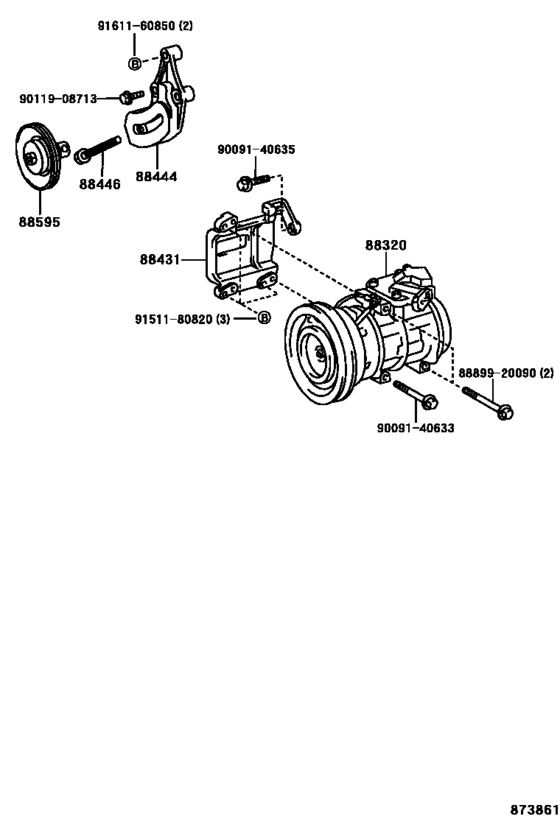

Heating & Air Conditioning - Compressor ([06.1999 - 08.2002] ｺｳｼﾖｾﾝﾖｳｼﾔｼ (9906-0208)CM85..5H..IV3) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM85
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- IV3
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-27200
Compressor Assy, Cooler
[06.1999 - 08.2002] CM85..5H..IV3 ﾚｲﾄｳｼﾔ |
88320-27200 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-27H90
Compressor Assy, Cooler
[06.1999 - 08.2002] CM85..5H..IV3 ﾚｲﾄｳｼﾔ |
88320-27H90 |
— | ||
|
88320
|
88320
88320-27210
Compressor Assy, Cooler
[06.1999 - 08.2002] CM7#,8# |
88320-27210 |
— | ||
|
88320
|
88320
88320-27240
Compressor Assy, Cooler
[06.1999 - 08.2002] CM85..5H..IV3 ｺｳｼﾖｾﾝﾖｳｼﾔｼ |
88320-27240 |
— | ||
|
88431
|
88431
88431-27120
Bracket, Compressor Mounting, No.1
[06.1999 - 08.2002] CM7#,85..5H..IV3 ﾚｲﾄｳｼﾔ,ＮＯ．２ |
88431-27120 |
— | ||
|
88431
|
88431
88431-27150
Bracket, Compressor Mounting, No.1
[06.1999 - 08.2002] CM7#,85..5H..IV3 ﾚｲﾄｳｼﾔ,ＮＯ．１ |
88431-27150 |
— | ||
|
88431
|
88431
88431-27160
Bracket, Compressor Mounting, No.1
[06.1999 - 08.2002] CM7#,85..5H..IV3 ﾚｲﾄｳｼﾔ,ＮＯ．３ |
88431-27160 |
— | ||
|
88431
|
88431
88431-27170
Bracket, Compressor Mounting, No.1
[06.1999 - 08.2002] CM7#,8# |
88431-27170 |
— | ||
|
88431
|
88431
88431-27210
Bracket, Compressor Mounting, No.1
[06.1999 - 08.2002] CM85..5H..IV3 ｺｳｼﾖｾﾝﾖｳｼﾔｼ |
88431-27210 |
— | ||
|
88444
|
88444
88444-27011
Plate, Front Valve
[06.1999 - 08.2002] CM7#,8# |
88444-27011 |
— | ||
|
88446
|
88446
88446-35010 Bolt, Idle Pulley[06.1999 - 08.2002] CM7#,85..5H..IV3 ﾚｲﾄｳｼﾔ |
88446-35010 |
from US $3.32 |
||
|
88446
|
88446
90099-04306 Bolt, Idle Pulley[06.1999 - 08.2002] CM7#,8# |
90099-04306 |
US $1.92 |
||
|
88595
|
88595
88440-35010 Pulley Assy, Idle[06.1999 - 08.2002] CM7#,85..5H..IV3 ﾚｲﾄｳｼﾔ |
88440-35010 |
from US $54.26 |
||
|
88595
|
88595
88440-35020 Pulley Assy, Idle[06.1999 - 08.2002] CM7#,8# |
88440-35020 |
from US $84.36 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009140633
|
9009140633
90091-40633
New Genuine Part
|
90091-40633 |
— | ||
|
9009140635
|
9009140635
90091-40635
New Genuine Part
|
90091-40635 |
— | ||
|
9011908713
|
9011908713
90119-08713
Bolt(For Intake Manifold To Exhaust Manifold)
|
90119-08713 |
— | ||
| replacement | |||||
|
9011908713
|
9011908713
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.86 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
from US $1.92 |
||
