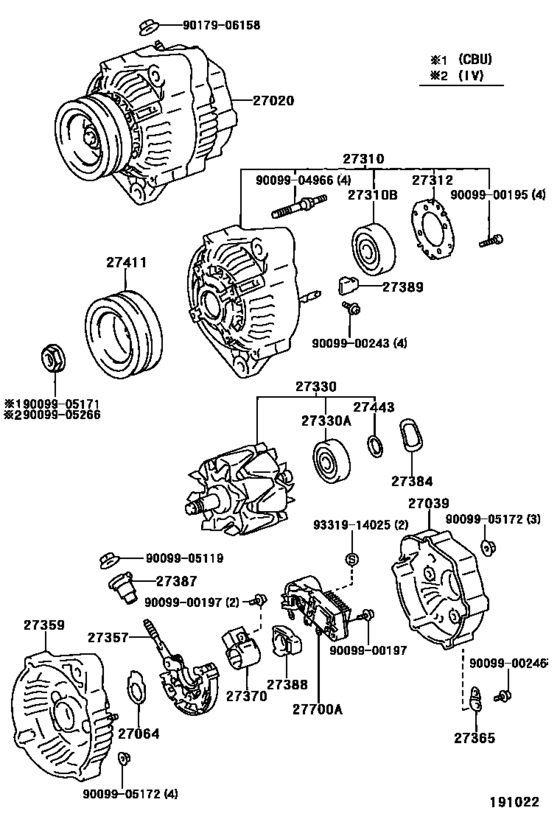

Alternator ([06.1999 - 08.2002] 12V 70A (9906-0208)3CE) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM85
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-64300 Alternator Assy[06.1999 - 08.2002] 3CE..CM7#,8# １２Ｖ ５５Ａ |
27060-64300 |
US $1,439.98 |
||
|
27039
|
27039
27039-16380
Cover, Alternator Rear End
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
27039-16380 |
— | ||
|
27310
|
27310
27310-64460
Frame Assy, Drive End, Alternator
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
27310-64460 |
— | ||
|
27310B
|
27310B
90099-10178 Bearing(For Alternator Drive End Frame)[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
90099-10178 |
from US $17.65 |
||
|
27312
|
27312
27312-70200
Plate, Bearing Retainer, Alternator
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
27312-70200 |
— | ||
|
27330
|
27330
27330-11250
Rotor Assy, Alternator
[06.1999 - 07.2000] 3CE..CM7#,8# 12V 55A |
27330-11250 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[06.1999 - 07.2000] 3CE..CM7#,8#;7KE..KM7#..4HC;7KE..KM7#..5H..IV3 12V 55A,70A,80A |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-13360
Holder, Alternator, W/rectifier
[06.1999 - 08.2002] 7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8# 12V 55A |
27357-13360 |
— | ||
|
27359
|
27359
27359-64462
Frame, Alternator Rectifier End
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
27359-64462 |
— | ||
|
27370
|
27370
27370-58320 Holder Assy, Alternator Brush[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
27370-58320 |
from US $17 |
||
|
27384
|
27384
27384-16380
Washer
[06.1999 - 08.2002] 7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8# 12V 55A |
27384-16380 |
— | ||
|
27387
|
27387
27387-70171
Insulator, Terminal
[06.1999 - 08.2002] 7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8# 12V 55A |
27387-70171 |
— | ||
|
27389
|
27389
27389-63020
Insulator, Terminal
[06.1999 - 08.2002] 7KE..KM7#..5H;3CE,7KE..CM7#,8#,KM8# 12V 55A |
27389-63020 |
— | ||
|
27411
|
27411
27411-64460
Pulley, Alternator
[06.1999 - 08.2002] 3CE..CM7#,8# 12V 55A |
27411-64460 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[06.1999 - 08.2002] 3CE,7KE..CM7#,8#,KM7#,8# |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-50030 Regulator Assy, Generator[06.1999 - 08.2002] 3CE..CM7#,8# |
27700-50030 |
from US $160.78 |
||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905266
|
9009905266
90099-05266 New Genuine Part |
90099-05266 |
US $3.79 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
