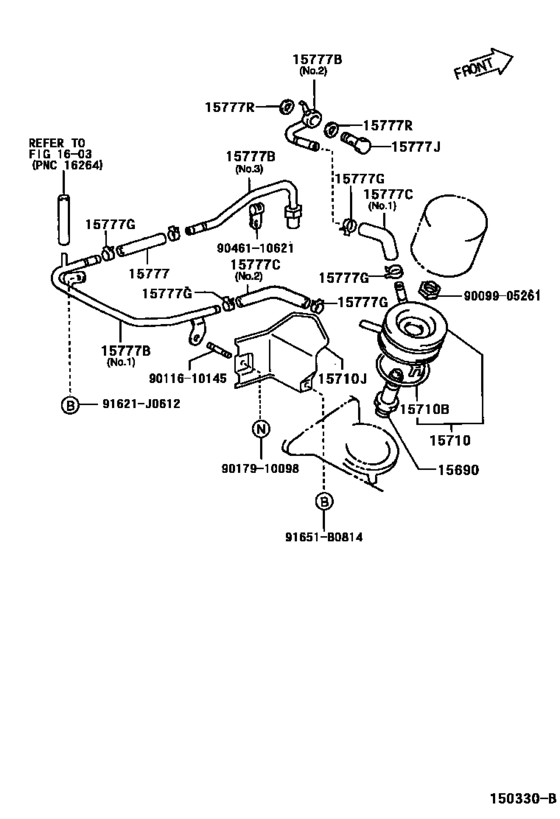

Engine Oil Cooler ([06.1999 - ] (9906- )3CE) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM85
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15690
|
15690
15695-64010
Valve Assy, Oil Cooler Relief
[08.2002 - 08.2004] 3CE..CM7#,8# |
15695-64010 |
— | ||
|
15690
|
15690
15695-64030
Valve Assy, Oil Cooler Relief
[06.1999 - 08.2002] 3CE..CM7#,8# |
15695-64030 |
— | ||
|
15710
|
15710
15710-64220 Cooler Assy, Oil[06.1999 - 08.2002] 3CE..CM7#,8# |
15710-64220 |
US $639.18 |
||
|
15710
|
15710
15710-64230 Cooler Assy, Oil[08.2002 - 08.2004] 3CE..CM7#,8# |
15710-64230 |
US $809.54 |
||
|
15710B
|
15710B
90301-67004 Ring, O(For Oil Thermostat Housing)[06.1999 - 08.2002] 3CE..CM7#,8# |
90301-67004 |
from US $3.26 |
||
|
15710J
|
15710J
17168-64130 Insulator, Exhaust Manifold Heat, No.2[06.1999 - 08.2002] 3CE..CM7#,8# |
17168-64130 |
US $21.69 |
||
|
15777
|
15777
90445-21006 Hose, Oil Cooler[06.1999 - 08.2002] 3CE..CM7#,8# |
90445-21006 |
US $6.12 |
||
|
15777B
|
15777B
15767-64120 Pipe, Oil Cooler[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．１ |
15767-64120 |
US $57.51 |
||
|
15777B
|
15777B
15768-64140 Pipe, Oil Cooler[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．２ |
15768-64140 |
US $48.92 |
||
|
15777B
|
15777B
15769-64011 Pipe, Oil Cooler[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．３ |
15769-64011 |
US $54.51 |
||
|
15777C
|
15777C
15777-64090 Hose, Oil Cooler[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．１ |
15777-64090 |
US $22.28 |
||
|
15777C
|
15777C
15778-64070 Hose, Oil Cooler[06.1999 - 08.2002] 3CE..CM7#,8# ＮＯ．２ |
15778-64070 |
US $17.33 |
||
|
15777G
|
15777G
90467-20005
Clip(For Ventilation Hose No.2)
[06.1999 - 08.2002] 3CE..CM7#,8# |
90467-20005 |
— | ||
| replacement | |||||
|
15777G
|
15777G
96134-41900 Clip Or Clamp(For Ventilation Hose)[06.1999 - 08.2002] 3CE..CM7#,8# |
96134-41900 |
from US $1.44 |
||
|
15777G
|
15777G
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2002 - 08.2004] 3CE..CM7#,8# |
96134-41900 |
from US $1.44 |
||
|
15777J
|
15777J
90401-20004 Bolt, Union(For Oil Cooler Pipe)[06.1999 - 08.2002] 3CE..CM7#,8# |
90401-20004 |
from US $9.77 |
||
|
15777R
|
15777R
90430-20014 Gasket(For Oil Filter Bracket Union)[06.1999 - 08.2002] 3CE..CM7#,8# |
90430-20014 |
US $2.34 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
| replacement | |||||
|
91651B0814
|
91651B0814
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9009905261
|
9009905261
90099-05261
New Genuine Part
|
90099-05261 |
— | ||
|
9011610145
|
9011610145
90116-10145 New Genuine Part |
90116-10145 |
US $2.18 |
||
|
9017910098
|
9017910098
90179-10098 New Genuine Part |
90179-10098 |
US $1.49 |
||
|
9046110621
|
9046110621
90461-10621 New Genuine Part |
90461-10621 |
US $2.62 |
||
