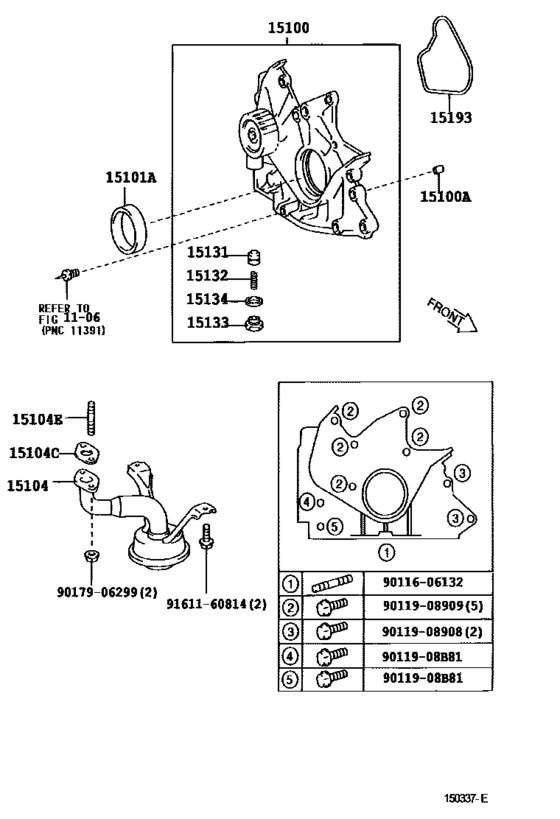

Engine Oil Pump ([06.1999 - 08.2004] (9906-0408)3CE) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2004
- Sales region
- Japan
- Frame
- CM85
- grade
- DX
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- DECK
- JL
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2004
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-64042 Pump Assy, Oil[06.1999 - 08.2002] 3CE..CM7#,8# |
15100-64042 |
from US $131.33 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[06.1999 - 08.2002] 3CE..CM7#,8# |
90253-11021 |
from US $1.50 |
||
|
15101A
|
15101A
90311-42031 Seal, Oil[06.1999 - 08.2004] 3CE..CM7#,8#..CBU,IV3 |
90311-42031 |
from US $4.96 |
||
|
15104
|
15104
15104-64110 Strainer Sub-Assy, Oil[06.1999 - 08.2002] 3CE..CM7#,8# |
15104-64110 |
US $68 |
||
|
15104C
|
15104C
15149-64070 Gasket(For Oil Strainer)[06.1999 - 08.2002] 3CE..CM7#,8# |
15149-64070 |
US $3.52 |
||
|
15104E
|
15104E
90116-06132 Bolt, Stud(For Oil Strainer)[06.1999 - 08.2002] 3CE..CM7#,8# |
90116-06132 |
US $1.05 |
||
|
15131
|
15131
15131-64041 Valve, Oil Pump Relief[06.1999 - 08.2002] 3CE..CM7#,8# |
15131-64041 |
US $5.39 |
||
|
15132
|
15132
15132-17010 Spring, Oil Pump Relief Valve[06.1999 - 08.2002] 3CE..CM7#,8# |
15132-17010 |
from US $1.27 |
||
|
15133
|
15133
15133-64041 Plug, Oil Pump Relief Valve[06.1999 - 08.2002] 3CE..CM7#,8# |
15133-64041 |
US $3.93 |
||
|
15134
|
15134
15134-67020 Gasket, Oil Pump Relief Valve[06.1999 - 08.2002] 3CE..CM7#,8# |
15134-67020 |
from US $1.79 |
||
|
15193
|
15193
15193-64022 Gasket, Oil Pump[06.1999 - 08.2002] 3CE..CM7#,8# |
15193-64022 |
from US $3.47 |
||
|
9011908B81
|
9011908B81
90119-08B81 New Genuine Part |
90119-08B81 |
US $1.49 |
||
|
9011606132
|
9011606132
90116-06132 Bolt, Stud(For Oil Strainer) |
90116-06132 |
US $1.05 |
||
|
9011908908
|
9011908908
90119-08908 BOLT WWASHER |
90119-08908 |
US $1.22 |
||
|
9011908909
|
9011908909
90119-08909 New Genuine Part |
90119-08909 |
US $1.22 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
