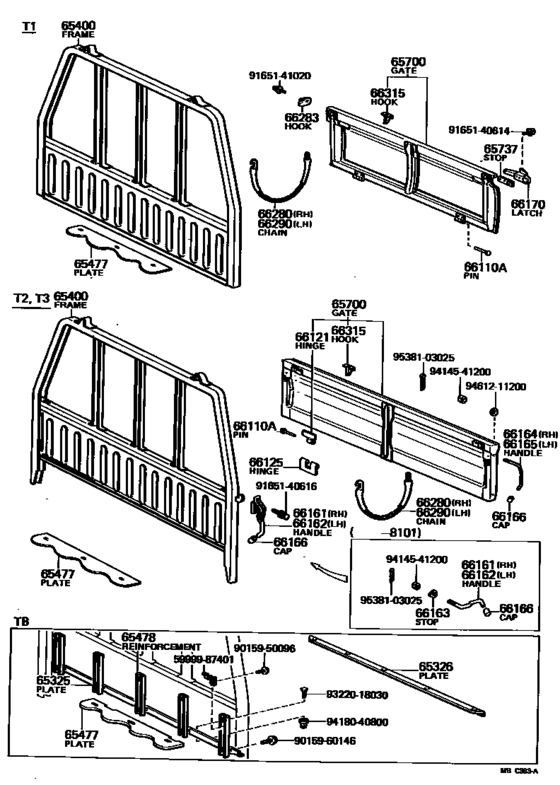

Rear Body Guard Frame & Tail Gate ([10.1979 - 10.1982] (7910-8210)TR) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20
- grade
- DLX
- body
- TR
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- DECK
- T1
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- IV
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65400
|
65400
65400-87409
Frame Assy, Rear Body Guard
[10.1979 - 10.1982] KM20..T1 |
65400-87409 |
— | ||
|
65477
|
65477
65477-87402
Plate, Baffle
[10.1979 - 10.1982] KM20..TR..ST;KM20..WT..IV;KM20..TS..WT |
65477-87402 |
— | ||
|
65700
|
65700
65700-87406 Gate Assy, Rear Body TailREAR BODY TAIL [10.1979 - 10.1982] KM20..T1 |
65700-87406 |
US $840.11 |
||
| replacement | |||||
|
65700
|
65700
65700-95700 Gate Assy, Rear Body Tail[10.1979 - 10.1982] KM20..T1 |
65700-95700 |
US $797.89 |
||
|
65737
|
65737
65737-87401 Stop, Tail GateTAIL GATE [10.1979 - 09.1986] KM2#..T1 |
65737-87401 |
US $5.10 |
||
|
66110A
|
66110A
66113-87401 Pin, Tail Gate HingeTAIL GATE HINGE [10.1979 - 09.1986] KM2#..T1 |
66113-87401 |
US $4.08 |
||
|
66170
|
66170
66170-87401 Latch Assy, Rear Body Tail GateREAR BODY TAIL GATE [10.1979 - 09.1986] KM2#..T1 |
66170-87401 |
US $38.88 |
||
|
66280
|
66280
66280-87403 Chain Assy, Tail Gate, RhTAIL GATE, RH [10.1979 - 10.1982] KM20..TR |
66280-87403 |
US $38.73 |
||
|
66283
|
66283
66287-87402
Hook, Tail Gate Chain Side
[10.1979 - 09.1986] KM2#..T1 RH |
66287-87402 |
— | ||
|
66283
|
66283
66288-87402
Hook, Tail Gate Chain Side
[10.1979 - 09.1986] KM2#..T1 LH |
66288-87402 |
— | ||
|
66290
|
66290
66280-87403 Chain Assy, Tail Gate, RhTAIL GATE, RH [10.1979 - 10.1982] KM20..TR |
66280-87403 |
US $38.73 |
||
|
66315
|
66315
66311-87401 Rope Hook Set[10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
66311-87401 |
US $5.97 |
||
|
5999987401
|
5999987401
59999-87401 Clamp(for Floor Mat) |
59999-87401 |
US $4.80 |
||
| replacement | |||||
|
5999987401
|
5999987401
59999-95703
Clamp(for Floor Mat)
|
59999-95703 |
— | ||
|
9015950096
|
9015950096
90159-50096 New Genuine Part |
90159-50096 |
US $1.31 |
||
|
9015960146
|
9015960146
90159-60146 New Genuine Part |
90159-60146 |
US $1.75 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
US $1.61 |
||
|
9322018030
|
9322018030
93220-18030 New Genuine Part |
93220-18030 |
US $2.18 |
||
| replacement | |||||
|
9322018030
|
9322018030
93230-18030 New Genuine Part |
93230-18030 |
US $1.46 |
||
|
9414541200
|
9414541200
94145-41200 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94145-41200 |
US $1.89 |
||
| replacement | |||||
|
9414541200
|
9414541200
94142-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting) |
94142-01202 |
US $2.18 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.72 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
