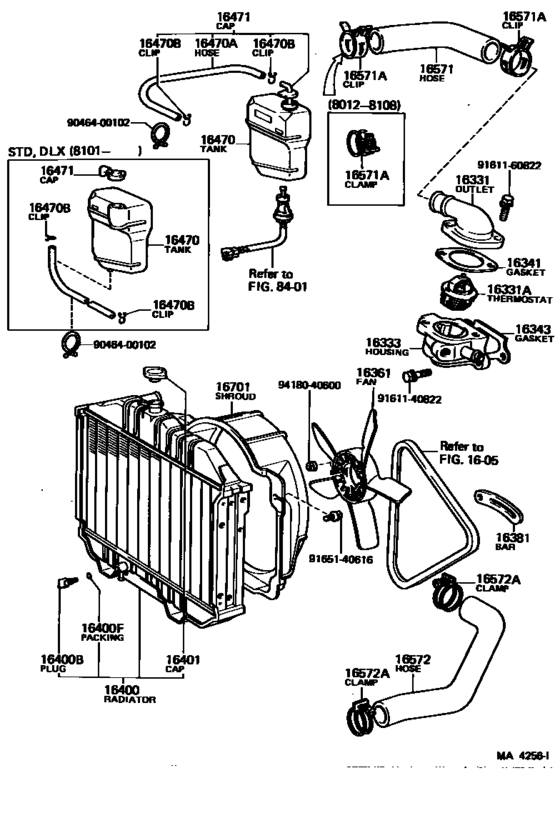

Radiator & Water Outlet ([10.1979 - 10.1982] (7910-8210)4KJ) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20V
- grade
- DLX
- body
- V
- Roof
- SRF
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSG
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16331
|
16331
16331-24011 Outlet, WaterWATER [10.1979 - 09.1986] 4KJ..KM2# |
16331-24011 |
US $21.84 |
||
|
16331A
|
16331A
90916-03020
Thermostat
[10.1979 - 11.1979] 4KJ..KM20 *WAX 82-95,*(F) |
90916-03020 |
— | ||
|
16331A
|
16331A
90916-03034 Thermostat[11.1979 - 10.1982] 4KJ..KM20 *WAX 82-95,*(F) |
90916-03034 |
US $17.02 |
||
|
16331A
|
16331A
90916-03036
Thermostat
[10.1979 - 10.1982] 4KJ..KM20 COLD SPEC,*WAX 88-100,*(F); 13TU..TM20 COLD SPEC,*WAX 88-100,*(F) |
90916-03036 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03078 Thermostat[10.1979 - 10.1982] 4KJ..KM20 COLD SPEC,*WAX 88-100,*(F); 13TU..TM20 COLD SPEC,*WAX 88-100,*(F) |
90916-03078 |
from US $17.14 |
||
|
16331A
|
16331A
90916-03037
Thermostat
[11.1979 - 11.1982] 4KJ..KM2# *WAX 82-95,KUZEH |
90916-03037 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[11.1979 - 11.1982] 4KJ..KM2# *WAX 82-95,KUZEH |
90916-03083 |
from US $17.14 |
||
|
16331A
|
16331A
90916-03038
Thermostat
[10.1979 - 11.1979] 4KJ..KM20 *WAX 82-95,KUZEH |
90916-03038 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03083 Thermostat[10.1979 - 11.1979] 4KJ..KM20 *WAX 82-95,KUZEH |
90916-03083 |
from US $17.14 |
||
|
16331A
|
16331A
90916-03040
Thermostat
[01.1982 - 11.1982] 4KJ..KM2# COLD SPEC,*WAX 88-100,KUZEH |
90916-03040 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03078 Thermostat[01.1982 - 11.1982] 4KJ..KM2# COLD SPEC,*WAX 88-100,KUZEH |
90916-03078 |
from US $17.14 |
||
|
16333
|
16333
16333-13040
Housing, Water Outlet
[10.1979 - 10.1982] 4KJ..KM20 |
16333-13040 |
— | ||
|
16341
|
16341
16341-13011
Gasket, Water Outlet
[10.1979 - 09.1986] 4KJ..KM2# |
16341-13011 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-13040 Gasket, Water Outlet[10.1979 - 09.1986] 4KJ..KM2# |
16341-13040 |
US $5.73 |
||
|
16343
|
16343
16343-22010
Gasket, Water Outlet Housing
[10.1979 - 01.1982] 4KJ..KM20 |
16343-22010 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-13020 Gasket, Water Outlet Housing[10.1979 - 01.1982] 4KJ..KM20 |
16343-13020 |
US $8.96 |
||
|
16343
|
16343
16343-22011
Gasket, Water Outlet Housing
[01.1982 - 09.1986] 4KJ..KM2# |
16343-22011 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-13020 Gasket, Water Outlet Housing[01.1982 - 09.1986] 4KJ..KM2# |
16343-13020 |
US $8.96 |
||
|
16361
|
16361
16361-26040
Fan
[10.1979 - 09.1986] 4KJ..KM2# |
16361-26040 |
— | ||
|
16381
|
16381
16381-24011
Bar, Fan Belt Adjusting
[10.1979 - 09.1986] 4KJ..KM2# |
16381-24011 |
— | ||
|
16400
|
16400
16400-13100 Radiator Assy[10.1979 - 10.1982] 4KJ..KM20 |
16400-13100 |
US $902.72 |
||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[10.1979 - 09.1986] 1C,2C..CM2#; 4KJ..KM2#; 13TU..TM20; 1YJ,2YU..YM2# |
16417-24200 |
from US $3.59 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[10.1979 - 09.1986] 1C,2C..CM2#; 4KJ..KM2#; 13TU..TM20; 1YJ,2YU..YM2# |
16418-24200 |
from US $1.27 |
||
|
16401
|
16401
16401-41021 Cap Sub-Assy, Radiator[10.1979 - 10.1982] 4KJ..KM20; 13TU..TM20 |
16401-41021 |
from US $21.67 |
||
|
16470
|
16470
16480-95700
Tank Assy, Radiator Reserve
[10.1979 - 01.1981] 4KJ..KM20..V..(DLX,STD); 13TU..TM20..DLX,STD |
16480-95700 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-95700 Tank Assy, Radiator ReserveRADIATOR RESERVE [10.1979 - 01.1981] 4KJ..KM20..V..(DLX,STD); 13TU..TM20..DLX,STD |
16470-95700 |
US $33.78 |
||
|
16470
|
16470
16480-95702
Tank Assy, Radiator Reserve
[01.1981 - 10.1982] 4KJ..KM20..V..(DLX,STD) |
16480-95702 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-95704 Tank Assy, Radiator ReserveRADIATOR RESERVE [01.1981 - 10.1982] 4KJ..KM20..V..(DLX,STD) |
16470-95704 |
US $45.43 |
||
|
16470A
|
16470A
90445-12090 Hose Or Pipe(For Radiator Reserve Tank)[10.1979 - 01.1981] 4KJ..KM20 ＊Ｈ，Ｌ＝１２００; 13TU..TM20 ＊Ｈ，Ｌ＝１２００ |
90445-12090 |
US $5.53 |
||
| replacement | |||||
|
16470A
|
16470A
90445-12015
Hose Or Pipe(For Radiator Reserve Tank)
[10.1979 - 01.1981] 4KJ..KM20 ＊Ｈ，Ｌ＝１２００; 13TU..TM20 ＊Ｈ，Ｌ＝１２００ |
90445-12015 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[10.1979 - 09.1986] 1C,2C..CM2#; 4KJ..KM2#; 13TU..TM20; 1YJ,2YU..YM2# |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-95700 Cap Sub-Assy, Reserve TankRESERVE TANK [10.1979 - 01.1981] 4KJ..KM20..V |
16405-95700 |
US $29.27 |
||
|
16471
|
16471
16405-95703 Cap Sub-Assy, Reserve TankRESERVE TANK [01.1981 - 08.1985] 4KJ..KM2#..V |
16405-95703 |
US $11.79 |
||
|
16571
|
16571
16571-13050 Hose, Radiator, InletRADIATOR, INLET [10.1979 - 10.1982] 4KJ..KM20 |
16571-13050 |
US $25.92 |
||
| replacement | |||||
|
16571
|
16571
16571-13120 Hose, Radiator, InletRADIATOR, INLET [10.1979 - 10.1982] 4KJ..KM20 |
16571-13120 |
US $26.06 |
||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[10.1979 - 05.1980] 4KJ..KM20 OUTLET SIDE |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[10.1979 - 05.1980] 4KJ..KM20 OUTLET SIDE |
90467-37003 |
from US $4.56 |
||
|
16571A
|
16571A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[10.1979 - 05.1980] 4KJ..KM20 RADIATOR SIDE |
96111-10430 |
from US $2.15 |
||
|
16572
|
16572
16572-13030 Hose, Radiator, OutletRADIATOR, OUTLET [10.1979 - 09.1986] 4KJ..KM2# |
16572-13030 |
US $42.95 |
||
|
16572A
|
16572A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[10.1979 - 09.1986] 4KJ..KM2# ID=47; 13TU..TM20 ID=47 |
90460-47036 |
US $3.94 |
||
|
16701
|
16701
16711-27050 Shroud Sub-Assy, FanFAN [10.1979 - 09.1986] 4KJ..KM2# |
16711-27050 |
US $72.80 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.20 |
||
|
9161140822
|
9161140822
91611-40822
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40822 |
— | ||
| replacement | |||||
|
9161140822
|
9161140822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
