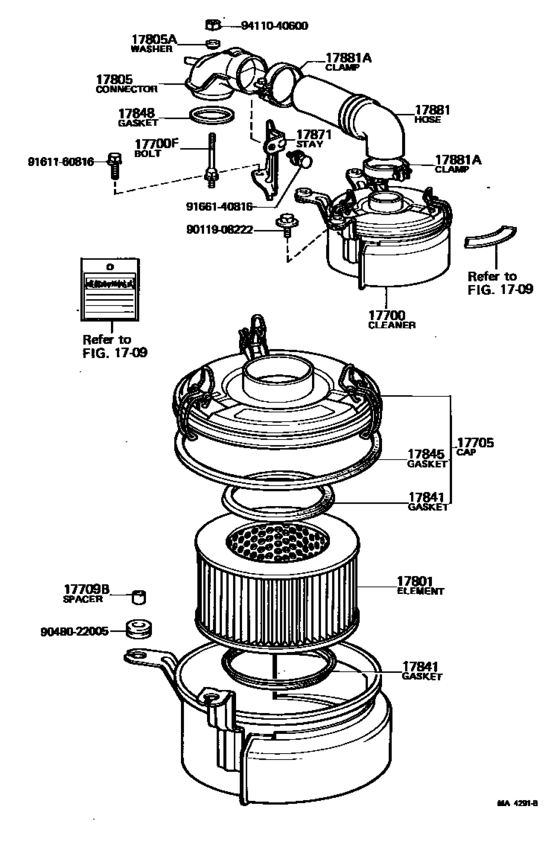

Air Cleaner ([10.1979 - 10.1982] (7910-8210)4KJ) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20V
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSP
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-13100
Cleaner Assy, Air
[10.1979 - 10.1982] 4KJ..KM20 |
17700-13100 |
— | ||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[10.1979 - 09.1986] 4KJ..KM2# L=80,S=12&28 |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-13020
Cap Sub-Assy, Air Cleaner
[10.1979 - 10.1982] 4KJ..KM20 |
17705-13020 |
— | ||
|
17709B
|
17709B
90560-08018 Spacer, Air Cleaner Inlet[10.1979 - 10.1982] 4KJ..KM20 |
90560-08018 |
US $2.91 |
||
|
17801
|
17801
17801-23020 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [10.1979 - 10.1982] 4KJ..KM20 |
17801-23020 |
US $12.06 |
||
|
17805
|
17805
17861-13020 Connector Sub-Assy, Intake AirINTAKE AIR [10.1979 - 10.1982] 4KJ..KM20 |
17861-13020 |
US $113.57 |
||
| replacement | |||||
|
17805
|
17805
17805-13040
Connector Sub-Assy, Intake Air
[10.1979 - 10.1982] 4KJ..KM20 |
17805-13040 |
— | ||
|
17805A
|
17805A
90210-06023
Washer, Seal(For Air Cleaner)
[10.1979 - 10.1982] 4KJ..KM20 |
90210-06023 |
— | ||
|
17841
|
17841
17841-24030 Gasket, Filter ElementFILTER ELEMENT [10.1979 - 10.1982] 4KJ..KM20 |
17841-24030 |
US $14.41 |
||
|
17845
|
17845
17845-24030
Gasket, Air Cleaner Cap
[10.1979 - 10.1982] 4KJ..KM20 |
17845-24030 |
— | ||
|
17848
|
17848
90430-63187
Gasket, Air Cleaner To Carburetor
[10.1979 - 10.1982] 4KJ..KM20 |
90430-63187 |
— | ||
|
17871
|
17871
17871-13010 Stay, Air Connector[10.1979 - 09.1986] 4KJ..KM2# |
17871-13010 |
US $33.92 |
||
| replacement | |||||
|
17871
|
17871
17313-13010
Stay, Air Connector
[10.1979 - 09.1986] 4KJ..KM2# |
17313-13010 |
— | ||
|
17881
|
17881
17881-13040 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1979 - 10.1982] 4KJ..KM20 |
17881-13040 |
US $65.67 |
||
|
17881A
|
17881A
90460-78001
Clamp(For Air Cleaner Hose, No.1)
[10.1979 - 11.1979] 4KJ..KM20 |
90460-78001 |
— | ||
|
17881A
|
17881A
90460-78002 Clamp(For Air Cleaner Hose, No.1)NO.1) [11.1979 - 10.1982] 4KJ..KM20 |
90460-78002 |
US $8.59 |
||
| replacement | |||||
|
17881A
|
17881A
90460-78006
Clamp(For Air Cleaner Hose, No.1)
[11.1979 - 10.1982] 4KJ..KM20 |
90460-78006 |
— | ||
|
9011908222
|
9011908222
90119-08222
New Genuine Part
|
90119-08222 |
— | ||
|
9048022005
|
9048022005
90480-22005 New Genuine Part |
90480-22005 |
US $4.95 |
||
| replacement | |||||
|
9048022005
|
9048022005
90480-22006 New Genuine Part |
90480-22006 |
US $3.14 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9166140816
|
9166140816
91661-40816
New Genuine Part
|
91661-40816 |
— | ||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
