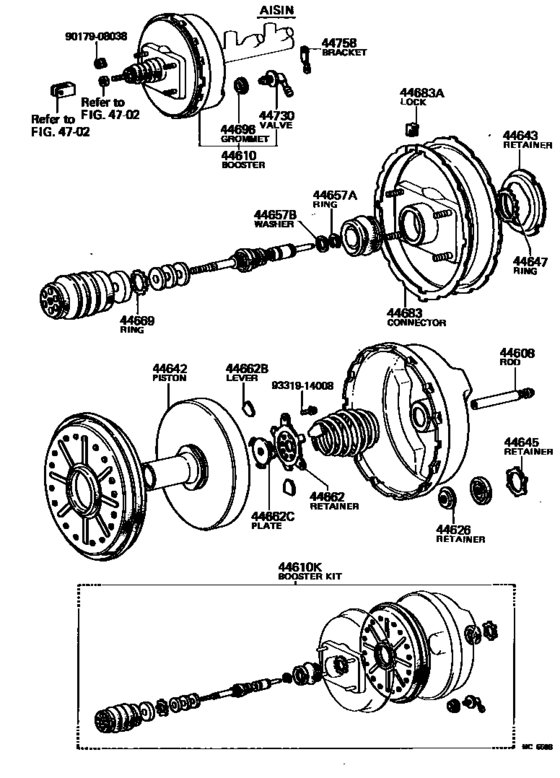

Brake Booster & Vacuum Tube ([10.1979 - 10.1982] (7910-8210)DLX,GXL,STD,SUP,XL) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20V
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSP
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44608
|
44608
44606-35100 Push Rod Sub-Assy, Booster[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44606-35100 |
US $12.23 |
||
|
44610
|
44610
44610-27050 Booster Assy, BrakeBRAKE [10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL FR DRUM BRAKE |
44610-27050 |
US $594.05 |
||
|
44610K
|
44610K
04443-12190
Booster Kit, Brake
[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
04443-12190 |
— | ||
|
44626
|
44626
44626-60010 Retainer, Booster Seal[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44626-60010 |
US $2.27 |
||
|
44642
|
44642
44642-14170 Piston, Brake Booster[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44642-14170 |
US $104.83 |
||
|
44643
|
44643
44643-60010 Retainer, Diaphragm[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44643-60010 |
US $8.30 |
||
|
44645
|
44645
44628-60010
Ring, Circular Internal
[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44628-60010 |
— | ||
|
44647
|
44647
44629-30090 Ring, Circular Internal[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44629-30090 |
US $3.93 |
||
|
44657A
|
44657A
96150-01600 Ring, Snap (For Shift & Select Lever Shaft)[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
96150-01600 |
US $3.67 |
||
|
44657B
|
44657B
44645-20100
Washer, Plate(For Booster Air Valve Stopper)
[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44645-20100 |
— | ||
|
44662
|
44662
44662-35100 Retainer, Reaction, No.1[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44662-35100 |
US $8.30 |
||
|
44662B
|
44662B
44661-35100
Lever, Reaction
[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44661-35100 |
— | ||
|
44662C
|
44662C
44607-27050
Plate, Reaction, No.1
[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL FR DRUM BRAKE |
44607-27050 |
— | ||
|
44669
|
44669
44669-60010 Ring, Circular Internal(For Air Cleaner Element Stopper)[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44669-60010 |
US $3.64 |
||
|
44683
|
44683
44682-20150
Connector, Booster Body
[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44682-20150 |
— | ||
|
44683A
|
44683A
44683-20100 Lock, Connector[10.1979 - 10.1982] KM20,TM20..DLX,GXL,STD,SUP,XL |
44683-20100 |
US $5.97 |
||
|
44696
|
44696
90480-24439 Grommet, Check Valve[10.1979 - 09.1986] KM2#,TM20,YM2# |
90480-24439 |
from US $2.57 |
||
|
44730
|
44730
44730-20060 Valve Assy, Vacuum Check(For Brake)[10.1979 - 09.1986] KM2#,TM20,YM2# |
44730-20060 |
US $36.68 |
||
|
44758
|
44758
44758-20051
Bracket, Vacuum Check Valve
[10.1979 - 10.1982] KM20,TM20 |
44758-20051 |
— | ||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.80 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
