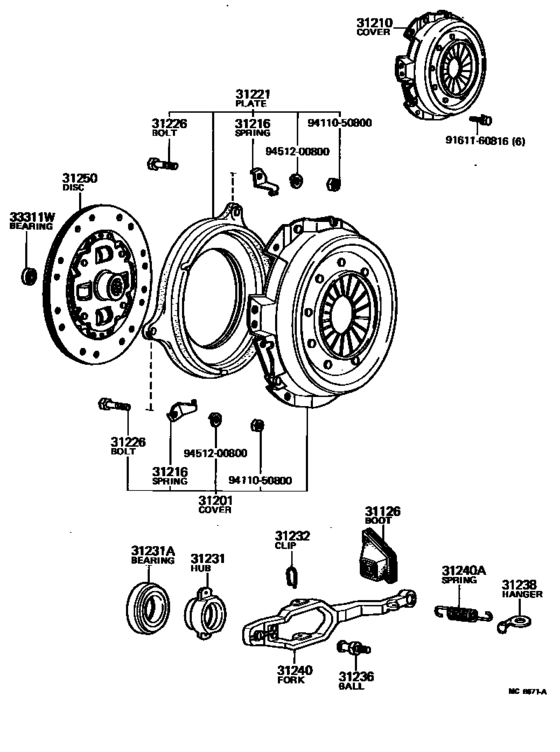

Clutch & Release Fork ([10.1979 - 10.1982] (7910-8210)KM20) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20V
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSP
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-27020
Boot, Clutch Release Fork
[10.1979 - 09.1986] KM2# |
31126-27020 |
— | ||
|
31201
|
31201
31201-29068 Cover Sub-Assy, ClutchCLUTCH [10.1979 - 01.1981] KM20 |
31201-29068 |
US $200.93 |
||
| replacement | |||||
|
31201
|
31201
31201-29105
Cover Sub-Assy, Clutch
[10.1979 - 01.1981] KM20 |
31201-29105 |
— | ||
|
31201
|
31201
31201-29105
Cover Sub-Assy, Clutch
[01.1981 - 10.1982] KM20 |
31201-29105 |
— | ||
|
31210
|
31210
31210-20092 Cover Assy, ClutchCLUTCH [10.1979 - 01.1981] KM20 |
31210-20092 |
US $177.63 |
||
| replacement | |||||
|
31210
|
31210
31210-20096
Cover Assy, Clutch
[10.1979 - 01.1981] KM20 |
31210-20096 |
— | ||
|
31210
|
31210
31210-20093 Cover Assy, ClutchCLUTCH [01.1981 - 10.1982] KM20 |
31210-20093 |
US $163.07 |
||
| replacement | |||||
|
31210
|
31210
31210-20096
Cover Assy, Clutch
[01.1981 - 10.1982] KM20 |
31210-20096 |
— | ||
|
31216
|
31216
31216-20020
Spring, Clutch Retracting
[10.1979 - 10.1982] KM20 |
31216-20020 |
— | ||
|
31221
|
31221
31221-29015 Plate, Clutch PressureCLUTCH PRESSURE [10.1979 - 10.1982] KM20 |
31221-29015 |
US $61.73 |
||
|
31226
|
31226
90101-08350
Bolt, Clutch Pressure Plate
[10.1979 - 08.1983] CM2#,KM20,TM20,YM2#..MTM |
90101-08350 |
— | ||
| replacement | |||||
|
31226
|
31226
90101-08022
Bolt, Clutch Pressure Plate
[10.1979 - 08.1983] CM2#,KM20,TM20,YM2#..MTM |
90101-08022 |
— | ||
|
31231
|
31231
31231-27012
Hub, Clutch Release Bearing
[10.1979 - 09.1980] KM20 |
31231-27012 |
— | ||
|
31231
|
31231
31231-27013 Hub, Clutch Release BearingCLUTCH RELEASE BEARING [09.1980 - 10.1982] KM20 |
31231-27013 |
US $19.07 |
||
|
31231A
|
31231A
90363-40005 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [10.1979 - 02.1980] KM20 |
90363-40005 |
US $40.04 |
||
| replacement | |||||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[10.1979 - 02.1980] KM20 |
90363-40022 |
from US $40.89 |
||
|
31231A
|
31231A
90363-40013 Bearing, Ball(For Clutch Release Hub)BALL(FOR CLUTCH RELEASE HUB) [02.1980 - 09.1980] KM20 |
90363-40013 |
US $40.04 |
||
| replacement | |||||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[02.1980 - 09.1980] KM20 |
90363-40022 |
from US $40.89 |
||
|
31231A
|
31231A
90363-40019
Bearing, Ball(For Clutch Release Hub)
[09.1980 - 10.1982] KM20 |
90363-40019 |
— | ||
| replacement | |||||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[09.1980 - 10.1982] KM20 |
90363-40022 |
from US $40.89 |
||
|
31232
|
31232
31232-30020 Clip Or Spring, Release Bearing Hub[10.1979 - 09.1986] KM2# |
31232-30020 |
US $3.06 |
||
|
31236
|
31236
31236-20020
Ball, Release Fork
[10.1979 - 07.1981] KM20,TM20..4F,4H |
31236-20020 |
— | ||
| replacement | |||||
|
31236
|
31236
31236-30060 Ball, Release Fork[10.1979 - 07.1981] KM20,TM20..4F,4H |
31236-30060 |
from US $10.24 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[07.1981 - 10.1982] KM20,TM20..4F,4H |
31236-30060 |
from US $10.24 |
||
|
31238
|
31238
31238-27010 Hanger, Release Fork Retracting Spring[10.1979 - 09.1986] KM2# |
31238-27010 |
US $7.28 |
||
|
31240
|
31240
31204-27010
Fork Assy, Clutch Release
[10.1979 - 09.1980] KM20 |
31204-27010 |
— | ||
|
31240
|
31240
31204-27011 Fork Sub-Assy, Clutch Release[09.1980 - 09.1986] KM2# |
31204-27011 |
US $28.83 |
||
|
31240A
|
31240A
90506-18311 Spring, Tension(For Clutch Release Fork Return)[10.1979 - 09.1986] KM2# |
90506-18311 |
US $3.64 |
||
|
31250
|
31250
31250-27023 Disc Assy, ClutchCLUTCH [10.1979 - 07.1981] KM20 |
31250-27023 |
US $136.86 |
||
| replacement | |||||
|
31250
|
31250
31250-28142 Disc Assy, Clutch[10.1979 - 07.1981] KM20 |
31250-28142 |
US $97.84 |
||
|
31250
|
31250
31250-27024
Disc Assy, Clutch
[07.1981 - 12.1983] KM2# |
31250-27024 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-28142 Disc Assy, Clutch[07.1981 - 12.1983] KM2# |
31250-28142 |
US $97.84 |
||
|
33311W
|
33311W
90363-12003 Bearing, Radial Ball(For Crankshaft)[10.1980 - 09.1986] KM2#,TM20 |
90363-12003 |
from US $11.52 |
||
|
33311W
|
33311W
97123-06001 Bearing (For Input Shaft)[10.1979 - 10.1980] KM20,TM20 6001 ZZ C3 |
97123-06001 |
US $8.12 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
