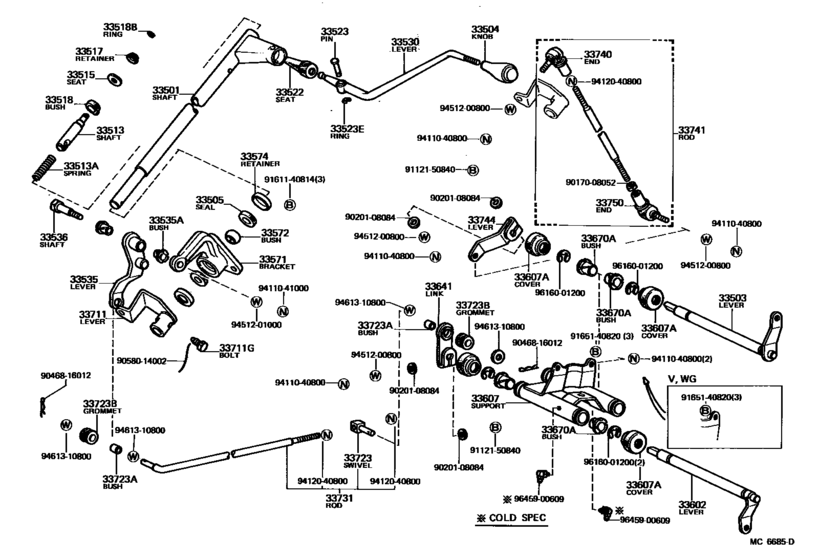

Control Shaft & Crossshaft ([10.1979 - 10.1982] (7910-8210)4H) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20V
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSP
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501
|
33501
33501-27050
Shaft Sub-Assy, Control (For Column Shift)
[10.1979 - 10.1982] KM20,TM20..4H |
33501-27050 |
— | ||
|
33503
|
33503
33503-27020 Lever Sub-Assy, Shift(For Column Shift)SHIFT(FOR COLUMN SHIFT) [10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33503-27020 |
US $23.88 |
||
|
33504
|
33504
33504-30110 Knob Sub-Assy, Shift Lever (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33504-30110 |
from US $10.74 |
||
|
33505
|
33505
90303-17005 Seal Sub-Assy, Control Shaft Dust (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90303-17005 |
US $2.51 |
||
|
33513
|
33513
33513-36020
Shaft, Control Shaft Bracket, Upper
[10.1979 - 09.1986] KM2#,TM20,YM25..4H |
33513-36020 |
— | ||
|
33513A
|
33513A
90501-14395 Spring, Compression (For Bracket Upper Shaft)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90501-14395 |
US $2.97 |
||
|
33515
|
33515
33515-30010 Seat, Control Shaft Upper[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33515-30010 |
US $5.73 |
||
|
33517
|
33517
33517-30010 Retainer, Control Shaft Upper Spring[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33517-30010 |
US $4.66 |
||
|
33518
|
33518
33518-36010
Bush, Upper Control Shaft Piece
[10.1979 - 10.1982] KM20,TM20..4H |
33518-36010 |
— | ||
| replacement | |||||
|
33518
|
33518
33518-35010 Bush, Upper Control Shaft Piece[10.1979 - 10.1982] KM20,TM20..4H |
33518-35010 |
US $12.54 |
||
|
33518B
|
33518B
90523-06019 Ring, E (For Upper Control Shaft Piece Bush)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90523-06019 |
US $3.94 |
||
|
33522
|
33522
33522-35010
Seat, Shift Lever Plate (For Column Shift)
[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33522-35010 |
— | ||
|
33523
|
33523
90249-07001 Pin, Shift Lever (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90249-07001 |
US $3.14 |
||
|
33523E
|
33523E
96160-00500 Ring, E(For Over Center Lever)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
96160-00500 |
from US $1.01 |
||
|
33530
|
33530
33541-27050 Lever Assy, Shift (For Column Shift)SHIFT (FOR COLUMN SHIFT) [10.1979 - 10.1982] KM20,TM20..4H |
33541-27050 |
US $29.85 |
||
|
33535
|
33535
33535-27030 Lever, Control Select (For Column Shift)CONTROL SELECT (FOR COLUMN SHIFT) [10.1979 - 10.1982] KM20,TM20..4H |
33535-27030 |
US $32.32 |
||
|
33535A
|
33535A
90386-13007 Bush(For Clutch Pedal)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90386-13007 |
from US $2.48 |
||
|
33536
|
33536
33536-25010 Shaft, Control Select Lever (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33536-25010 |
US $9.61 |
||
|
33571
|
33571
33571-26012 Bracket, Control Shaft, Lower (For Column Shift)[10.1979 - 10.1982] KM20,TM20..4H |
33571-26012 |
US $30.58 |
||
|
33572
|
33572
33572-36010 Bush, Control Shaft Lower (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33572-36010 |
from US $5.93 |
||
|
33574
|
33574
33574-25010 Retainer, Dust Seal (For Column Shift Control Shaft)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33574-25010 |
US $4.66 |
||
|
33602
|
33602
33602-27020
Lever Sub-Assy, Select (For Column Shift)
[10.1979 - 10.1982] KM20,TM20..4H |
33602-27020 |
— | ||
|
33607
|
33607
33607-27030 Support Sub-Assy, Control Rod (For Column Shift)CONTROL ROD (FOR COLUMN SHIFT) [10.1979 - 10.1982] KM20,TM20..(HRF,SRF)..4H |
33607-27030 |
US $44.84 |
||
|
33607
|
33607
33607-27050 Support Sub-Assy, Control Rod (For Column Shift)CONTROL ROD (FOR COLUMN SHIFT) [10.1979 - 10.1982] KM20,TM20..(HRF,SRF)..4H COLD SPEC |
33607-27050 |
US $44.70 |
||
|
33607A
|
33607A
33775-28020 Cover, Dust (For Control Support)DUST (FOR CONTROL SUPPORT) [10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33775-28020 |
US $12.23 |
||
|
33641
|
33641
33641-27020
Link, Selecting (For Column Shift)
[10.1979 - 10.1982] KM20,TM20..4H |
33641-27020 |
— | ||
|
33670A
|
33670A
90386-15082
Bush (For Control Rod Support)
[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90386-15082 |
— | ||
|
33711
|
33711
33527-26030 Lever, Control Shaft (For Column Shift)CONTROL SHAFT (FOR COLUMN SHIFT) [10.1979 - 10.1982] KM20,TM20..4H |
33527-26030 |
US $30.72 |
||
|
33711G
|
33711G
33218-35010 Bolt, Shift Lever Lock[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33218-35010 |
US $4.72 |
||
|
33723
|
33723
33723-10020 Swivel, Connecting Rod (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33723-10020 |
US $9.78 |
||
|
33723A
|
33723A
90389-08005 Bushing(For Gear Selecting Rod)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90389-08005 |
from US $1.77 |
||
|
33723B
|
33723B
90480-17177 Grommet (For Transmission Control Rod)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
90480-17177 |
from US $2.07 |
||
|
33731
|
33731
33720-27020
Rod, Gear Selecting, No.1 (For Column Shift)
[10.1979 - 10.1982] KM20,TM20..4H |
33720-27020 |
— | ||
|
33740
|
33740
33740-35011
End Assy, Connecting Rod, No.1(For Column Shift)
[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33740-35011 |
— | ||
| replacement | |||||
|
33740
|
33740
33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33740-26010 |
from US $13.40 |
||
|
33741
|
33741
33710-27020 Rod, Gear Shifting, No.1 (For Column Shift)GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) [10.1979 - 10.1982] KM20,TM20..4H |
33710-27020 |
US $40.91 |
||
| replacement | |||||
|
33741
|
33741
33710-26H91 Rod, Gear Shifting, No.1 (For Column Shift)[10.1979 - 10.1982] KM20,TM20..4H |
33710-26H91 |
US $38.29 |
||
|
33744
|
33744
33744-27020 Lever, Gear Shifting, No.1 (For Column Shift)GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) [10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33744-27020 |
US $9.32 |
||
|
33750
|
33750
33750-35011
End, Connecting Rod, No.2 (For Column Shift)
[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33750-35011 |
— | ||
| replacement | |||||
|
33750
|
33750
33750-26010 End, Connecting Rod, No.2 (For Column Shift)[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2#..4H,5H |
33750-26010 |
from US $11.28 |
||
|
9017008052
|
9017008052
90170-08052 Nut, Hexagon (For Column Shift Selecting Or Shifting Rod) |
90170-08052 |
US $0.87 |
||
|
9020108084
|
9020108084
90201-08084 New Genuine Part |
90201-08084 |
US $3.23 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.90 |
||
|
9058014002
|
9058014002
90580-14002
Wire(For Shift Lever Lock Bolt)
|
90580-14002 |
— | ||
|
9112150840
|
9112150840
91121-50840 New Genuine Part |
91121-50840 |
US $2.77 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.54 |
||
|
9645900609
|
9645900609
96459-00609 Fitting, Grease |
96459-00609 |
from US $2.16 |
||
