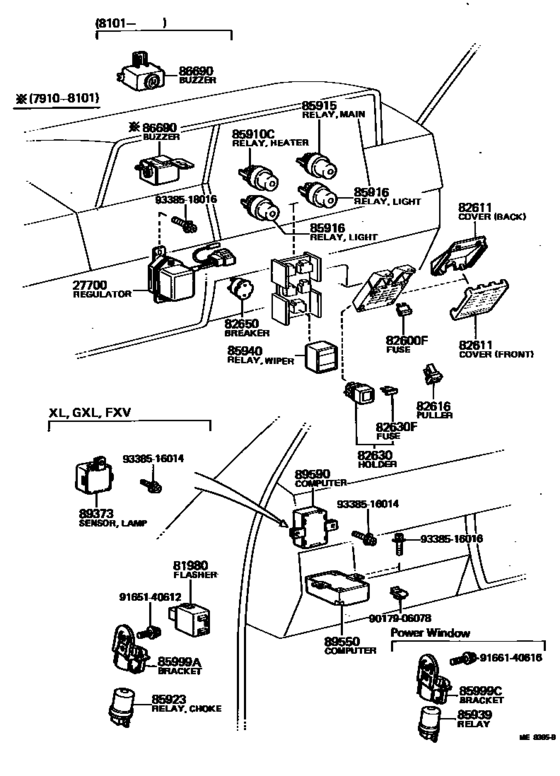

Switch & Relay & Computer ([10.1979 - 10.1982] (7910-8210)) Diagram Toyota LITE/ TOWNACE
- Year
- 1979 - 1982
- Sales region
- Japan
- Frame
- KM20V
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1979
- To
- 10.1982
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Side Window
- VSP
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27700
|
27700
27700-13040
Regulator Assy, Generator
[10.1979 - 08.1985] 13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2# |
27700-13040 |
— | ||
|
81980
|
81980
81980-22060 Flasher Assy, Turn Signal[10.1979 - 11.1981] KM20,TM20 |
81980-22060 |
US $110.66 |
||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[10.1979 - 11.1981] KM20,TM20 |
81980-16010 |
US $134.48 |
||
|
81980
|
81980
81980-22070
Flasher Assy, Turn Signal
[11.1981 - 04.1986] CM2#,KM2#,TM20,YM2# |
81980-22070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-16010 Flasher Assy, Turn Signal[11.1981 - 04.1986] CM2#,KM2#,TM20,YM2# |
81980-16010 |
US $134.48 |
||
|
82600F
|
82600F
90982-09001 Fuse, Fuse Block[10.1979 - 10.1982] KM20,TM20 ５Ａ,5A |
90982-09001 |
US $1.05 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[10.1979 -] CM20,25,KM2#,TM20,YM2# １０Ａ,10A |
90982-09002 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[10.1979 -] CM2#,KM2#,TM20,YM2# １５Ａ,15A |
90982-09003 |
from US $0.90 |
||
|
82611
|
82611
82611-95701 Cover, Fuse BlockFUSE BLOCK [10.1979 - 01.1981] KM20,TM20..HRF,SRF FR |
82611-95701 |
US $16.74 |
||
|
82611
|
82611
82611-95702 Cover, Fuse BlockFUSE BLOCK [01.1981 - 10.1982] KM20..V FR |
82611-95702 |
US $9.17 |
||
|
82611
|
82611
82612-95701
Cover, Fuse Block
[10.1979 - 10.1982] KM20,TM20 BACK |
82612-95701 |
— | ||
|
82616
|
82616
82616-12010 Lever, Fuse[10.1979 -] CM2#,KM2#,TM20,YM2# |
82616-12010 |
US $3.40 |
||
|
85910C
|
85910C
90987-02001 Relay Assy (For Heater Blower Motor)[10.1979 - 04.1980] KM20,TM20 |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
85910C
|
85910C
90999-99089 Relay Assy (For Heater Blower Motor)[10.1979 - 04.1980] KM20,TM20 |
90999-99089 |
US $26.05 |
||
|
85910C
|
85910C
90987-02004 Relay Assy, Starter[04.1980 - 10.1982] KM20,TM20 |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85910C
|
85910C
909870200483 [04.1980 - 10.1982] KM20,TM20 |
909870200483 |
US $53.75 |
||
|
85915
|
85915
90987-02001 Relay Assy (For Heater Blower Motor)[10.1979 - 04.1980] KM20,TM20 |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
85915
|
85915
90999-99089 Relay Assy (For Heater Blower Motor)[10.1979 - 04.1980] KM20,TM20 |
90999-99089 |
US $26.05 |
||
|
85915
|
85915
90987-02004 Relay Assy, Starter[04.1980 -] CM2#,KM2#,TM20,YM2# |
90987-02004 |
from US $28.10 |
||
| replacement | |||||
|
85915
|
85915
909870200483 [04.1980 -] CM2#,KM2#,TM20,YM2# |
909870200483 |
US $53.75 |
||
|
85916
|
85916
90987-01001
Relay, Fuel Lid Opener
[10.1979 - 04.1980] KM20,TM20 |
90987-01001 |
— | ||
| replacement | |||||
|
85916
|
85916
90999-99088
Relay, Fuel Lid Opener
[10.1979 - 04.1980] KM20,TM20 |
90999-99088 |
— | ||
|
85916
|
85916
90987-01003 Relay, Fuel Lid Opener[04.1980 -] CM2#,KM2#,TM20,YM2# |
90987-01003 |
from US $35.65 |
||
|
85923
|
85923
90987-02001 Relay Assy (For Heater Blower Motor)[10.1979 - 03.1980] KM20,TM20 |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
85923
|
85923
90999-99089 Relay Assy (For Heater Blower Motor)[10.1979 - 03.1980] KM20,TM20 |
90999-99089 |
US $26.05 |
||
|
85999A
|
85999A
85999-26010
Bracket, Combination Relay
[10.1979 - 03.1980] KM20,TM20 |
85999-26010 |
— | ||
|
86690
|
86690
86650-30040 Buzzer Assy, Speed Indicator[01.1981 - 10.1982] KM20,TM20 |
86650-30040 |
US $36.69 |
||
| replacement | |||||
|
86690
|
86690
86650-87003 Buzzer Assy, Speed Indicator[01.1981 - 10.1982] KM20,TM20 |
86650-87003 |
US $36.55 |
||
|
86690
|
86690
86650-95010 Chime, Speed Warning[10.1979 - 01.1981] KM20,TM20 |
86650-95010 |
US $18.93 |
||
| replacement | |||||
|
86690
|
86690
86650-28010
Buzzer Assy
[10.1979 - 01.1981] KM20,TM20 |
86650-28010 |
— | ||
|
9017906078
|
9017906078
90179-06078 New Genuine Part |
90179-06078 |
US $1.05 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
