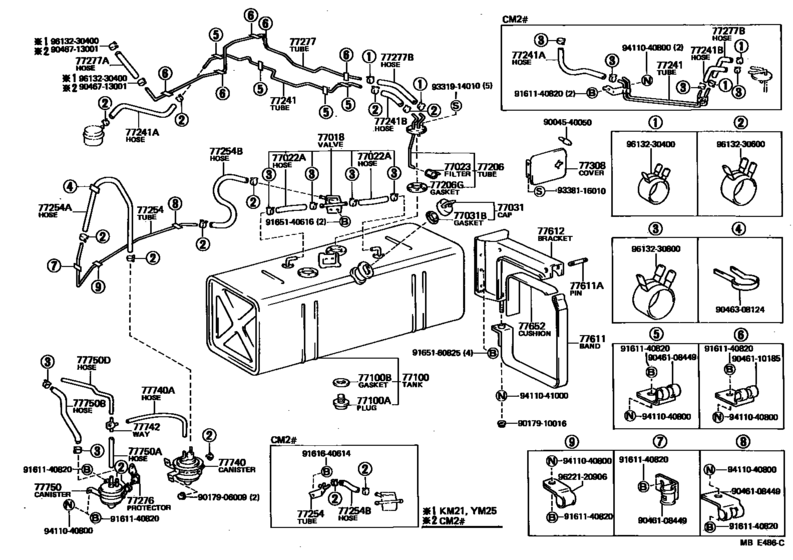

Fuel Tank & Tube ([10.1982 - ] (8210- )TR) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- KM21
- grade
- DLX
- body
- TR
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- DECK
- T1
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 09.1986
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- IV
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77018
|
77018
77018-27010 Valve Sub-Assy, Fuel Vapour SeparateFUEL VAPOUR SEPARATE [10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
77018-27010 |
US $40.77 |
||
|
77022A
|
77022A
95332-08020
Hose, Fuel Pipe, No.1
[10.1979 - 09.1986] CM2#,KM2#,YM25..TR ＊Ｈ，Ｌ＝１３０，内径＝８ |
95332-08020 |
— | ||
| replacement | |||||
|
77022A
|
77022A
95337-08020 Hose, Fuel(For Fuel Evaporative Separator)FUEL, NO.1(FOR RETURN TUBE, NO.1) [10.1979 - 09.1986] CM2#,KM2#,YM25..TR ＊Ｈ，Ｌ＝１３０，内径＝８ |
95337-08020 |
from US $5.56 |
||
|
77023
|
77023
77023-12050 Filter Sub-Assy, Fuel Suction Tube[10.1982 - 09.1986] KM21,YM2# |
77023-12050 |
US $16.49 |
||
|
77100
|
77100
77001-27041 Tank Assy, FuelFUEL [09.1982 - 09.1986] CM2#,KM21,YM25..TR |
77001-27041 |
US $429.52 |
||
|
77100A
|
77100A
90341-20003
Plug(For Fuel Tank)
[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
90341-20003 |
— | ||
| replacement | |||||
|
77100A
|
77100A
90341-20004 Plug(For Fuel Tank)[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
90341-20004 |
US $6.45 |
||
|
77100B
|
77100B
90430-20006
Gasket(For Fuel Tank)
[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
90430-20006 |
— | ||
|
77206
|
77206
77017-27070 Tube Sub-Assy, Fuel Tank SuctionFUEL TANK SUCTION [10.1982 - 09.1986] KM21,YM25..TR |
77017-27070 |
US $41.50 |
||
|
77206G
|
77206G
77169-14020 Gasket, Fuel Tank Vent[10.1982 - 09.1986] CM2#,KM21,YM2# |
77169-14020 |
from US $3.28 |
||
|
77241
|
77241
77251-27031
Tube, Fuel Main, No.1
[10.1982 - 09.1986] KM21,YM25..TR |
77251-27031 |
— | ||
|
77241A
|
77241A
95332-06030
Hose(For Carburetor)
[10.1982 - 09.1986] KM21,YM25..TR ＊Ｈ，Ｌ＝２６０ |
95332-06030 |
— | ||
| replacement | |||||
|
77241A
|
77241A
95333-06030
Hose, Fuel
[10.1982 - 09.1986] KM21,YM25..TR ＊Ｈ，Ｌ＝２６０ |
95333-06030 |
— | ||
|
77241B
|
77241B
95332-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[10.1982 - 09.1986] KM21..T3 ＊Ｈ，Ｌ＝１８０; KM21,YM25..T1,T2 ＊Ｈ，Ｌ＝１４０ |
95332-06020 |
— | ||
| replacement | |||||
|
77241B
|
77241B
95337-06020 Hose, Differential Pressure Control[10.1982 - 09.1986] KM21..T3 ＊Ｈ，Ｌ＝１８０; KM21,YM25..T1,T2 ＊Ｈ，Ｌ＝１４０ |
95337-06020 |
from US $10.21 |
||
|
77254
|
77254
77263-27012
Tube, Fuel Emission, No.1
[10.1982 - 09.1986] KM21,YM25..TR |
77263-27012 |
— | ||
|
77254A
|
77254A
90445-12042 Hose, Fuel, No.1 (For Emission Tube, No.1)[12.1979 - 09.1986] KM2#,YM25..TR L=520 |
90445-12042 |
US $13.25 |
||
| replacement | |||||
|
77254A
|
77254A
90445-12170 Hose, Fuel, No.2 (For Emission Tube, No.1)[12.1979 - 09.1986] KM2#,YM25..TR L=520 |
90445-12170 |
US $12.52 |
||
|
77254B
|
77254B
77209-27010
Hose, Fuel, No.2 (For Emission Tube, No.1)
[01.1986 - 09.1986] KM21,YM25 |
77209-27010 |
— | ||
|
77254B
|
77254B
95332-06040
Hose(For Valve To Timing Gear)
[10.1979 - 01.1986] KM2#,YM25..TR ＊Ｈ，Ｌ＝３８０ |
95332-06040 |
— | ||
| replacement | |||||
|
77254B
|
77254B
95333-06040 Hose[10.1979 - 01.1986] KM2#,YM25..TR ＊Ｈ，Ｌ＝３８０ |
95333-06040 |
from US $13.08 |
||
|
77276
|
77276
77276-27030
Protector, Fuel Hose
[10.1982 - 09.1986] KM21,YM25..TR |
77276-27030 |
— | ||
|
77277
|
77277
77255-27090
Tube, Fuel Return, No.1
[10.1982 - 09.1986] KM21,YM25..TR |
77255-27090 |
— | ||
|
77277A
|
77277A
95332-04040 Hose(For Fuel Pump To Fuel Tube)[10.1982 - 09.1986] KM21..TR ＊Ｈ，Ｌ＝３８０ |
95332-04040 |
US $9.03 |
||
| replacement | |||||
|
77277A
|
77277A
95333-04040 Hose(For Fuel Pump To Fuel Tube)[10.1982 - 09.1986] KM21..TR ＊Ｈ，Ｌ＝３８０ |
95333-04040 |
US $8.37 |
||
|
77277B
|
77277B
95332-04030
Hose, No.2(For Lpg Regulator To Lpg Carburetor)
[10.1982 - 09.1986] KM21..T3 ＊Ｈ，Ｌ＝２６０; KM21,YM25..T1,T2 ＊Ｈ，Ｌ＝２４０ |
95332-04030 |
— | ||
| replacement | |||||
|
77277B
|
77277B
95333-04030 Hose, No.2(For Lpg Regulator To Lpg Carburetor)[10.1982 - 09.1986] KM21..T3 ＊Ｈ，Ｌ＝２６０; KM21,YM25..T1,T2 ＊Ｈ，Ｌ＝２４０ |
95333-04030 |
US $8.56 |
||
|
77308
|
77308
77350-87401
Cover Sub-Assy, Fuel Inlet Box
[10.1979 - 09.1986] KM2#..T1 |
77350-87401 |
— | ||
|
77611
|
77611
77601-27011 Band Sub-Assy, Fuel Tank, No.1[10.1982 - 09.1986] CM2#,KM21,YM25..TR |
77601-27011 |
US $29.70 |
||
|
77611A
|
77611A
77629-25010
Pin (For Fuel Tank Band)
[10.1979 - 09.1986] CM2#,KM2#,TM20,YM2# |
77629-25010 |
— | ||
|
77612
|
77612
77501-27010
Bracket Sub-Assy, Fuel Tank
[10.1979 - 09.1986] CM2#,KM2#,YM25..T1,T2 |
77501-27010 |
— | ||
|
77652
|
77652
77651-27010 Cushion, Fuel Tank, No.1FUEL TANK, NO.1 [10.1979 - 11.1982] CM2#,KM2#,YM25..TR |
77651-27010 |
US $9.90 |
||
| replacement | |||||
|
77652
|
77652
77651-27110 Packing, Fuel Tank Bracket[10.1979 - 11.1982] CM2#,KM2#,YM25..TR |
77651-27110 |
US $9.90 |
||
|
77652
|
77652
77651-27110 Packing, Fuel Tank Bracket[11.1982 - 09.1986] CM2#,KM21,YM25..TR |
77651-27110 |
US $9.90 |
||
|
77740
|
77740
77740-27140
Canister Assy, Charcoal
[10.1982 - 09.1986] KM21..TR |
77740-27140 |
— | ||
|
77740A
|
77740A
95411-19930
Hose(For Carburetor To Manifold)
[10.1982 - 09.1986] KM21..TR ＊Ｈ，Ｌ＝１００，マーク＝＃＊ |
95411-19930 |
— | ||
| replacement | |||||
|
77740A
|
77740A
90999-92002
Air Hose (300 mm)
[10.1982 - 09.1986] KM21..TR ＊Ｈ，Ｌ＝１００，マーク＝＃＊ |
90999-92002 |
— | ||
|
77750
|
77750
77740-27100 Canister Assy, CharcoalCHARCOAL [10.1982 -] KM21..TR |
77740-27100 |
US $122.30 |
||
|
77750A
|
77750A
95411-19930
Hose(For Carburetor To Manifold)
[10.1982 - 09.1986] KM21..TR ＊Ｈ，Ｌ＝３００，マーク＝＃＊ |
95411-19930 |
— | ||
| replacement | |||||
|
77750A
|
77750A
90999-92002
Air Hose (300 mm)
[10.1982 - 09.1986] KM21..TR ＊Ｈ，Ｌ＝３００，マーク＝＃＊ |
90999-92002 |
— | ||
|
77750D
|
77750D
95411-19930
Hose(For Carburetor To Manifold)
[10.1982 - 09.1986] KM21 ＊Ｈ，Ｌ＝３００，マーク＝＃＊ |
95411-19930 |
— | ||
| replacement | |||||
|
77750D
|
77750D
90999-92002
Air Hose (300 mm)
[10.1982 - 09.1986] KM21 ＊Ｈ，Ｌ＝３００，マーク＝＃＊ |
90999-92002 |
— | ||
|
9004540050
|
9004540050
90045-40050 Cushion(For Fuel Inlet Box Cover) |
90045-40050 |
US $3.79 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9046108449
|
9046108449
90461-08449 New Genuine Part |
90461-08449 |
US $4.66 |
||
|
9046110185
|
9046110185
90461-10185 Clamp, Brake Tube, No.3 |
90461-10185 |
US $5.24 |
||
|
9046308124
|
9046308124
90463-08124
Clamp(For Oil Pipe)
|
90463-08124 |
— | ||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9338116010
|
9338116010
93381-16010 New Genuine Part |
93381-16010 |
US $1.38 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9622120906
|
9622120906
96221-20906
New Genuine Part
|
96221-20906 |
— | ||
