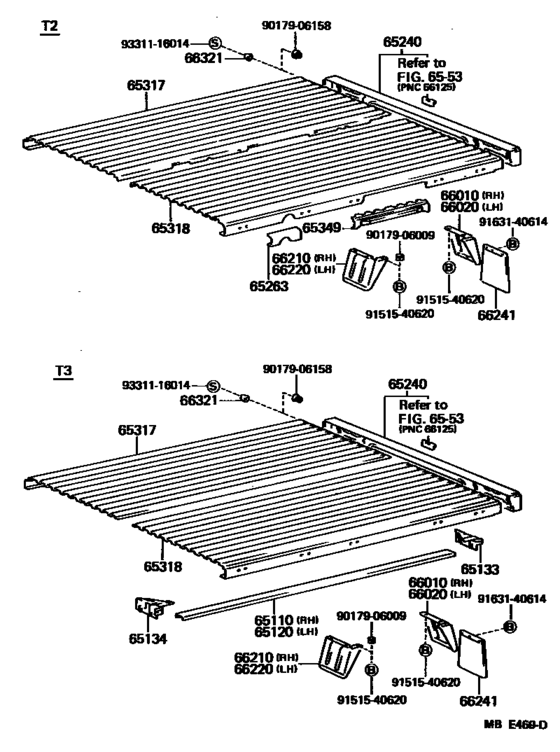

Rear Body Floor & Fender ([10.1982 - ] (8210- )T2,T3) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- KM21
- grade
- DLX
- body
- TR
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- DECK
- T3
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 09.1986
- Gear Shift Type
- 4H
- Seating Capacity
- 03S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Deck(Material)
- TS
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65110
|
65110
65110-95700
Sill Assy, Main, Rh
[10.1982 - 09.1986] KM21..T3 |
65110-95700 |
— | ||
|
65120
|
65120
65120-95700
Sill Assy, Main, Lh
[10.1982 - 09.1986] KM21..T3 |
65120-95700 |
— | ||
|
65133
|
65133
65133-95700 Reinforcement, Main Sill End, No.1[10.1982 - 09.1986] KM21..T3 |
65133-95700 |
US $32.91 |
||
|
65134
|
65134
65134-95700 Reinforcement, Main Sill End, No.2[10.1982 - 09.1986] KM21..T3 |
65134-95700 |
US $32.91 |
||
|
65240
|
65240
65240-95701 Crossmember, Rear Body Floor, Tail[10.1982 - 09.1986] CM20,KM21..(T2,T3)..TS |
65240-95701 |
US $275.18 |
||
|
65317
|
65317
65317-95700
Panel, Floor Side, Rh
[10.1982 - 09.1986] KM21..T3 |
65317-95700 |
— | ||
|
65318
|
65318
65318-95700
Panel, Floor Side, Lh
[10.1982 - 09.1986] KM21..T3 |
65318-95700 |
— | ||
|
66010
|
66010
66210-95701 Fender Assy, Rear Body, Rear RhREAR BODY, REAR RH [10.1982 - 09.1986] CM20,KM21..T3 |
66210-95701 |
US $44.55 |
||
|
66020
|
66020
66220-95701 Fender Assy, Rear Body, Rear LhREAR BODY, REAR LH [10.1982 - 09.1986] CM20,KM21..T3 |
66220-95701 |
US $44.55 |
||
|
66210
|
66210
66010-95701 Fender Assy, Rear Body, Front RhREAR BODY, FRONT RH [10.1982 - 09.1986] CM20,KM21..T3 |
66010-95701 |
US $39.60 |
||
|
66220
|
66220
66020-95701 Fender Assy, Rear Body, Front LhREAR BODY, FRONT LH [10.1982 - 09.1986] CM20,KM21..T3 |
66020-95701 |
US $39.60 |
||
|
66241
|
66241
66241-95600 Baffle Assy, Rear FenderRUBBER [10.1979 - 09.1986] CM20,KM2#..T3 |
66241-95600 |
US $18.05 |
||
|
66321
|
66321
66303-87403 Bumper, Tail Gate[10.1979 - 09.1986] CM2#,KM2#,YM25..TR |
66303-87403 |
US $8.60 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9151540620
|
9151540620
91515-40620 New Genuine Part |
91515-40620 |
US $2.18 |
||
| replacement | |||||
|
9151540620
|
9151540620
91511-40616 New Genuine Part |
91511-40616 |
US $2.15 |
||
|
9163140614
|
9163140614
91631-40614 БОЛТ BOLT |
91631-40614 |
US $1.43 |
||
|
9331116014
|
9331116014
93311-16014 Screw |
93311-16014 |
US $1.25 |
||
