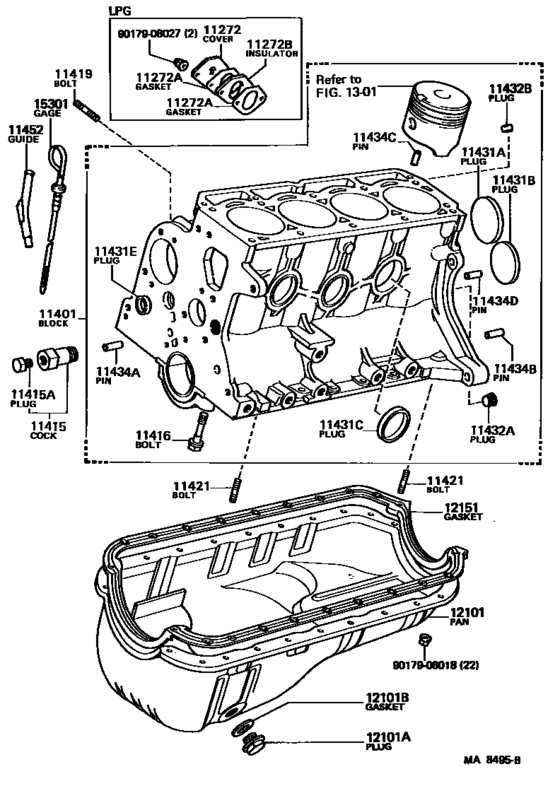

Cylinder Block ([10.1986 - ] (8610- )4K,5K) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11272
|
11272
11187-63020 Cover, Camshaft Housing, Rear[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
11187-63020 |
US $6.70 |
||
|
11272A
|
11272A
90923-05006
Gasket, Cylinder Block Side Cover, No.2
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
90923-05006 |
— | ||
| replacement | |||||
|
11272A
|
11272A
90923-05021 Gasket, Fuel Pump[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
90923-05021 |
US $4.48 |
||
|
11272B
|
11272B
90923-06003
Insulator, Cylinder Block Side Cover
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
90923-06003 |
— | ||
| replacement | |||||
|
11272B
|
11272B
90923-06015 Insulator, Cylinder Block Side Cover[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
90923-06015 |
US $4.89 |
||
|
11272B
|
11272B
90923-06015 Insulator, Cylinder Block Side Cover[03.1990 - 08.1990] 4K..KM50..3SO..CBU |
90923-06015 |
US $4.89 |
||
|
11401
|
11401
11401-19038 Block Sub-Assy, Cylinder[10.1986 - 08.1990] 4K..KM50 |
11401-19038 |
US $2,256.80 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[10.1986 - 04.1995] 4K,5K..KM5# |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[10.1986 - 04.1995] 4K,5K..KM5# |
96432-23814 |
— | ||
|
11416
|
11416
90910-02019 Bolt(For Crankshaft Bearing Cap Set)[10.1986 - 11.1987] 4K,5K..KM5# *10-1.25PX55-18 |
90910-02019 |
US $3.03 |
||
|
11419
|
11419
90116-08102 Bolt, Stud(For Fuel Pump)[10.1986 - 11.1987] 4K,5K..KM5# L=37,S=10&21 |
90116-08102 |
US $2.91 |
||
|
11421
|
11421
90116-06006 Bolt, Stud(For Timing Gear Cover)[10.1986 - 11.1987] 4K,5K..KM5# L=26.4,S=12&12 |
90116-06006 |
US $2.62 |
||
|
11431A
|
11431A
90331-47025 Plug, Tight, No.1(For Cylinder Block)[10.1986 -] 4K,5K..KM5# |
90331-47025 |
US $2.89 |
||
|
11431B
|
11431B
96411-44500 Plug, Tight, No.4[10.1986 - 10.1996] 4K,5K..KM5# |
96411-44500 |
from US $3.30 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[10.1986 - 10.1996] 4K,5K..KM5# |
96411-43500 |
from US $3.59 |
||
|
11431E
|
11431E
96412-01800 Plug, Tight, No.5(For Cylinder Block)[10.1986 - 11.1987] 4K,5K..KM5# OD=18 |
96412-01800 |
US $1.05 |
||
|
11432A
|
11432A
90344-53011 Plug, W/head Taper Screw, No.1[10.1986 -] 4K,5K..KM5# |
90344-53011 |
US $4.30 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[10.1986 - 11.1987] 4K,5K..KM5# 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[10.1986 - 11.1987] 4K,5K..KM5# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10113 |
from US $1.17 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[10.1986 -] 4K,5K..KM5# 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.01 |
||
|
11434D
|
11434D
90250-08120 Pin, Straight, No.1[10.1986 -] 4K,5K..KM5# 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.01 |
||
|
11452
|
11452
11452-13030 Guide, Oil Level Gage[10.1986 -] 4K,5K..KM5# |
11452-13030 |
US $14.71 |
||
|
12101
|
12101
12101-13030 Pan Sub-Assy, Oil[10.1986 - 10.1989] 4K..KM50;5K..KM51..3HC |
12101-13030 |
US $147.06 |
||
|
12101
|
12101
12101-13050 Pan Sub-Assy, Oil[10.1986 - 11.1987] 4K..KM50 ｱﾘ(ﾎﾂﾄｴｱ ｲﾝﾃ-ｸ) |
12101-13050 |
US $141.23 |
||
|
12101
|
12101
12101-13070 Pan Sub-Assy, Oil[10.1989 -] 4K,5K..KM5# |
12101-13070 |
US $141.23 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[10.1986 -] 4K,5K..KM5#; 2Y..YM55,6# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[10.1986 -] 4K,5K..KM5#; 2Y..YM55,6# |
90341-T0004 |
US $3.59 |
||
|
12101B
|
12101B
90430-12011
Gasket(For Oil Pan Drain Plug)
[10.1986 - 03.1988] 4K,5K..KM5#; 2Y..YM55,60 |
90430-12011 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[10.1986 - 03.1988] 4K,5K..KM5#; 2Y..YM55,60 |
90430-12028 |
from US $1.11 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[03.1988 - 08.1990] 4K,5K..KM5# |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[03.1988 - 08.1990] 4K,5K..KM5# |
90430-12028 |
from US $1.11 |
||
|
12151
|
12151
12151-13011 Gasket, Oil Pan[10.1986 -] 4K,5K..KM5# |
12151-13011 |
from US $23.85 |
||
|
15301
|
15301
15301-13040 Gage Sub-Assy, Oil Level[10.1986 -] 4K,5K..KM5# |
15301-13040 |
US $13.80 |
||
|
9017906018
|
9017906018
90179-06018 New Genuine Part |
90179-06018 |
US $0.83 |
||
|
9017908027
|
9017908027
90179-08027 New Genuine Part |
90179-08027 |
US $1.75 |
||
