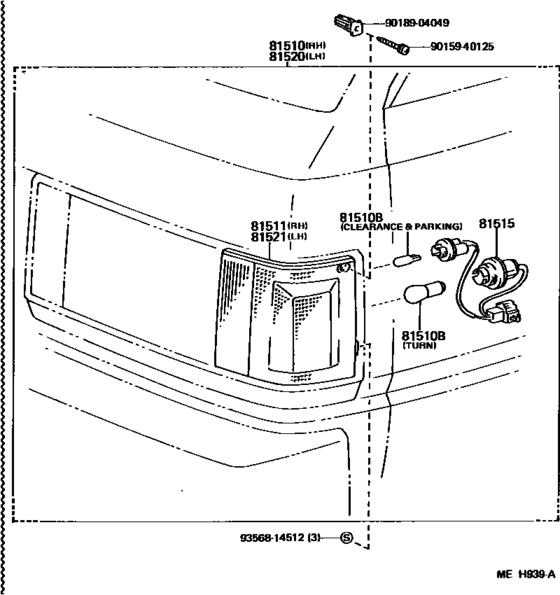

Front Turn Signal Lamp ([10.1986 - ] (8610- )) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510
|
81510
81510-95706
Lamp Assy, Front Turn Signal, Rh
[10.1986 - 08.1988] CM5#,6#,KM5#,YM55,60 |
81510-95706 |
— | ||
| replacement | |||||
|
81510
|
81510
81510-95710 Lamp Assy, Front Turn Signal, Rh[10.1986 - 08.1988] CM5#,6#,KM5#,YM55,60 |
81510-95710 |
US $91.99 |
||
|
81510
|
81510
81510-95710 Lamp Assy, Front Turn Signal, Rh[08.1988 - 10.1993] CM5#,6#,KM5#,YM55,6# |
81510-95710 |
US $91.99 |
||
|
81510B
|
81510B
99132-11210 Bulb (12V 21W)[08.1988 - 10.1993] CM5#,6#,KM5#,YM55,6# １２Ｖ ２１Ｗ,ターンシグナル |
99132-11210 |
from US $2.81 |
||
|
81510B
|
81510B
99132-11230 Bulb, Fog Lamp[10.1986 - 08.1988] CM5#,6#,KM5#,YM55,60 １２Ｖ ２３Ｗ,ターンシグナル |
99132-11230 |
US $3.05 |
||
|
81510B
|
81510B
99132-12050 Bulb (12V 5W)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# １２Ｖ ５Ｗ,ｸﾘｱﾗﾝｽ & ﾊﾟ-ｷﾝｸﾞ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81510B
|
81510B
90080-81053 Bulb(For Clearance Lamp)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# １２Ｖ ５Ｗ,ｸﾘｱﾗﾝｽ & ﾊﾟ-ｷﾝｸﾞ |
90080-81053 |
US $1.01 |
||
|
81511
|
81511
81511-95706 Lens, Front Turn Signal Lamp, Rh[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
81511-95706 |
US $85.28 |
||
|
81515
|
81515
81515-95706 Wire Sub-Assy, Front Turn Signal Lamp Body[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
81515-95706 |
US $16.74 |
||
|
81520
|
81520
81520-95706 Lamp Assy, Front Turn Signal, Lh[10.1986 - 08.1988] CM5#,6#,KM5#,YM55,60 |
81520-95706 |
US $91.73 |
||
| replacement | |||||
|
81520
|
81520
81520-95710
Lamp Assy, Front Turn Signal, Lh
[10.1986 - 08.1988] CM5#,6#,KM5#,YM55,60 |
81520-95710 |
— | ||
|
81520
|
81520
81520-95710
Lamp Assy, Front Turn Signal, Lh
[08.1988 - 10.1993] CM5#,6#,KM5#,YM55,6# |
81520-95710 |
— | ||
|
81521
|
81521
81521-95706 Lens, Front Turn Signal Lamp, Lh[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
81521-95706 |
US $85.28 |
||
|
9015940125
|
9015940125
90159-40125
New Genuine Part
|
90159-40125 |
— | ||
|
9018904049
|
9018904049
90189-04049 GROMMET |
90189-04049 |
US $2.33 |
||
|
9356814512
|
9356814512
93568-14512
New Genuine Part
|
93568-14512 |
— | ||
| replacement | |||||
|
9356814512
|
9356814512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
