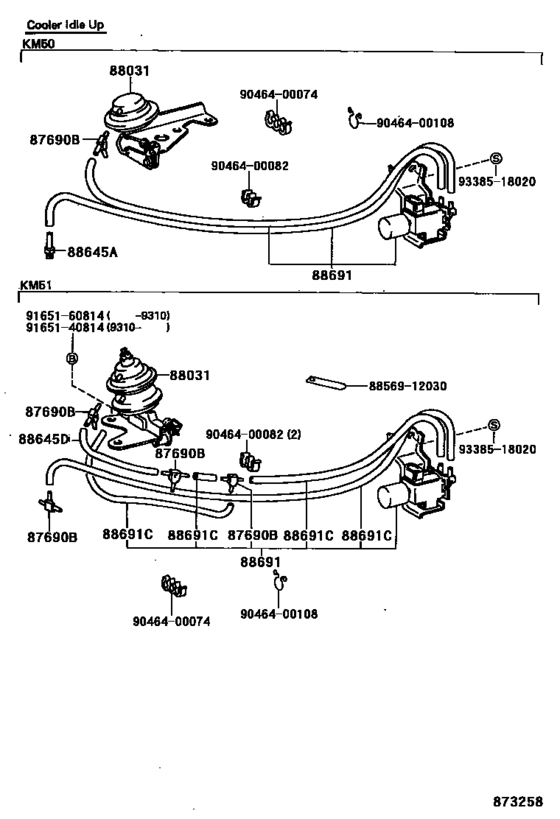

Heating & Air Conditioning - Vacuum Piping ([10.1986 - ] (8610- )KM5#) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87690B
|
87690B
90413-04005 Way, 3, No.1 (For Front Drive Shift)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
90413-04005 |
from US $3.40 |
||
|
88031
|
88031
88031-12081 Actuator Set, Idle-Up[10.1986 - 08.1990] KM50 *CIU |
88031-12081 |
US $90.27 |
||
|
88031
|
88031
88031-27030 Actuator Set, Idle-Up[10.1986 - 08.1990] KM50 *HIU |
88031-27030 |
US $69.01 |
||
|
88645A
|
88645A
90404-51093 Union, Vacuum Hose[10.1986 - 11.1987] KM50 *CIU |
90404-51093 |
from US $2.45 |
||
|
88691
|
88691
88690-95758
Valve, Magnet (For Idle Up Device)
[10.1986 -] KM5#..DX ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
88690-95758 |
— | ||
|
88691
|
88691
88690-95761
Valve, Magnet (For Idle Up Device)
[10.1986 - 08.1990] KM50 ｱﾘ(ｸ-ﾗ-) |
88690-95761 |
— | ||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[11.1987 - 10.1989] KM5# ＊Ｈ，Ｌ＝４８０，マーク＝＃＊,ＮＯ．１; KM51..SPX ＊Ｈ，Ｌ＝４２０，マーク＝＃０,ＮＯ．２,ＮＯ．３; KM5#..DX ＊Ｈ，Ｌ＝４８０，マーク＝＃０,ＮＯ．２ |
90999-92003 |
— | ||
|
88691C
|
88691C
95411-10060 Hose, Vacuum[10.1986 - 11.1987] KM5#,YM55..DX ＊Ｈ，Ｌ＝６００，マーク＝＃０,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ); KM51 ＊Ｈ，Ｌ＝６００，マーク＝＃０,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
95411-10060 |
US $12.23 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[10.1986 - 11.1987] KM5#,YM55..DX ＊Ｈ，Ｌ＝６００，マーク＝＃０,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ); KM51 ＊Ｈ，Ｌ＝６００，マーク＝＃０,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90999-92003 |
— | ||
|
88691C
|
88691C
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
[10.1986 - 11.1987] KM5#..DX ＊Ｈ，Ｌ＝６００，マーク＝＃＊,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ); KM51,YM55,60 ＊Ｈ，Ｌ＝６００，マーク＝＃＊,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
95411-19960 |
— | ||
| replacement | |||||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[10.1986 - 11.1987] KM5#..DX ＊Ｈ，Ｌ＝６００，マーク＝＃＊,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ); KM51,YM55,60 ＊Ｈ，Ｌ＝６００，マーク＝＃＊,ｱﾘ(ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ & ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
90999-92003 |
— | ||
|
8856912030
|
8856912030
88569-12030
Clamp (For Cooler Wiring Harness), No.1
|
88569-12030 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400108
|
9046400108
90464-00108 New Genuine Part |
90464-00108 |
from US $2.43 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
