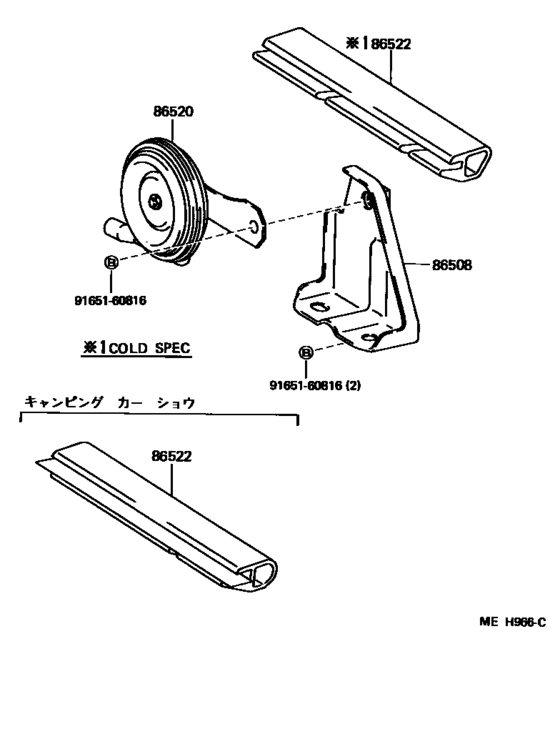

Horn ([10.1986 - ] (8610- )) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86508
|
86508
86591-95704 Bracket Sub-Assy, Horn[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
86591-95704 |
US $9.90 |
||
|
86520
|
86520
86520-95718 Horn Assy, Low Pitched[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
86520-95718 |
US $40.95 |
||
|
86522
|
86522
86522-95705 Protector, Horn[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 |
86522-95705 |
US $7.43 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
