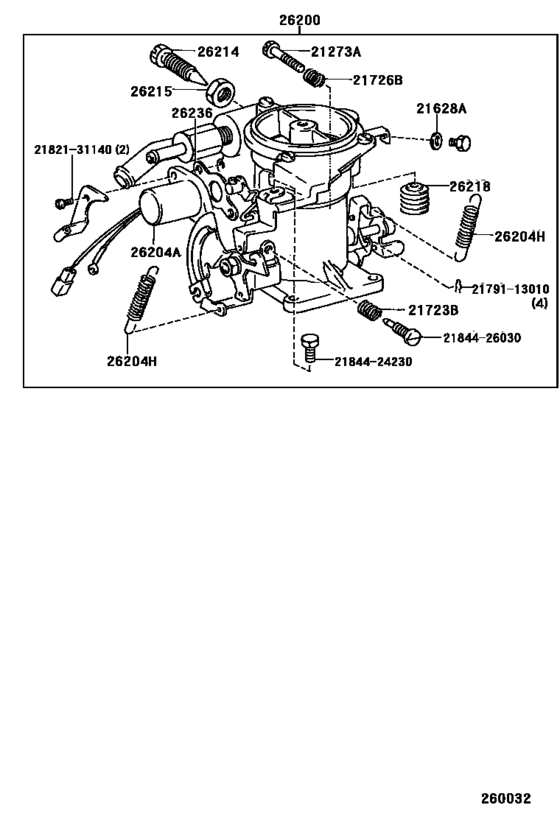

Lpg Carburetor ([01.1987 - 08.1990] (8701-9008)4K..3SO..CBU) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21273A
|
21273A
21273-22011
Screw, 1St Idle Adjusting
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
21273-22011 |
— | ||
|
21628A
|
21628A
21628-30010
Gasket, Main Passage Plug
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
21628-30010 |
— | ||
|
21723B
|
21723B
21723-21030 Spring, Idle Adjusting[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
21723-21030 |
US $3.72 |
||
|
21726B
|
21726B
21726-40010 Spring, Throttle Adjusting[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
21726-40010 |
US $4.66 |
||
|
26200
|
26200
26200-13010 Carburetor Assy, Lpg[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26200-13010 |
US $764.40 |
||
|
26204A
|
26204A
26208-41030
Valve, Throttle Solenoid(For Lpg)
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26208-41030 |
— | ||
| replacement | |||||
|
26204A
|
26204A
26208-41050 Valve, Throttle Solenoid(For Lpg)[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26208-41050 |
US $123.76 |
||
|
26204H
|
26204H
26248-44060 Spring, Throttle Return(For Lpg)[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26248-44060 |
US $6.99 |
||
|
26214
|
26214
26214-40010
Screw, Power Adjust
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26214-40010 |
— | ||
|
26215
|
26215
26215-40010
Nut, Power Adjust
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26215-40010 |
— | ||
|
26218
|
26218
26218-31010
Boot(For Power Valve)
[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26218-31010 |
— | ||
|
26236
|
26236
26236-44020 Gasket, Solenoid Valve(For Lpg)[01.1987 - 11.1987] 4K..KM50..3SO..CBU LPG |
26236-44020 |
US $3.64 |
||
|
2179113010
|
2179113010
21791-13010 Ring, Snap, No.1(For Carburetor Link) |
21791-13010 |
US $3.32 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2184424230
|
2184424230
21844-24230 Screw, Choke Lever |
21844-24230 |
US $4.08 |
||
|
2184426030
|
2184426030
21844-26030
Screw, Adjusting
|
21844-26030 |
— | ||
