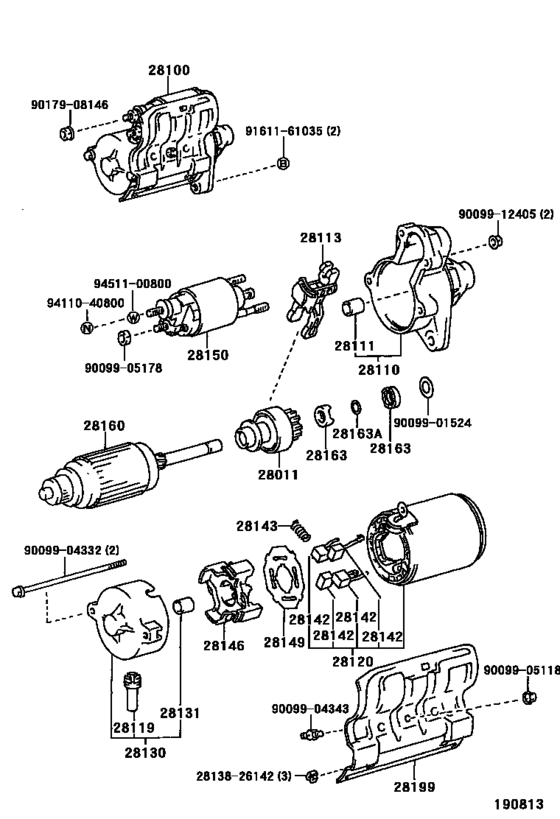

Starter ([10.1986 - 05.1990] 12V 0.6KW (8610-9005)4K) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-13060 Clutch Sub-Assy, Starter[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28011-13060 |
US $42.66 |
||
|
28011
|
28011
28011-15010 Clutch Sub-Assy, Starter[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28011-15010 |
US $69.01 |
||
|
28100
|
28100
28100-13020 Starter Assy[10.1986 - 11.1987] 4K..KM50 １２Ｖ ０．８ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-13020 |
US $984.26 |
||
|
28100
|
28100
28100-13060 Starter Assy[10.1986 - 05.1987] 4K..KM50 １２Ｖ ０．６ＫＷ |
28100-13060 |
US $837.20 |
||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[10.1986 - 05.1987] 4K..KM50 １２Ｖ ０．６ＫＷ |
28100-13130 |
— | ||
|
28100
|
28100
28100-13061 Starter Assy[05.1987 - 05.1990] 4K..KM50 １２Ｖ ０．６ＫＷ |
28100-13061 |
US $837.20 |
||
| replacement | |||||
|
28100
|
28100
28100-13130
Starter Assy
[05.1987 - 05.1990] 4K..KM50 １２Ｖ ０．６ＫＷ |
28100-13130 |
— | ||
|
28110
|
28110
28110-13020 Housing Assy, Starter Drive[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28110-13020 |
US $71.78 |
||
|
28110
|
28110
28110-13060 Housing Assy, Starter Drive[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28110-13060 |
US $74.26 |
||
|
28110
|
28110
28110-13070
Housing Assy, Starter Drive
[11.1987 - 08.1990] 4K..KM50 |
28110-13070 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28111-51011 |
— | ||
|
28111
|
28111
90099-10158
Bush(For Starter Housing)
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
90099-10158 |
— | ||
|
28111
|
28111
90099-10171
Bearing(For Starter Housing)
[11.1987 - 08.1990] 4K..KM50 |
90099-10171 |
— | ||
|
28113
|
28113
28113-13060 Lever, Starter Pinion Drive[10.1986 - 08.1990] 4K..KM50 12V 0.6KW |
28113-13060 |
US $9.32 |
||
|
28113
|
28113
28113-15011 Lever, Starter Pinion Drive[10.1986 - 08.1990] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28113-15011 |
US $16.45 |
||
|
28119
|
28119
28199-15090
Cover, Starter End Frame
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28199-15090 |
— | ||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28199-77090 |
— | ||
|
28120
|
28120
28120-13060
Yoke Assy, Starter
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28120-13060 |
— | ||
|
28120
|
28120
28120-26140
Yoke Assy, Starter
[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28120-26140 |
— | ||
|
28130
|
28130
28130-13020 Frame Assy, Starter Commutator End[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28130-13020 |
US $33.78 |
||
|
28130
|
28130
28130-13060 Frame Assy, Starter Commutator End[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28130-13060 |
US $43.97 |
||
|
28131
|
28131
90099-10134
Bearing, Starter Flange
[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
90099-10134 |
— | ||
|
28131
|
28131
90099-10157
Bearing, Starter Flange
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
90099-10157 |
— | ||
|
28142
|
28142
28142-10020 Brush, Starter[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28142-10020 |
from US $3.85 |
||
|
28143
|
28143
28143-10020
Spring, Starter Brush
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28143-10020 |
— | ||
|
28146
|
28146
28149-10020
Holder, Starter Brush
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28149-10020 |
— | ||
|
28149
|
28149
28141-10020
Insulator, Brush Holder
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28141-10020 |
— | ||
|
28150
|
28150
28150-10020
Switch Assy, Magnet Starter
[10.1986 - 08.1988] 4K..KM50 |
28150-10020 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[10.1986 - 08.1988] 4K..KM50 |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-37010 Switch Assy, Magnet Starter[10.1986 - 08.1988] 4K..KM50 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-37010 |
US $141.23 |
||
| replacement | |||||
|
28150
|
28150
28150-37011 Switch Assy, Magnet Starter[10.1986 - 08.1988] 4K..KM50 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-37011 |
US $101.34 |
||
|
28160
|
28160
28160-10020 Armature Assy, Starter[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28160-10020 |
US $135.41 |
||
|
28160
|
28160
28160-15010 Armature Assy, Starter[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28160-15010 |
US $230.05 |
||
|
28163
|
28163
28163-10020
Nut Or Collar, Pinion Stop, Starter
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28163-10020 |
— | ||
| replacement | |||||
|
28163
|
28163
28163-10021
Nut Or Collar, Pinion Stop, Starter
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28163-10021 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[10.1986 - 11.1987] 4K..KM50 12V 0.8KW;ｶﾝﾚｲﾁ ｼﾖｳ |
90099-07047 |
— | ||
|
28163A
|
28163A
90099-07124
Bearing(For Starter Housing)
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
90099-07124 |
— | ||
|
28199
|
28199
28159-13060
Cover, Starter
[10.1986 - 11.1987] 4K..KM50 12V 0.6KW |
28159-13060 |
— | ||
|
28199
|
28199
28199-15110
Cover, Starter
[10.1986 - 08.1988] 4K..KM50 ｶﾝﾚｲﾁ ｼﾖｳ |
28199-15110 |
— | ||
|
2813826142
|
2813826142
28138-26142
Rubber(for Starter Bearing Cover)
|
28138-26142 |
— | ||
|
9009901524
|
9009901524
90099-01524
New Genuine Part
|
90099-01524 |
— | ||
|
9009904332
|
9009904332
90099-04332
New Genuine Part
|
90099-04332 |
— | ||
|
9009904343
|
9009904343
90099-04343
New Genuine Part
|
90099-04343 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
