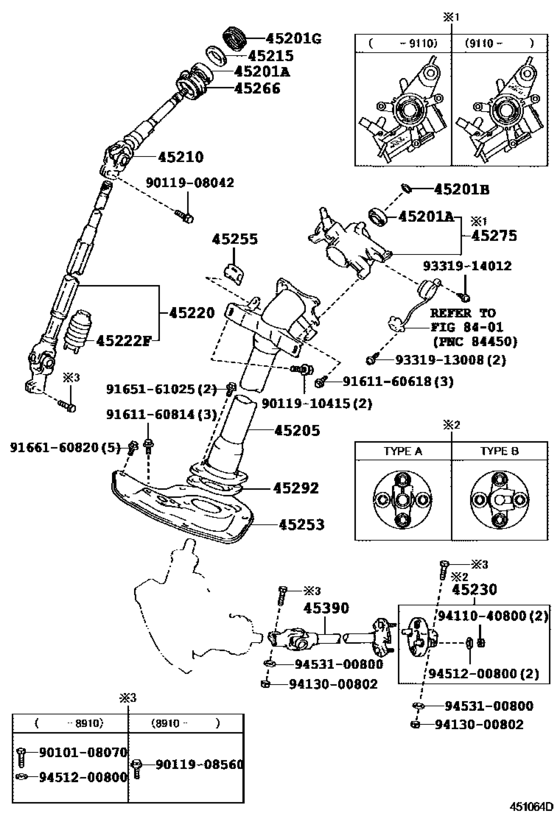

Steering Column & Shaft ([10.1986 - ] (8610- )) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45201A
|
45201A
90363-18001 Bearing(For Steering Main Shaft)[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 UPR |
90363-18001 |
US $23.41 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 LWR |
90363-28001 |
from US $24.11 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# 厚さ＝１．２０ |
90520-17042 |
from US $0.82 |
||
|
45201G
|
45201G
90501-45011 Spring, Compression(For Steering Main Shaft)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
90501-45011 |
US $7.69 |
||
|
45205
|
45205
45205-27130 Tube Sub-Assy, Steering Column[10.1986 - 10.1989] CM5#,6#,KM5#,YM55,60 |
45205-27130 |
US $101.92 |
||
|
45210
|
45210
45210-22050 Shaft Sub-Assy, Steering Main[10.1986 - 05.1993] CM5#,6#,KM5#,YM55,6# |
45210-22050 |
US $183.46 |
||
|
45215
|
45215
45215-22011 Collar, Main Shaft Bearing Thrust[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
45215-22011 |
from US $4.89 |
||
|
45220
|
45220
45220-27090 Shaft Assy, Steering Intermediate[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
45220-27090 |
US $429.31 |
||
|
45222F
|
45222F
45222-60031 Cover, Steering Gear Dust[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
45222-60031 |
from US $5.91 |
||
|
45230
|
45230
45230-27020
Coupling Assy, Flexible
[10.1986 - 02.1990] CM5#,KM5#,YM55..DX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
45230-27020 |
— | ||
|
45230
|
45230
45230-27080
Coupling Assy, Flexible
[02.1990 -] CM51,55,KM5#,YM55..DX TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
45230-27080 |
— | ||
|
45253
|
45253
45253-27110
Cover, Steering Column Hole
[10.1986 - 10.1989] CM5#,6#,KM5#,YM55,60..3HC,4H,4HC,5H |
45253-27110 |
— | ||
|
45255
|
45255
45255-27010 Plate, Steering Column Hole Cover[10.1986 - 11.1987] CM5#,6#,KM5#,YM55,60 UPR BRACKET SIDE |
45255-27010 |
US $8.30 |
||
|
45255
|
45255
45266-27020 Plate, Steering Column Hole Cover[04.1987 - 11.1987] CM5#,6#,KM5#,YM55,60 STEERING GEAR SIDE |
45266-27020 |
US $11.50 |
||
| replacement | |||||
|
45255
|
45255
45266-27021
Cover, Steering Intermediate Shaft Dust
[04.1987 - 11.1987] CM5#,6#,KM5#,YM55,60 STEERING GEAR SIDE |
45266-27021 |
— | ||
|
45266
|
45266
45266-27010 Cover, Steering Intermediate Shaft Dust[10.1986 - 10.1989] CM5#,6#,KM5#,YM55,60 アッパブラケット サイド |
45266-27010 |
US $11.36 |
||
|
45266
|
45266
45266-27020 Plate, Steering Column Hole Cover[08.1987 - 03.1989] CM5#,6#,KM5#,YM55,60 ｽﾃｱﾘﾝｸﾞｷﾞﾔ ｻｲﾄﾞ |
45266-27020 |
US $11.50 |
||
| replacement | |||||
|
45266
|
45266
45266-27021
Cover, Steering Intermediate Shaft Dust
[08.1987 - 03.1989] CM5#,6#,KM5#,YM55,60 ｽﾃｱﾘﾝｸﾞｷﾞﾔ ｻｲﾄﾞ |
45266-27021 |
— | ||
|
45266
|
45266
45266-27021
Cover, Steering Intermediate Shaft Dust
[03.1989 - 10.1993] CM5#,6#,KM5#,YM55,6# ｽﾃｱﾘﾝｸﾞｷﾞﾔ ｻｲﾄﾞ |
45266-27021 |
— | ||
|
45275
|
45275
45280-27091 Bracket, Steering Column, Upper[10.1986 - 10.1987] CM5#,6#,KM5#,YM55,60..3HC,4H,4HC,5H |
45280-27091 |
US $254.80 |
||
|
45275
|
45275
45280-27092 Bracket, Steering Column, Upper[10.1987 - 10.1989] CM5#,6#,KM5#,YM55,60..3HC,4H,4HC,5H |
45280-27092 |
US $257.71 |
||
|
45292
|
45292
45292-27020 Seal, Main Shaft Lower Dust[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
45292-27020 |
US $11.53 |
||
|
45390
|
45390
45390-27010 Shaft Assy, Steering Torque[10.1986 - 02.1990] CM5#,KM5#,YM55..DX |
45390-27010 |
US $133.95 |
||
| replacements | |||||
|
45390
|
45390
45230-27080
Coupling Assy, Flexible
[10.1986 - 02.1990] CM5#,KM5#,YM55..DX |
45230-27080 |
— | ||
|
45390
|
45390
45390-27060
Shaft Assy, Steering Torque
[10.1986 - 02.1990] CM5#,KM5#,YM55..DX |
45390-27060 |
— | ||
|
45390
|
45390
45390-27060
Shaft Assy, Steering Torque
[02.1990 -] CM51,55,KM5#,YM55..DX |
45390-27060 |
— | ||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.93 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
|
9011910415
|
9011910415
90119-10415 BOLT |
90119-10415 |
US $2.62 |
||
| replacement | |||||
|
9011910415
|
9011910415
91651-G1020 BOLT |
91651-G1020 |
from US $1.05 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9166160820
|
9166160820
91661-60820
New Genuine Part
|
91661-60820 |
— | ||
| replacement | |||||
|
9166160820
|
9166160820
91661-B0820 Bolt |
91661-B0820 |
US $2.87 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.86 |
||
