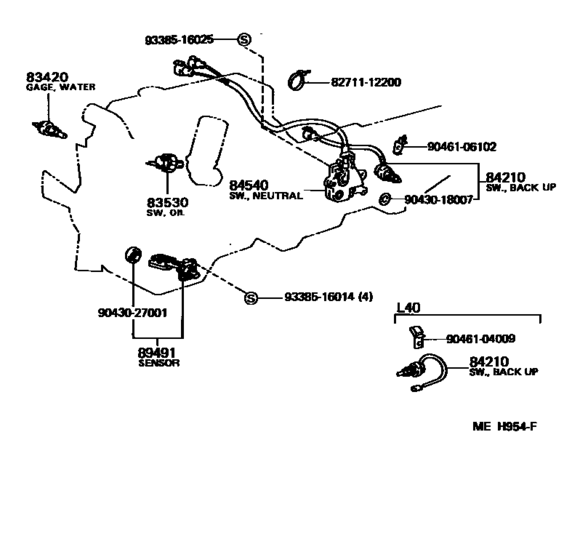

Switch & Relay & Computer ([10.1986 - ] (8610- )KM5#) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 3SO
- Building Condition
- CBU
- Deck(Material)
- TB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1986 - 09.1993] CM5#,6#,KM5#,YM55,6# |
83420-20020 |
from US $29.21 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[10.1986 - 09.1993] KM5# |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[10.1986 - 09.1993] KM5# |
83530-60040 |
from US $29.27 |
||
|
84210
|
84210
84210-26030 Switch Assy, Back-Up Lamp[10.1986 - 08.1990] KM5#,YM55..4H |
84210-26030 |
US $47.61 |
||
|
89491
|
89491
89491-27010 Sensor, Engine Oil Level[10.1989 -] KM5# |
89491-27010 |
US $304.30 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9043018007
|
9043018007
90430-18007
Gasket(For Water Hole)
|
90430-18007 |
— | ||
| replacement | |||||
|
9043018007
|
9043018007
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.05 |
||
|
9046104009
|
9046104009
90461-04009 New Genuine Part |
90461-04009 |
US $1.89 |
||
|
9046106102
|
9046106102
90461-06102 New Genuine Part |
90461-06102 |
US $4.22 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.43 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
