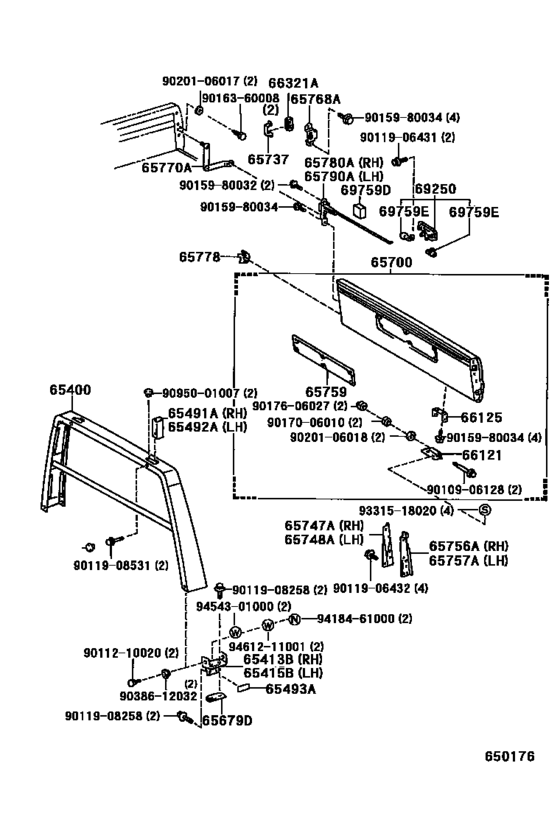

Rear Body Guard Frame & Tail Gate ([10.1986 - ] (8610- )TJ) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1990
- Sales region
- Japan
- Frame
- KM50
- grade
- DX
- body
- SJL
- ENGINE
- 4K
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 08.1990
- Gear Shift Type
- 4H
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TJ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65400
|
65400
65400-95717 Frame Assy, Rear Body Guard[10.1986 - 08.1990] KM50,YM60..1SO..DX |
65400-95717 |
US $658.11 |
||
|
65413B
|
65413B
65413-95702 Bracket, Guard Frame, Rh[10.1986 -] KM5#..TJ |
65413-95702 |
US $77.17 |
||
|
65415B
|
65415B
65415-95703 Bracket, Guard Frame, Lh[10.1986 -] KM5#..TJ |
65415-95703 |
US $77.17 |
||
|
65493A
|
65493A
65493-95701 Seal, Rear Body Guard Frame, No.1[12.1986 - 11.1987] KM5#,YM60..1SO |
65493-95701 |
US $2.18 |
||
|
65679D
|
65679D
65679-95700 Seal, Side Gate[10.1986 -] KM5#,YM60..1SO |
65679-95700 |
US $3.49 |
||
|
65700
|
65700
65700-95706 Gate Assy, Rear Body Tail[10.1986 -] KM5#..TJ |
65700-95706 |
US $4,178.72 |
||
|
65737
|
65737
65737-89105 Stop, Tail Gate[10.1986 -] KM5#,YM60..1SO |
65737-89105 |
US $3.99 |
||
|
65747A
|
65747A
65747-95701 Plate, Tail Gate Seal, Rh[10.1986 -] KM5#..TJ |
65747-95701 |
US $18.05 |
||
|
65748A
|
65748A
65748-95701 Plate, Tail Gate Seal, Lh[10.1986 -] KM5#..TJ |
65748-95701 |
US $18.05 |
||
|
65756A
|
65756A
65756-95701 Seal, Tail Gate, Rh[10.1986 -] KM5#..TJ |
65756-95701 |
US $18.05 |
||
|
65757A
|
65757A
65757-95701 Seal, Tail Gate, Lh[10.1986 -] KM5#..TJ |
65757-95701 |
US $18.05 |
||
|
65759
|
65759
65759-95701 Cover, Tail Gate Service Hole[10.1986 -] KM5#..TJ |
65759-95701 |
US $138.32 |
||
|
65768A
|
65768A
65768-89102 Striker, Tail Gate Lock[10.1986 - 03.1988] KM5#,YM60..1SO |
65768-89102 |
US $10.83 |
||
|
65768A
|
65768A
65768-95700 Striker, Tail Gate Lock[03.1988 -] KM5#..TJ |
65768-95700 |
US $7.28 |
||
|
65770A
|
65770A
65770-95700 Stay Assy, Tail Gate[10.1986 - 01.1988] KM5#,YM60..1SO |
65770-95700 |
US $18.20 |
||
|
65770A
|
65770A
65770-95701 Stay Assy, Tail Gate[01.1988 -] KM5#..TJ |
65770-95701 |
US $18.20 |
||
|
65778
|
65778
65778-89104 Stopper, Tail Gate Stay[10.1986 -] KM5#,YM60..1SO |
65778-89104 |
US $5.38 |
||
|
65780A
|
65780A
65780-95700 Lock Assy, Tail Gate, Rh[10.1986 - 01.1988] KM5#,YM60..1SO |
65780-95700 |
US $53 |
||
|
65780A
|
65780A
65780-95701 Lock Assy, Tail Gate, Rh[01.1988 -] KM5#..TJ |
65780-95701 |
US $53 |
||
|
65790A
|
65790A
65790-95700 Lock Assy, Tail Gate, Lh[10.1986 - 01.1988] KM5#,YM60..1SO |
65790-95700 |
US $53 |
||
|
65790A
|
65790A
65790-95702 Lock Assy, Tail Gate, Lh[01.1988 - 06.1999] KM5#..TJ |
65790-95702 |
US $53 |
||
|
66121
|
66121
66111-95701 Hinge, Tail Gate, Male[10.1986 -] KM5#..TJ |
66111-95701 |
US $20.24 |
||
|
66125
|
66125
66112-95702 Hinge, Tail Gate, Female[10.1986 -] KM5#..TJ |
66112-95702 |
US $15.29 |
||
|
66321A
|
66321A
66321-89108 Bumper, Gate Rubber[10.1986 -] KM5#,YM60..1SO |
66321-89108 |
US $5.59 |
||
|
69250
|
69250
69230-89101 Handle Assy, Tail Gate Lock[10.1986 - 01.1988] KM5#,YM60..1SO |
69230-89101 |
US $93.18 |
||
|
69250
|
69250
69230-95702 Handle Assy, Tail Gate Lock[01.1988 -] KM5#..TJ |
69230-95702 |
US $39.60 |
||
|
69759D
|
69759D
69759-95702 Silencer, Tail Gate Lock Link[10.1986 -] KM5#,YM60..1SO |
69759-95702 |
US $3.35 |
||
|
69759E
|
69759E
69759-20100 Snap, Tail Gate Handle[10.1986 - 11.1987] KM5#,YM60..1SO RH |
69759-20100 |
US $3.32 |
||
|
69759E
|
69759E
69759-20110 Snap, Auxiliary Catch Release Lever Control Link[10.1986 - 11.1987] KM5#,YM60..1SO LH |
69759-20110 |
from US $1.83 |
||
|
9010906128
|
9010906128
90109-06128 New Genuine Part |
90109-06128 |
US $3.49 |
||
|
9011210020
|
9011210020
90112-10020 New Genuine Part |
90112-10020 |
US $2.04 |
||
|
9011906431
|
9011906431
90119-06431 New Genuine Part |
90119-06431 |
US $1.60 |
||
|
9011906432
|
9011906432
90119-06432 New Genuine Part |
90119-06432 |
US $1.60 |
||
|
9011908258
|
9011908258
90119-08258 New Genuine Part |
90119-08258 |
US $1.09 |
||
|
9011908531
|
9011908531
90119-08531 New Genuine Part |
90119-08531 |
US $1.60 |
||
|
9015980032
|
9015980032
90159-80032 New Genuine Part |
90159-80032 |
US $1.60 |
||
|
9015980034
|
9015980034
90159-80034 New Genuine Part |
90159-80034 |
US $1.60 |
||
|
9016360008
|
9016360008
90163-60008 New Genuine Part |
90163-60008 |
US $1.60 |
||
|
9017006010
|
9017006010
90170-06010 New Genuine Part |
90170-06010 |
US $1.89 |
||
|
9017606027
|
9017606027
90176-06027 NUT CAP |
90176-06027 |
US $1.10 |
||
|
9020106017
|
9020106017
90201-06017 New Genuine Part |
90201-06017 |
US $1.25 |
||
|
9020106018
|
9020106018
90201-06018 New Genuine Part |
90201-06018 |
US $1.31 |
||
|
9038612032
|
9038612032
90386-12032 New Genuine Part |
90386-12032 |
US $2.62 |
||
|
9095001007
|
9095001007
90950-01007 New Genuine Part |
90950-01007 |
US $3.35 |
||
|
9331518020
|
9331518020
93315-18020
BOLT
|
93315-18020 |
— | ||
|
9418461000
|
9418461000
94184-61000 Nut(For Rear Spring) |
94184-61000 |
US $2.87 |
||
| replacement | |||||
|
9418461000
|
9418461000
48284-0W060 Nut, Front Spring Center Bolt |
48284-0W060 |
from US $0.90 |
||
|
9454301000
|
9454301000
94543-01000 New Genuine Part |
94543-01000 |
US $1.97 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
