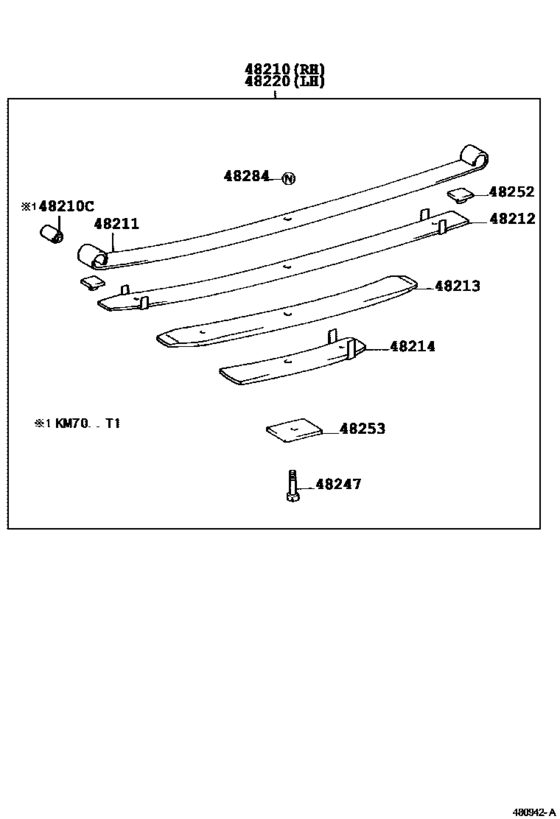

Rear Spring & Shock Absorber ([06.1999 - 08.2002] 4-LEAF,TYPE A (9906-0208)CM7#,KM75 ; (9906-0208)KM70..JL,T1 ; (9906-0208)KM70..SJL..3SO) Diagram Toyota LITE/ TOWNACE
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- KM70
- grade
- DX
- ENGINE
- 7KE
- TRANSMISSION
- MTM
- DECK
- T1
- Model
- LITE/TOWNACE
- From
- 06.1999
- To
- 08.2002
- Gear Shift Type
- 5H
- Vehicle Model
- LITE/TOWNACE
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-27750 Spring Assy, Rear Rh[06.1999 - 08.2002] KM70..T1 ４枚リーフ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-27750 |
US $578.03 |
||
| replacement | |||||
|
48210
|
48210
48210-2K030 Spring Assy, Rear Rh[06.1999 - 08.2002] KM70..T1 ４枚リーフ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-2K030 |
US $479.02 |
||
|
48210C
|
48210C
90389-14004 Bush(For Rear Spring Leaf)[06.1999 - 08.2002] KM70..T1 |
90389-14004 |
from US $15.88 |
||
|
48211
|
48211
48201-27750 Leaf, Rear Spring, No.1[06.1999 - 08.2002] KM70..T1 4-LEAF(TYPE A) |
48201-27750 |
US $196.56 |
||
|
48212
|
48212
48202-27750 Leaf, Rear Spring, No.2[06.1999 - 08.2002] KM70..T1 4-LEAF(TYPE A) |
48202-27750 |
US $182 |
||
| replacement | |||||
|
48212
|
48212
48202-2K030 Leaf, Rear Spring, No.2[06.1999 - 08.2002] KM70..T1 4-LEAF(TYPE A) |
48202-2K030 |
US $182 |
||
|
48213
|
48213
48204-27750 Leaf, Rear Spring, No.3[06.1999 - 08.2002] KM70..T1 4-LEAF(TYPE A) |
48204-27750 |
US $74.26 |
||
|
48214
|
48214
48203-27750 Leaf, Rear Spring, No.4[06.1999 - 08.2002] KM70..T1 4-LEAF(TYPE A) |
48203-27750 |
US $106.29 |
||
|
48220
|
48220
48210-27750 Spring Assy, Rear Rh[06.1999 - 08.2002] KM70..T1 ４枚リーフ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-27750 |
US $578.03 |
||
| replacement | |||||
|
48220
|
48220
48210-2K030 Spring Assy, Rear Rh[06.1999 - 08.2002] KM70..T1 ４枚リーフ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
48210-2K030 |
US $479.02 |
||
|
48247
|
48247
48247-29210 Bolt, Rear Spring, Center[06.1999 - 08.2002] KM70..T1 4-LEAF(TYPE A) |
48247-29210 |
US $12.23 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[06.1999 - 08.2002] CM7#,8#,KM7#,8# |
48252-26070 |
from US $2.13 |
||
|
48253
|
48253
48216-35390
Spacer, Rear Spring, No.2
[06.1999 - 08.2002] KM70..TJ;CM70..JL..4HC..IV3;CM70,KM70..(JL,T1)..CBU |
48216-35390 |
— | ||
|
48284
|
48284
48284-37130 Nut, Front Spring Center Bolt[06.1999 - 08.2002] CM75..CBU;CM70,8#,KM7#,8# |
48284-37130 |
from US $1.11 |
||
