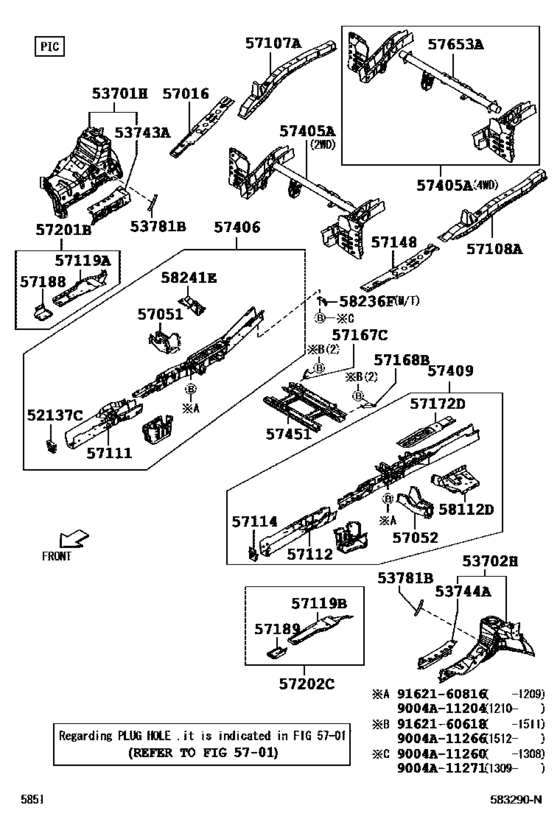

Front Floor Panel & Front Floor Member ([01.2008 - ] MEMBER (0801- )PIC) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DXED
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52137C
|
52137C
52141-BZ020 Bracket, Front Bumper Arm Mounting, No.3[01.2008 -] S402,412 |
52141-BZ020 |
US $25.27 |
||
|
53701H
|
53701H
53701-BZ250 Apron Sub-Assy, Front Fender, Rh[01.2008 -] S402,412 |
53701-BZ250 |
US $232.96 |
||
|
53702H
|
53702H
53702-BZ270 Apron Sub-Assy, Fender, Lh[01.2008 -] S402,412 |
53702-BZ270 |
US $194.48 |
||
|
53743A
|
53743A
53743-BZ030 Reinforcement, Front Fender Apron, Front RhFRONT FENDER APRON, FRONT RH [01.2008 -] S402,412 |
53743-BZ030 |
US $36.40 |
||
|
53744A
|
53744A
53744-BZ020 Reinforcement, Front Fender Apron, Front LhFRONT FENDER APRON, FRONT LH [01.2008 -] S402,412 |
53744-BZ020 |
US $36.40 |
||
|
53781B
|
53781B
53781-BZ010 Seal, Front Fender Apron, Lower[01.2008 - 04.2014] S402,412 |
53781-BZ010 |
US $3.64 |
||
|
57016
|
57016
57016-BZ040 Reinforcement Sub-Assy, Front Side Member, Rh[01.2008 -] S402,412..PIC |
57016-BZ040 |
US $52.56 |
||
|
57051
|
57051
57051-BZ090 Member Sub-Assy, Front Floor Cross, Rh[01.2008 -] S402,412 |
57051-BZ090 |
US $90.27 |
||
|
57052
|
57052
57052-BZ080 Member Sub-Assy, Front Floor Cross, Lh[01.2008 -] S402,412 |
57052-BZ080 |
US $90.27 |
||
|
57107A
|
57107A
57107-BZ030 Plate Sub-Assy, Front Side Member, No.2 Rh[01.2008 -] S402,412..PIC |
57107-BZ030 |
US $218.40 |
||
|
57108A
|
57108A
57108-BZ030 Plate Sub-Assy, Front Side Member, No.2 Lh[01.2008 -] S402,412..PIC |
57108-BZ030 |
US $218.40 |
||
|
57111
|
57111
57111-BZ160 Member, Front Side, Rh[01.2008 -] S402,412 |
57111-BZ160 |
US $187.82 |
||
|
57112
|
57112
57112-BZ130 Member, Front Side, Lh[01.2008 -] S402 |
57112-BZ130 |
US $187.82 |
||
|
57114
|
57114
57202-BZ020 Extension, Front Side Member, Lh[01.2008 -] S402,412 |
57202-BZ020 |
US $35.38 |
||
|
57119A
|
57119A
57119-BZ040 Plate, Front Side Member, Front Rh[01.2008 -] S402,412 |
57119-BZ040 |
US $90.27 |
||
|
57119B
|
57119B
57129-BZ030 Plate, Front Side Member, Front Lh[01.2008 -] S402,412 |
57129-BZ030 |
US $90.27 |
||
|
57148
|
57148
57106-BZ060 Plate, Front Side Member, Rear Lh[01.2008 -] S402,412..PIC |
57106-BZ060 |
US $67.56 |
||
|
57167C
|
57167C
57167-BZ060 Gusset, Front Crossmember Side, Rh[01.2008 - 10.2008] S402 |
57167-BZ060 |
US $16.16 |
||
| replacement | |||||
|
57167C
|
57167C
57167-BZ080 Gusset, Front Crossmember Side, RhFRONT CROSSMEMBER SIDE, RH [01.2008 - 10.2008] S402 |
57167-BZ080 |
US $14.56 |
||
|
57167C
|
57167C
57167-BZ080 Gusset, Front Crossmember Side, RhFRONT CROSSMEMBER SIDE, RH [11.2008 -] S402,412 |
57167-BZ080 |
US $14.56 |
||
|
57168B
|
57168B
57168-BZ060 Gusset, Front Crossmember Side, Lh[01.2008 -] S402,412 |
57168-BZ060 |
US $14.56 |
||
|
57172D
|
57172D
57172-BZ020 Plate, Front Side Member To Floor, Lh[01.2008 -] S402,412..PIC |
57172-BZ020 |
US $90.27 |
||
|
57188
|
57188
57188-BZ010 Reinforcement, Front Side Member Extention, Rh[01.2008 -] S402,412 |
57188-BZ010 |
US $22.57 |
||
|
57189
|
57189
57189-BZ020 Reinforcement, Front Side Member Extention, Lh[01.2008 -] S402,412 |
57189-BZ020 |
US $22.57 |
||
|
57201B
|
57201B
57203-BZ010 Extension Sub-Assy, Front Side Member, Rh[01.2008 -] S402,412 |
57203-BZ010 |
US $90.27 |
||
|
57202C
|
57202C
57204-BZ020 Extension Sub-Assy, Front Side Member, Lh[01.2008 -] S402,412 |
57204-BZ020 |
US $113.57 |
||
|
57405A
|
57405A
57405-BZ050 Member Sub-Assy, Center Floor Cross, No.2[01.2008 -] S402..PIC |
57405-BZ050 |
US $741.10 |
||
|
57406
|
57406
57406-BZ080 Member Sub-Assy, Main Floor Side, Rh[01.2008 -] S402,412..PIC |
57406-BZ080 |
US $586.77 |
||
|
57409
|
57409
57409-BZ070 Member Sub-Assy, Main Floor Side, Lh[01.2008 -] S402..PIC |
57409-BZ070 |
US $695.97 |
||
|
57451
|
57451
57408-BZ020 Member, Front Floor Cross[01.2008 -] S402 |
57408-BZ020 |
US $218.40 |
||
|
58112D
|
58112D
57381-BZ010 Panel, Front Floor, Front No.2[01.2008 -] S402,412 |
57381-BZ010 |
US $52.56 |
||
|
58236F
|
58236F
55147-BZ010 Bracket, Clutch Tube[01.2008 -] S402,412..5F |
55147-BZ010 |
US $9.17 |
||
|
58241E
|
58241E
57371-BZ010 Panel, Floor Side, Front Rh[01.2008 -] S402,412 |
57371-BZ010 |
US $22.57 |
||
|
9004A11204
|
9004A11204
9004A-11204
New Genuine Part
|
9004A-11204 |
— | ||
|
9004A11260
|
9004A11260
9004A-11260 New Genuine Part |
9004A-11260 |
US $2.18 |
||
| replacement | |||||
|
9004A11260
|
9004A11260
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
|
9004A11271
|
9004A11271
9004A-11271 New Genuine Part |
9004A-11271 |
US $3.40 |
||
|
9162160618
|
9162160618
91621-60618 New Genuine Part |
91621-60618 |
US $1.46 |
||
| replacement | |||||
|
9162160618
|
9162160618
91651-B0620 New Genuine Part |
91651-B0620 |
US $1.25 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
