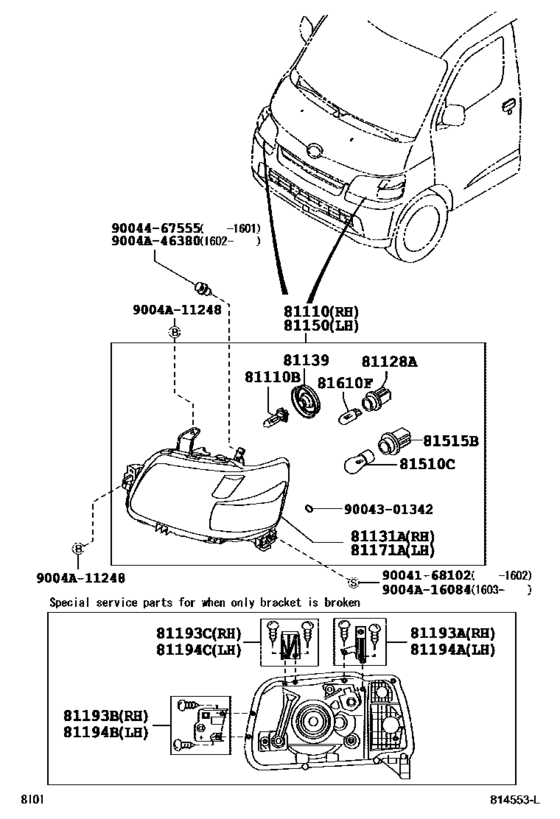

Headlamp ([01.2008 - ] (0801- )) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DXED
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-BZ110 Headlamp Assy, Rh[01.2008 -] S402,412 |
81110-BZ110 |
US $661.44 |
||
|
81110B
|
81110B
9004A-81002
Bulb(For Headlamp, No.1)
[07.2008 - 08.2016] S402,412 １２Ｖ−６０／５５Ｗ |
9004A-81002 |
— | ||
| replacements | |||||
|
81110B
|
81110B
90049-51125 Bulb(For Headlamp, No.1)[07.2008 - 08.2016] S402,412 １２Ｖ−６０／５５Ｗ |
90049-51125 |
US $32.76 |
||
|
81110B
|
81110B
9004A-81045 Bulb(For Headlamp, No.1)[07.2008 - 08.2016] S402,412 １２Ｖ−６０／５５Ｗ |
9004A-81045 |
US $26.21 |
||
|
81110B
|
81110B
9004A-81045 Bulb(For Headlamp, No.1)[09.2016 -] S402,412 １２Ｖ ６０／５５Ｗ |
9004A-81045 |
US $26.21 |
||
|
81110B
|
81110B
90981-22003
Bulb(For Headlamp, No.1)
[01.2008 - 07.2008] S402 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-22003 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [01.2008 - 07.2008] S402 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $33.60 |
||
|
81128A
|
81128A
81179-97205 Socket, Headlamp, Bulb[01.2008 -] S402,412 |
81179-97205 |
from US $17.74 |
||
|
81131A
|
81131A
81130-BZ070 Unit, Headlamp, Rh[01.2008 -] S402,412 |
81130-BZ070 |
US $583.44 |
||
|
81139
|
81139
81139-BZ010 Cover, Headlamp Socket[01.2008 -] S402,412 |
81139-BZ010 |
US $11.83 |
||
|
81150
|
81150
81150-BZ110 Headlamp Assy, Lh[01.2008 -] S402,412 |
81150-BZ110 |
US $661.44 |
||
|
81171A
|
81171A
81170-BZ070 Unit, Headlamp, Lh[01.2008 -] S402,412 |
81170-BZ070 |
US $583.44 |
||
|
81193A
|
81193A
81193-BZ010 Protector, Headlamp, Rh[01.2008 -] S402,412 |
81193-BZ010 |
US $10.19 |
||
|
81193B
|
81193B
81193-BZ020 Retainer, Headlamp Protector, Upper Rh No.2[01.2008 -] S402,412 |
81193-BZ020 |
US $10.19 |
||
|
81193C
|
81193C
81193-BZ030 Retainer, Rh Headlamp Protector, Upper Rh[01.2008 -] S402,412 |
81193-BZ030 |
US $10.19 |
||
|
81194A
|
81194A
81194-BZ010 Protector, Headlamp, Lh[01.2008 -] S402,412 |
81194-BZ010 |
US $10.19 |
||
|
81194B
|
81194B
81194-BZ020 Retainer, Headlamp Protector, Upper Lh No.2[01.2008 -] S402,412 |
81194-BZ020 |
US $10.19 |
||
|
81194C
|
81194C
81194-BZ030 Retainer, Lh Headlamp Protector, Upper Rh[01.2008 -] S402,412 |
81194-BZ030 |
US $10.19 |
||
|
81510C
|
81510C
90080-81116 Bulb (For Front Turn Signal Lamp)[01.2008 -] S402,412 １２Ｖ ２１Ｗ，イエロー |
90080-81116 |
from US $6.26 |
||
|
81515B
|
81515B
90075-60006 Cover, Headlamp Socket[01.2008 -] S402,412 |
90075-60006 |
from US $6.44 |
||
|
81610F
|
81610F
90981-11013
Bulb(For Courtesy Lamp)
[01.2008 -] S402,412 １２Ｖ ５Ｗ |
90981-11013 |
— | ||
| replacement | |||||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[01.2008 -] S402,412 １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
|
9004A11248
|
9004A11248
9004A-11248
New Genuine Part
|
9004A-11248 |
— | ||
|
9004A46380
|
9004A46380
9004A-46380
Clip(For Front Bumper Retainer)
|
9004A-46380 |
— | ||
|
9004168102
|
9004168102
90041-68102 SCREW TAPPING |
90041-68102 |
US $2.87 |
||
|
9004301342
|
9004301342
90043-01342 New Genuine Part |
90043-01342 |
US $1.60 |
||
|
9004467555
|
9004467555
90044-67555 Clip, Rear Bumper Side |
90044-67555 |
from US $2.09 |
||
