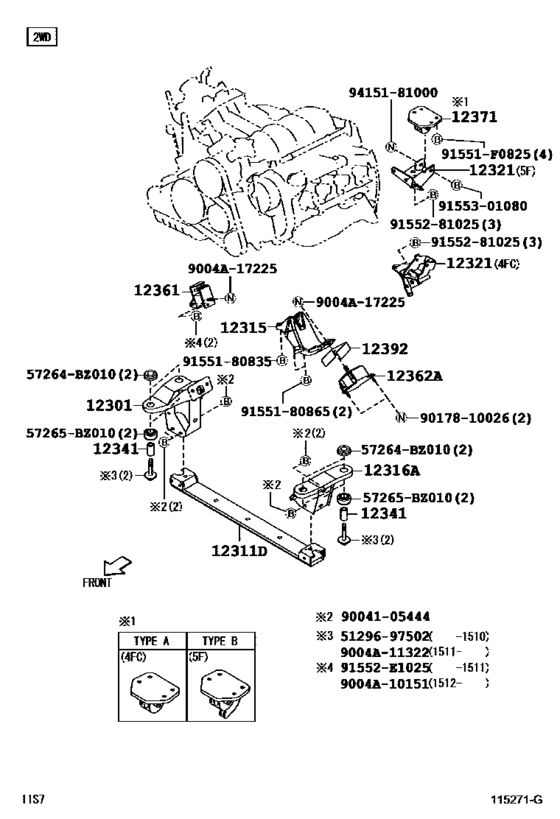

Mounting ([01.2008 - ] 2WD (0801- )3SZVE..S402) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DX
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12301
|
12301
12301-BZ050 Bracket Sub-Assy, Engine Mounting, Front Rh[01.2008 -] 3SZVE..S402,412..PIC |
12301-BZ050 |
US $85.90 |
||
|
12311D
|
12311D
51204-BZ040 Bracket, Engine Mounting[01.2008 - 02.2014] 3SZVE..S402,412..PIC |
51204-BZ040 |
US $106.29 |
||
| replacement | |||||
|
12311D
|
12311D
51204-BZ060 Bracket, Engine Mounting[01.2008 - 02.2014] 3SZVE..S402,412..PIC |
51204-BZ060 |
US $106.29 |
||
|
12311D
|
12311D
51204-BZ060 Bracket, Engine Mounting[03.2014 -] 3SZVE..S402,412..PIC |
51204-BZ060 |
US $106.29 |
||
|
12315
|
12315
12315-BZ030 Bracket, Engine Mounting, Front No.1 Lh[01.2008 -] 3SZVE..S402 |
12315-BZ030 |
US $99.01 |
||
|
12316A
|
12316A
12302-BZ010 Bracket, Engine Mounting, Fr No.2 Lh[01.2008 -] 3SZVE..S402,412..PIC |
12302-BZ010 |
US $66.10 |
||
|
12321
|
12321
12321-BZ170 Bracket, Engine Mounting, Rear, No.1[01.2008 -] 3SZVE..S402..4FC |
12321-BZ170 |
US $132.50 |
||
|
12341
|
12341
12341-87501 Spacer, Engine Mounting[01.2008 - 11.2015] 3SZVE..S402,412 |
12341-87501 |
US $3.05 |
||
|
12341
|
12341
12341-BZ010
Spacer, Engine Mounting
[12.2015 -] 3SZVE..S402,412 |
12341-BZ010 |
— | ||
|
12361
|
12361
12361-BZ120
Insulator, Engine Mounting, Front
[01.2008 - 06.2010] 3SZVE..S402 |
12361-BZ120 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-BZ171 Insulator, Engine Mounting, Front[01.2008 - 06.2010] 3SZVE..S402 |
12361-BZ171 |
US $76.27 |
||
|
12361
|
12361
12361-BZ170
Insulator, Engine Mounting, Front
[07.2010 - 04.2013] 3SZVE..S402 |
12361-BZ170 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-BZ171 Insulator, Engine Mounting, Front[07.2010 - 04.2013] 3SZVE..S402 |
12361-BZ171 |
US $76.27 |
||
|
12361
|
12361
12361-BZ171 Insulator, Engine Mounting, Front[05.2013 -] 3SZVE..S402,412 |
12361-BZ171 |
US $76.27 |
||
|
12362A
|
12362A
12362-BZ120
Insulator, Engine Mounting, Front Lh
[01.2008 - 06.2010] 3SZVE..S402 |
12362-BZ120 |
— | ||
| replacement | |||||
|
12362A
|
12362A
12362-BZ170 Insulator, Engine Mounting, Front LhENGINE MOUNTING, FRONT LH [01.2008 - 06.2010] 3SZVE..S402 |
12362-BZ170 |
US $83.16 |
||
|
12362A
|
12362A
12362-BZ170 Insulator, Engine Mounting, Front LhENGINE MOUNTING, FRONT LH [07.2010 -] 3SZVE..S402 |
12362-BZ170 |
US $83.16 |
||
|
12371
|
12371
12371-BZ080 Insulator, Engine Mounting, Rear No.1[01.2008 -] 3SZVE..S402..4FC タイプ Ａ |
12371-BZ080 |
US $76.27 |
||
|
12392
|
12392
12392-BZ010 Insulator, Engine Mounting Heat, Front Lh[01.2008 -] 3SZVE..S402,412 |
12392-BZ010 |
US $19.82 |
||
|
9004A17225
|
9004A17225
9004A-17225
New Genuine Part
|
9004A-17225 |
— | ||
|
57264BZ010
|
57264BZ010
57264-BZ010 New Genuine Part |
57264-BZ010 |
US $8.06 |
||
|
57265BZ010
|
57265BZ010
57265-BZ010 New Genuine Part |
57265-BZ010 |
US $8.06 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.43 |
||
|
91552E1025
|
91552E1025
91552-E1025 New Genuine Part |
91552-E1025 |
US $3.05 |
||
|
5129697502
|
5129697502
51296-97502 Bolt, Front Suspension Member Mounting |
51296-97502 |
US $8.42 |
||
|
9004105444
|
9004105444
90041-05444 New Genuine Part |
90041-05444 |
US $5.02 |
||
|
9017810026
|
9017810026
90178-10026 Nut(For Backing Plate To Rear Axle Housing Setting) |
90178-10026 |
US $2.51 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.80 |
||
|
9155180865
|
9155180865
91551-80865 Shaft, Clutch Pedal |
91551-80865 |
US $1.79 |
||
|
9155281025
|
9155281025
91552-81025 BOLT TLANGE |
91552-81025 |
US $1.79 |
||
|
9155301080
|
9155301080
91553-01080 New Genuine Part |
91553-01080 |
US $2.48 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
