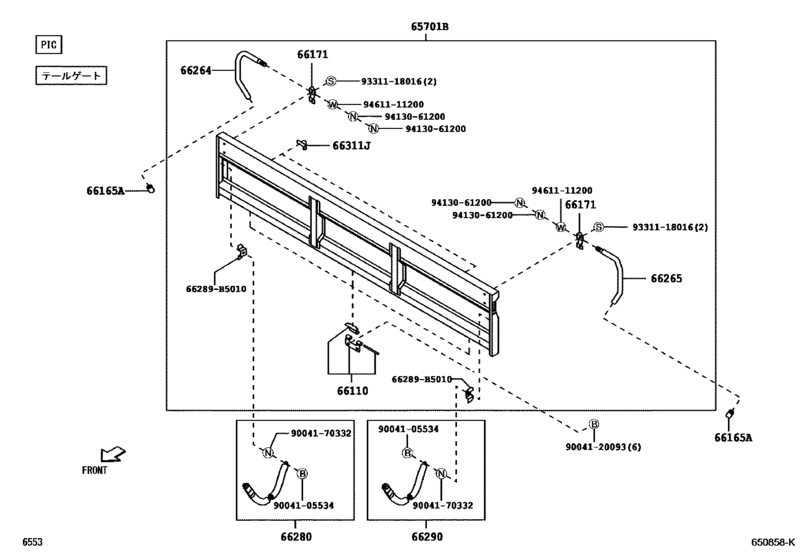

Rear Body Guard Frame & Tail Gate ([01.2008 - ] ﾃｰﾙｹﾞｰﾄ (0801- )PIC) Diagram Toyota LITE/ TOWNACE
- Year
- 2008 - 2018
- Sales region
- Japan
- Frame
- S402U
- grade
- DX
- body
- PIC
- ENGINE
- 3SZVE
- Model
- LITE/TOWNACE
- From
- 01.2008
- Gear Shift Type
- 4FC
- Vehicle Model
- LITE/TOWNACE
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65701B
|
65701B
65701-BZ020 Gate Sub-Assy, Rear Body Tail[01.2008 - 05.2010] S402..PIC |
65701-BZ020 |
US $356.72 |
||
| replacement | |||||
|
65701B
|
65701B
65701-BZ021 Gate Sub-Assy, Rear Body Tail[01.2008 - 05.2010] S402..PIC |
65701-BZ021 |
US $663 |
||
|
65701B
|
65701B
65701-BZ021 Gate Sub-Assy, Rear Body Tail[06.2010 - 04.2012] S402,412..PIC |
65701-BZ021 |
US $663 |
||
|
65701B
|
65701B
65701-BZ022 Gate Sub-Assy, Rear Body Tail[04.2012 -] S402,412..PIC |
65701-BZ022 |
US $432.12 |
||
|
66110
|
66110
66110-BZ010 Hinge Assy, Tail Gate[01.2008 - 02.2008] S402..PIC |
66110-BZ010 |
US $24.02 |
||
| replacement | |||||
|
66110
|
66110
66110-BZ071 Hinge Assy, Tail Gate[01.2008 - 02.2008] S402..PIC |
66110-BZ071 |
US $31.58 |
||
|
66110
|
66110
66110-BZ070 Hinge Assy, Tail Gate[02.2008 - 05.2010] S402..PIC |
66110-BZ070 |
US $24.02 |
||
| replacement | |||||
|
66110
|
66110
66110-BZ071 Hinge Assy, Tail Gate[02.2008 - 05.2010] S402..PIC |
66110-BZ071 |
US $31.58 |
||
|
66110
|
66110
66110-BZ071 Hinge Assy, Tail Gate[06.2010 -] S402,412..PIC |
66110-BZ071 |
US $31.58 |
||
|
66165A
|
66165A
66165-BZ010 Cap, Gate Latch Handle[01.2008 -] S402,412..PIC |
66165-BZ010 |
US $3.05 |
||
|
66171
|
66171
66171-BZ010 Holder, Tail Gate[01.2008 -] S402,412..PIC 右側 |
66171-BZ010 |
US $9.46 |
||
|
66171
|
66171
66172-BZ010 Holder, Tail Gate[01.2008 -] S402,412..PIC 左側 |
66172-BZ010 |
US $9.46 |
||
|
66264
|
66264
66264-BZ010 Handle, Tail Gate Latch, Rh[01.2008 - 04.2012] S402,412..PIC |
66264-BZ010 |
US $20.97 |
||
|
66264
|
66264
66264-BZ020 Handle, Tail Gate Latch, Rh[04.2012 -] S402,412..PIC |
66264-BZ020 |
US $18.93 |
||
|
66265
|
66265
66265-BZ010 Handle, Tail Gate Latch, Lh[01.2008 - 04.2012] S402,412..PIC |
66265-BZ010 |
US $20.97 |
||
|
66265
|
66265
66265-BZ020 Handle, Tail Gate Latch, Lh[04.2012 -] S402,412..PIC |
66265-BZ020 |
US $18.35 |
||
|
66280
|
66280
66280-B5030 Chain Assy, Tail Gate, Rh[01.2008 -] S402,412..PIC |
66280-B5030 |
US $31.92 |
||
|
66290
|
66290
66280-B5030 Chain Assy, Tail Gate, Rh[01.2008 -] S402,412..PIC |
66280-B5030 |
US $31.92 |
||
|
66311J
|
66311J
66310-97501 Hook, Rope[01.2008 - 03.2015] S402,412..PIC 日本調達部品 |
66310-97501 |
US $5.10 |
||
|
66311J
|
66311J
66310-BZ010 Hook, Rope[03.2015 -] S402,412..PIC 現地調達部品 |
66310-BZ010 |
US $4.82 |
||
|
66289B5010
|
66289B5010
66289-B5010 Bracket, Tail Gate Chain Side |
66289-B5010 |
US $3.93 |
||
|
9004105534
|
9004105534
90041-05534 New Genuine Part |
90041-05534 |
US $1.60 |
||
|
9004120093
|
9004120093
90041-20093 Bolt(For Front Stabilizer) |
90041-20093 |
US $1.43 |
||
|
9004170332
|
9004170332
90041-70332 New Genuine Part |
90041-70332 |
US $2.87 |
||
|
9331118016
|
9331118016
93311-18016 New Genuine Part |
93311-18016 |
US $1.75 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9461111200
|
9461111200
94611-11200 New Genuine Part |
94611-11200 |
US $2.87 |
||
