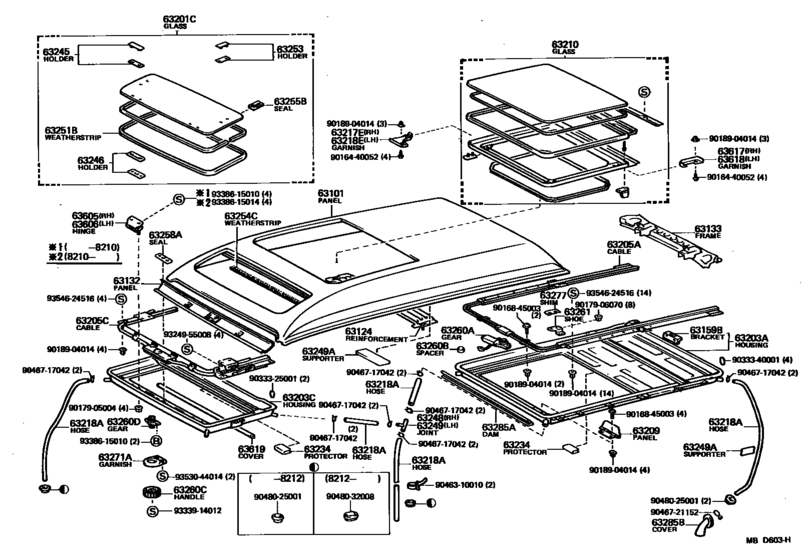

Roof Panel & Back Panel ([04.1982 - 08.1985] (8204-8508)MRF..FXV,GXL) Diagram Toyota LITE/ TOWNACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YM21G
- grade
- FXV
- body
- WG
- Roof
- MRF
- ENGINE
- 2YU
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1982
- To
- 08.1985
- Gear Shift Type
- 5F
- Seating Capacity
- 07S
- Vehicle Model
- LITE/TOWNACE TRUCK
- Building Condition
- CBU
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-95707
Panel Sub-Assy, Roof
[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63111-95707 |
— | ||
|
63124
|
63124
63123-95700 Reinforcement, Roof Panel, Rear No.1[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63123-95700 |
US $107.74 |
||
|
63132
|
63132
63103-95703 Panel, Windshield Header, InnerWINDSHIELD HEADER, INNER [02.1980 - 09.1986] CM2#,KM2#,TM20,YM2# |
63103-95703 |
US $80.08 |
||
|
63133
|
63133
63106-95702
Frame, Back Window Opening, Upper
[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63106-95702 |
— | ||
|
63159B
|
63159B
63159-95700 Bracket, Sliding Roof, Rear[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63159-95700 |
US $10.63 |
||
|
63201C
|
63201C
63201-95702 Glass Sub-Assy, Tilt Roof[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63201-95702 |
US $761.49 |
||
|
63203A
|
63203A
63203-95703
Housing Sub-Assy, Sliding Roof Or Removable Roof
[10.1982 - 08.1985] CM20,YM21..MRF..(FXV,GXL) |
63203-95703 |
— | ||
|
63203C
|
63203C
63203-95704
Housing Sub-Assy, Tilt Roof
[10.1982 - 08.1985] CM20,YM21..MRF |
63203-95704 |
— | ||
|
63205A
|
63205A
63205-95704 Cable Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63205-95704 |
US $958.05 |
||
|
63205C
|
63205C
63205-95705
Cable Sub-Assy, Tilt Roof Drive
[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63205-95705 |
— | ||
|
63209
|
63209
63230-95700 Panel Sub-Assy, Roof Wind Deflector[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63230-95700 |
US $54.89 |
||
| replacement | |||||
|
63209
|
63209
63230-26010 Panel Assy, Roof Wind Deflector[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63230-26010 |
US $41.06 |
||
|
63210
|
63210
63201-95703 Glass Sub-Assy, Sliding Roof Or Removable Roof[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63201-95703 |
US $2,184 |
||
|
63217E
|
63217E
63217-95702 Garnish, Sliding Roof, Front Rh[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63217-95702 |
US $11.36 |
||
| replacement | |||||
|
63217E
|
63217E
63217-95702-01 Garnish, Sliding Roof, Front Rh[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63217-95702-01 |
US $11.36 |
||
|
63218A
|
63218A
63221-95701 Hose(For Sliding Roof Or Removable Roof Drain)[04.1984 - 05.1985] CM20,YM21..MRF..(FXV,GXL) L=1630 |
63221-95701 |
US $27.81 |
||
| replacement | |||||
|
63218A
|
63218A
63249-95J05 Hose(For Sliding Roof Or Removable Roof Drain)[04.1984 - 05.1985] CM20,YM21..MRF..(FXV,GXL) L=1630 |
63249-95J05 |
US $32.18 |
||
|
63218A
|
63218A
63221-95703 Hose(For Sliding Roof Or Removable Roof Drain)[05.1985 - 08.1985] CM20,YM21..MRF..(FXV,GXL) L=1630 |
63221-95703 |
US $28.83 |
||
| replacement | |||||
|
63218A
|
63218A
63249-95J05 Hose(For Sliding Roof Or Removable Roof Drain)[05.1985 - 08.1985] CM20,YM21..MRF..(FXV,GXL) L=1630 |
63249-95J05 |
US $32.18 |
||
|
63218A
|
63218A
63223-95702 Hose(For Sliding Roof Or Removable Roof Drain)[02.1983 - 12.1983] CM20,YM21..(HRF,MRF)..(07S,08S) L=1580 |
63223-95702 |
US $26.50 |
||
| replacement | |||||
|
63218A
|
63218A
63249-95J05 Hose(For Sliding Roof Or Removable Roof Drain)[02.1983 - 12.1983] CM20,YM21..(HRF,MRF)..(07S,08S) L=1580 |
63249-95J05 |
US $32.18 |
||
|
63218A
|
63218A
63249-95701 Hose(For Sliding Roof Or Removable Roof Drain)[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) L=75 |
63249-95701 |
US $4.95 |
||
| replacement | |||||
|
63218A
|
63218A
63249-95703
Hose(For Sliding Roof Or Removable Roof Drain)
[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) L=75 |
63249-95703 |
— | ||
|
63218E
|
63218E
63218-95703 Garnish, Sliding Roof, Front LhSLIDING ROOF, FRONT LH [04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63218-95703 |
US $11.50 |
||
|
63234
|
63234
63234-95701 Protector, Slide Roof Housing[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63234-95701 |
US $8.59 |
||
|
63245
|
63245
63245-89101 Holder, Removable Roof Glass, Outer Front[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63245-89101 |
US $18.05 |
||
|
63246
|
63246
63246-89101 Holder, Removable Roof Glass, Inner Front[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63246-89101 |
US $17.33 |
||
|
63248
|
63248
63258-95702 Joint, Slide Roof Drain Hose, Rh[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63258-95702 |
US $8.74 |
||
|
63249
|
63249
63258-95702 Joint, Slide Roof Drain Hose, Rh[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63258-95702 |
US $8.74 |
||
|
63249A
|
63249A
63249-95700 Supporter, Water Hose[05.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63249-95700 |
US $7.28 |
||
|
63251B
|
63251B
63251-95700 Weatherstrip, Tilt Roof, Outer[04.1982 - 12.1984] CM20,TM20,YM21..MRF |
63251-95700 |
US $251.89 |
||
| replacement | |||||
|
63251B
|
63251B
63251-95705
Weatherstrip, Tilt Roof, Outer
[04.1982 - 12.1984] CM20,TM20,YM21..MRF |
63251-95705 |
— | ||
|
63251B
|
63251B
63251-95705
Weatherstrip, Tilt Roof, Outer
[12.1984 - 08.1985] CM20,YM21..MRF |
63251-95705 |
— | ||
|
63253
|
63253
63245-89101 Holder, Removable Roof Glass, Outer Front[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63245-89101 |
US $18.05 |
||
|
63254C
|
63254C
63254-95700 Weatherstrip, Slide Roof, Rear[02.1984 - 08.1985] CM20,YM21..MRF..(FXV,GXL) |
63254-95700 |
US $7.28 |
||
|
63255B
|
63255B
63256-95700
Seal, Tilt Roof, Outer Rear
[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63256-95700 |
— | ||
|
63260A
|
63260A
63260-95703 Gear Sub-Assy, Sliding Roof Drive[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) W/MOTOR |
63260-95703 |
US $723.63 |
||
|
63260B
|
63260B
85638-95701 Spacer, Sliding Roof Motor Drive[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
85638-95701 |
US $12.67 |
||
|
63260C
|
63260C
63266-95702-03 Handle Assy, Tilt Roof Lock[10.1982 - 08.1985] CM20,YM21..HRF..(FXV,GXL,MTP) GRAY,GRAY; CM20,YM21..MRF GRAY,GRAY |
63266-95702-03 |
US $15.43 |
||
| replacement | |||||
|
63260C
|
63260C
63266-95702-13 Handle Assy, Tilt Roof Lock[10.1982 - 08.1985] CM20,YM21..HRF..(FXV,GXL,MTP) GRAY,GRAY; CM20,YM21..MRF GRAY,GRAY |
63266-95702-13 |
US $15.43 |
||
|
63260C
|
63260C
63266-95702-08 Handle Assy, Tilt Roof Lock[10.1982 - 08.1985] CM20,YM21..HRF..(FXV,GXL,MTP) IVORY,IVORY; CM20,YM21..MRF IVORY,IVORY |
63266-95702-08 |
US $15.43 |
||
|
63260D
|
63260D
63206-95703
Gear Sub-Assy, Tilt Roof Drive
[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63206-95703 |
— | ||
|
63261
|
63261
63261-95702 Shoe, Sliding Roof, Front[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) RH |
63261-95702 |
US $19.66 |
||
|
63261
|
63261
63262-95702 Shoe, Sliding Roof, Front[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) LH |
63262-95702 |
US $19.66 |
||
|
63271A
|
63271A
63271-95701-03 Garnish, Tilt Roof Lock[10.1982 - 08.1985] CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,GRAY |
63271-95701-03 |
US $9.17 |
||
| replacement | |||||
|
63271A
|
63271A
63271-95701-13
Garnish, Tilt Roof Lock
[10.1982 - 08.1985] CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) GRAY,GRAY |
63271-95701-13 |
— | ||
|
63271A
|
63271A
63271-95701-08 Garnish, Tilt Roof Lock[10.1982 - 08.1985] CM20,YM21..(HRF,MRF)..(FXV,GXL,MTP,S) IVORY,IVORY |
63271-95701-08 |
US $9.17 |
||
|
63277
|
63277
63277-95701 Shim, Sliding Roof Rail[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63277-95701 |
US $4.08 |
||
|
63285A
|
63285A
63285-95700 Dam, Sliding Roof Housing[06.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63285-95700 |
US $24.61 |
||
| replacement | |||||
|
63285A
|
63285A
63285-87010 Dam, Sliding Roof Housing[06.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63285-87010 |
US $15.43 |
||
|
63285B
|
63285B
63285-87004 Cover, Sliding Roof Housing Drain, Front[05.1985 - 08.1985] CM20,YM21..MRF..(FXV,GXL) |
63285-87004 |
US $8.74 |
||
|
63605
|
63605
63605-95700
Hinge Sub-Assy, Tilt Roof, Rh
[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63605-95700 |
— | ||
|
63606
|
63606
63606-95700
Hinge Sub-Assy, Tilt Roof, Lh
[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63606-95700 |
— | ||
|
63617
|
63617
63617-95700
Garnish, Sliding Roof, Rear Rh
[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63617-95700 |
— | ||
|
63618
|
63618
63618-95700
Garnish, Sliding Roof, Rear Lh
[04.1982 - 08.1985] CM20,TM20,YM21..MRF..(FXV,GXL) |
63618-95700 |
— | ||
|
63619
|
63619
63619-95702
Cover, Tilt Roof Panel
[04.1982 - 08.1985] CM20,TM20,YM21..MRF |
63619-95702 |
— | ||
|
9016440052
|
9016440052
90164-40052 New Genuine Part |
90164-40052 |
US $1.60 |
||
|
9016845003
|
9016845003
90168-45003 New Genuine Part |
90168-45003 |
US $1.46 |
||
|
9017905004
|
9017905004
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.03 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033340001
|
9033340001
90333-40001 Plate, Noise Control, No.1 |
90333-40001 |
from US $1.60 |
||
|
9046310010
|
9046310010
90463-10010 New Genuine Part |
90463-10010 |
US $3.20 |
||
|
9046717042
|
9046717042
90467-17042
Clip (For Control Shaft Dust Boot Set)
|
90467-17042 |
— | ||
| replacement | |||||
|
9046717042
|
9046717042
90467-17126 Clip Or Clamp(For Ventilation Hose) |
90467-17126 |
US $1.92 |
||
|
9046721152
|
9046721152
90467-21152 Clip Or Clamp(For Ventilation Hose) |
90467-21152 |
US $5.60 |
||
|
9048025001
|
9048025001
90480-25001 New Genuine Part |
90480-25001 |
US $3.35 |
||
|
9048032008
|
9048032008
90480-32008 New Genuine Part |
90480-32008 |
US $20.53 |
||
|
9324955008
|
9324955008
93249-55008 New Genuine Part |
93249-55008 |
US $0.73 |
||
|
9333914012
|
9333914012
93339-14012 New Genuine Part |
93339-14012 |
US $1.75 |
||
|
9338615010
|
9338615010
93386-15010 New Genuine Part |
93386-15010 |
US $1.46 |
||
|
9338615014
|
9338615014
93386-15014 New Genuine Part |
93386-15014 |
US $1.75 |
||
|
9353044014
|
9353044014
93530-44014 New Genuine Part |
93530-44014 |
US $1.60 |
||
|
9354624516
|
9354624516
93546-24516 New Genuine Part |
93546-24516 |
US $3.68 |
||
