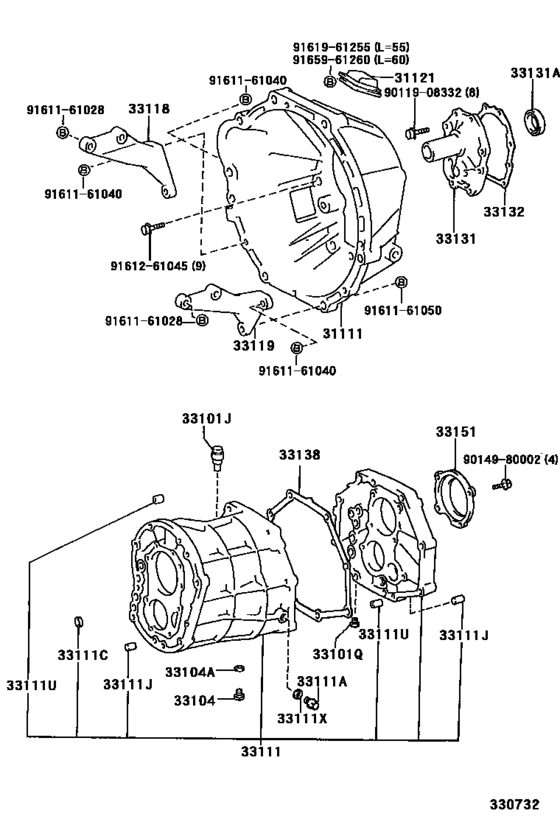

Clutch Housing & Transmission Case (Mtm) ([10.1986 - 06.1999] (8610-9906)YM60 ; (8610-9906)YM55,65..5H) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- YM60
- grade
- SPX
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-28020 Housing, Clutch[10.1986 -] YM60;YM55,65..5H |
31111-28020 |
US $318.86 |
||
|
31121
|
31121
31121-30040 Cover, Clutch Housing, No.1[10.1986 - 09.1993] YM60;YM55,65..5H |
31121-30040 |
US $19.95 |
||
| replacement | |||||
|
31121
|
31121
31121-35020 Cover, Clutch Housing, No.1[10.1986 - 09.1993] YM60;YM55,65..5H |
31121-35020 |
US $16.31 |
||
|
31121
|
31121
31121-35020 Cover, Clutch Housing, No.1[09.1993 -] YM55,6#..MTM |
31121-35020 |
US $16.31 |
||
|
33101J
|
33101J
90930-03085 Plug, Breather[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H |
90930-03085 |
US $6.33 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[03.1995 - 06.1998] KM51..MTM OD=24,*103; YM55,6#..MTM |
90341-18006 |
from US $3.23 |
||
|
33104
|
33104
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [06.1998 - 06.1999] CM5#,6#,KM51,YM55,6#..MTM |
90341-18032 |
from US $3.76 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[10.1986 - 09.1991] KM5#,YM55,6#..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6#..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-28020 Case, Manual Transmission[08.1988 - 09.1991] YM60;KM51,YM55,65..5F,5H |
33101-28020 |
US $628.99 |
||
| replacements | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[08.1988 - 09.1991] YM60;KM51,YM55,65..5F,5H |
33101-26060 |
US $438.55 |
||
|
33111
|
33111
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [08.1988 - 09.1991] YM60;KM51,YM55,65..5F,5H |
90341-18032 |
from US $3.76 |
||
|
33111
|
33111
33101-35060
Case, Manual Transmission
[06.1998 - 06.1999] CM5#,6#,KM51,YM55,6#..MTM |
33101-35060 |
— | ||
| replacement | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[06.1998 - 06.1999] CM5#,6#,KM51,YM55,6#..MTM |
33101-26060 |
US $438.55 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6#..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H 外径＝１４ |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H 長さ＝１４，外径＝１５ |
90253-15001 |
from US $1.07 |
||
|
33111X
|
33111X
90430-18008 Gasket[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6#..MTM |
90430-T0021 |
US $1.01 |
||
|
33118
|
33118
33118-28010
Plate, Stiffener, Rh(Mtm)
[10.1986 -] YM55,6#..MTM |
33118-28010 |
— | ||
|
33119
|
33119
33119-28010 Plate, Stiffener, Lh(Mtm)[10.1986 -] YM55,6#..MTM |
33119-28010 |
US $20.53 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H |
33131-26020 |
US $70.41 |
||
|
33131A
|
33131A
90311-30010
Seal, Oil(For Transmission Front Bearing Retainer)
[08.1988 - 07.1990] YM60;CM5#,6#,KM51..5F,5H |
90311-30010 |
— | ||
| replacement | |||||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[08.1988 - 07.1990] YM60;CM5#,6#,KM51..5F,5H |
90311-30014 |
from US $5.38 |
||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[07.1990 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H |
90311-30014 |
from US $5.38 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[10.1986 - 08.1988] YM60;CM50,55,6#,KM51..5F,5H |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[10.1986 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H |
33132-28010 |
from US $3.55 |
||
|
33138
|
33138
33138-28010 Gasket, Intermediate Plate[10.1986 - 08.1988] YM60;CM50,55,6#,KM51..5F,5H |
33138-28010 |
US $9.76 |
||
|
33151
|
33151
33151-28010
Retainer, Output Shaft Rear Bearing(Mtm)
[10.1986 - 08.1988] YM60;CM50,55,6#,KM51..5F,5H |
33151-28010 |
— | ||
|
33151
|
33151
33151-35030 Retainer, Output Shaft Rear Bearing(Mtm)[08.1988 - 10.1993] YM60;CM5#,6#,KM51,YM55,65..5F,5H |
33151-35030 |
from US $20.16 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161050
|
9161161050
91611-61050
Bolt(For Transaxle & Engine Setting)
|
91611-61050 |
— | ||
| replacement | |||||
|
9161161050
|
9161161050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.27 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
|
9165961260
|
9165961260
91659-61260 Bolt(For Transaxle & Engine Setting) |
91659-61260 |
US $3.64 |
||
