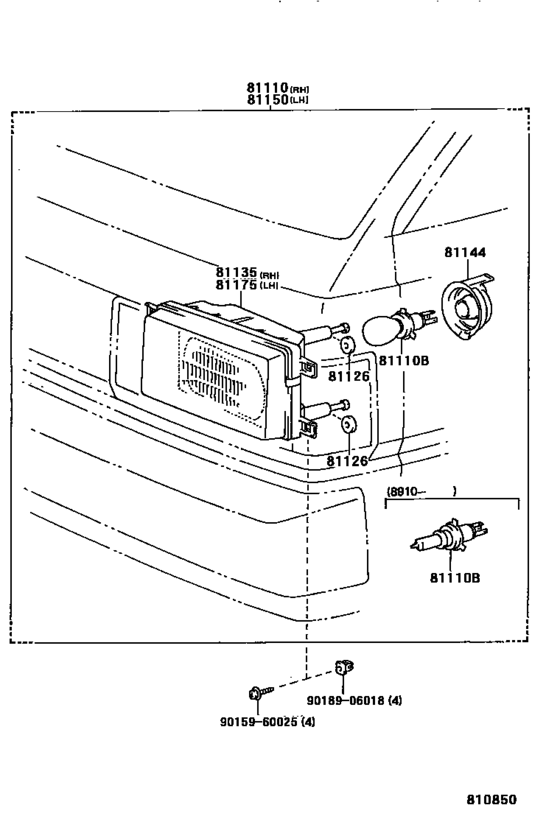

Headlamp ([10.1986 - ] CM55,65,YM65..ｷﾔﾝﾋﾟﾝｸﾞｶｰｼﾖｳ (8610- )SPX ; (8910- )CM55..4HC ; (8910- )CM65,YM65..IV) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- YM60
- grade
- SPX
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-27070 Headlamp Assy, Rh[11.1996 - 06.1999] KM51,YM60..SPX |
81110-27070 |
US $307.22 |
||
|
81110
|
81110
81110-95735 Headlamp Assy, Rh[10.1986 - 10.1989] KM51,YM60..SPX |
81110-95735 |
US $385.84 |
||
|
81110
|
81110
81110-95736 Headlamp Assy, Rh[10.1989 - 11.1996] KM51,YM60..SPX |
81110-95736 |
US $401.86 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [10.1989 - 10.1993] CM5#,6#,KM5#,YM55,6# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-13022 Bulb(For Headlamp, No.1)[10.1986 - 10.1989] KM51,YM60..SPX １２Ｖ ６５／６０Ｗ，ホワイト |
90981-13022 |
US $21.84 |
||
|
81126
|
81126
81124-95735 Plate, Headlamp[10.1986 -] KM51,YM60..SPX |
81124-95735 |
US $3.35 |
||
|
81135
|
81135
81130-27070 Unit Assy, Headlamp, Rh[11.1996 -] KM51,YM60..SPX |
81130-27070 |
US $235.87 |
||
|
81135
|
81135
81130-95736 Unit Assy, Headlamp, Rh[10.1989 - 11.1996] KM51,YM60..SPX |
81130-95736 |
US $340.70 |
||
|
81144
|
81144
81139-20730 Cover, Headlamp, No.1[10.1986 - 11.1996] KM51,YM60..SPX |
81139-20730 |
US $20.50 |
||
|
81150
|
81150
81150-27070 Headlamp Assy, Lh[11.1996 - 06.1999] KM51,YM60..SPX |
81150-27070 |
US $307.22 |
||
|
81150
|
81150
81150-95735 Headlamp Assy, Lh[10.1986 - 10.1989] KM51,YM60..SPX |
81150-95735 |
US $385.84 |
||
|
81150
|
81150
81150-95736 Headlamp Assy, Lh[10.1989 - 11.1996] KM51,YM60..SPX |
81150-95736 |
US $401.86 |
||
|
81175
|
81175
81170-27070 Unit Assy, Headlamp, Lh[11.1996 -] KM51,YM60..SPX |
81170-27070 |
US $235.87 |
||
|
81175
|
81175
81170-95735 Unit Assy, Headlamp, Lh[10.1986 - 10.1989] KM51,YM60..SPX |
81170-95735 |
US $345.07 |
||
|
81175
|
81175
81170-95736 Unit Assy, Headlamp, Lh[10.1989 - 11.1996] KM51,YM60..SPX |
81170-95736 |
US $340.70 |
||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.58 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
