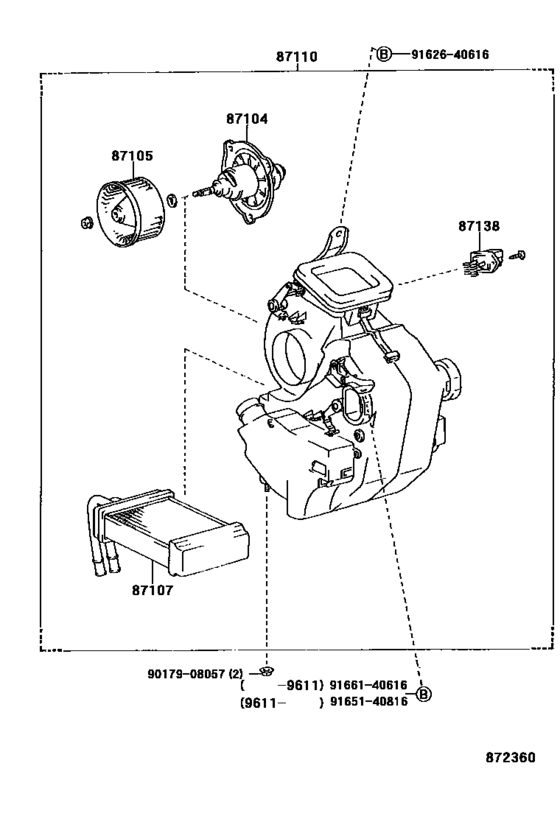

Heating & Air Conditioning - Heater Unit & Blower ([10.1986 - ] (8610- )) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- YM60
- grade
- SPX
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104
|
87104
87104-95705 Motor Sub-Assy, Heater Blower[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
87104-95705 |
US $341.64 |
||
|
87105
|
87105
87105-16020
Fan Sub-Assy, Heater Blower
[10.1986 - 10.1993] CM5#,6#,KM5#,YM55,6# |
87105-16020 |
— | ||
|
87107
|
87107
87107-95706
Unit Sub-Assy, Heater Radiator
[10.1986 -] YM6#;YM55..4HC,5H;YM55..SJL..4H ｶﾝﾚｲﾁ ｼﾖｳ |
87107-95706 |
— | ||
|
87107
|
87107
87107-95713
Unit Sub-Assy, Heater Radiator
[10.1986 -] KM5#,YM55,6# |
87107-95713 |
— | ||
|
87110
|
87110
87110-27050
Heater Assy
[10.1991 - 11.1996] KM51,YM60..SPX; KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹｰｼﾞ |
87110-27050 |
— | ||
|
87110
|
87110
87110-27051
Heater Assy
[11.1996 -] KM51,YM60..SPX; KM51,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹｰｼﾞ |
87110-27051 |
— | ||
|
87110
|
87110
87110-27060
Heater Assy
[05.1993 - 11.1996] YM55,6# ｶﾝﾚｲﾁ ｼﾖｳ |
87110-27060 |
— | ||
|
87110
|
87110
87110-27061
Heater Assy
[11.1996 -] CM52,61; YM55,6# ｶﾝﾚｲﾁ ｼﾖｳ; CM51,55,60,65 ｴｸｽﾄﾗ ﾊﾟﾂｹｰｼﾞ |
87110-27061 |
— | ||
|
87110
|
87110
87110-95734
Heater Assy
[10.1986 - 04.1987] KM5#,YM55,60 |
87110-95734 |
— | ||
| replacements | |||||
|
87110
|
87110
87110-95748
Heater Assy
[10.1986 - 04.1987] KM5#,YM55,60 |
87110-95748 |
— | ||
|
87110
|
87110
87231-95703
Hose, Heater Defroster, Rh
[10.1986 - 04.1987] KM5#,YM55,60 |
87231-95703 |
— | ||
|
87110
|
87110
87110-95736
Heater Assy
[10.1986 - 04.1987] YM55,60 ｶﾝﾚｲﾁ ｼﾖｳ |
87110-95736 |
— | ||
| replacements | |||||
|
87110
|
87110
87110-95750
Heater Assy
[10.1986 - 04.1987] YM55,60 ｶﾝﾚｲﾁ ｼﾖｳ |
87110-95750 |
— | ||
|
87110
|
87110
87231-95703
Hose, Heater Defroster, Rh
[10.1986 - 04.1987] YM55,60 ｶﾝﾚｲﾁ ｼﾖｳ |
87231-95703 |
— | ||
|
87110
|
87110
87110-95748
Heater Assy
[04.1987 - 10.1991] KM5#,YM55,6# |
87110-95748 |
— | ||
|
87110
|
87110
87110-95750
Heater Assy
[04.1987 - 05.1993] YM6#;YM55..5H;YM55..SJL..4H ｶﾝﾚｲﾁ ｼﾖｳ |
87110-95750 |
— | ||
|
87138
|
87138
87138-27020
Resistor, Heater Blower
[11.1991 - 10.1993] CM5#,6#,KM51,YM55,6# |
87138-27020 |
— | ||
|
87138
|
87138
87138-95707
Resistor, Heater Blower
[10.1986 - 11.1991] CM5#,6#,KM5#,YM55,6# |
87138-95707 |
— | ||
| replacement | |||||
|
87138
|
87138
87138-27020
Resistor, Heater Blower
[10.1986 - 11.1991] CM5#,6#,KM5#,YM55,6# |
87138-27020 |
— | ||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.76 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
