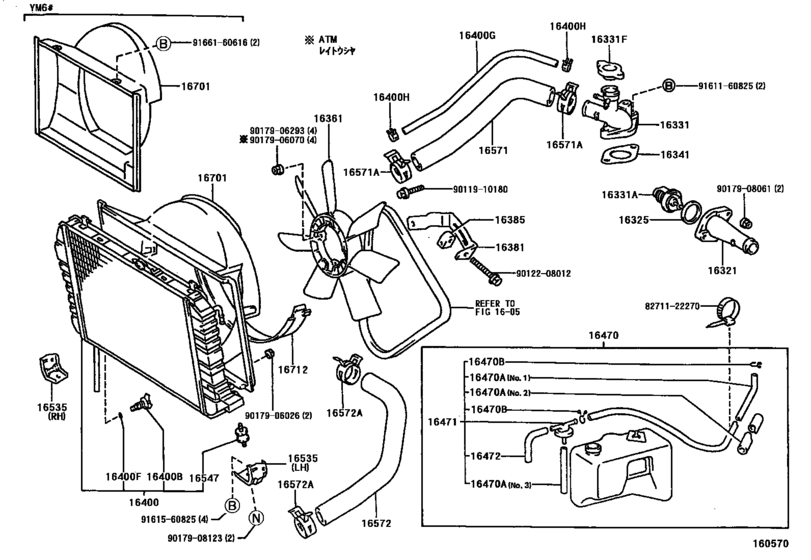

Radiator & Water Outlet ([10.1986 - ] (8610- )2Y) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- YM60
- grade
- SPX
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16321
|
16321
16321-71010 Inlet, Water[10.1986 -] 2Y..YM55,6# |
16321-71010 |
from US $38.14 |
||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[10.1986 - 01.1993] 1C,2C..CM5#,6#; 2Y..YM55,6# |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[10.1986 - 01.1993] 1C,2C..CM5#,6#; 2Y..YM55,6# |
16325-63011 |
from US $3.88 |
||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[01.1993 -] 2Y..YM55,6# |
16325-63011 |
from US $3.88 |
||
|
16331
|
16331
16304-71010 Outlet, Water[10.1986 -] 2Y..YM55,6# |
16304-71010 |
from US $50.62 |
||
|
16331A
|
16331A
90916-03046 Thermostat[01.1992 -] 2Y..YM55,6# ＊ＷＡＸ ８２−９５ |
90916-03046 |
from US $22.39 |
||
|
16331A
|
16331A
90916-03069
Thermostat
[10.1986 - 01.1992] 2Y..YM55,6# ＊ＷＡＸ ８２−９５ |
90916-03069 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03046 Thermostat[10.1986 - 01.1992] 2Y..YM55,6# ＊ＷＡＸ ８２−９５ |
90916-03046 |
from US $22.39 |
||
|
16331F
|
16331F
16401-15210 Cap Sub-Assy(For Water Outlet)[10.1986 - 11.1987] 2Y..YM55,60 TOYO RADIATOR |
16401-15210 |
US $19.66 |
||
|
16331F
|
16331F
16401-63010 Cap Sub-Assy,[10.1986 - 11.1987] 2Y..YM55,60 DENSO |
16401-63010 |
from US $19.66 |
||
|
16341
|
16341
16341-71010
Gasket, Water Outlet
[10.1986 - 12.1989] 2Y..YM55,60 |
16341-71010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-71011 Gasket, Water Outlet[10.1986 - 12.1989] 2Y..YM55,60 |
16341-71011 |
US $3.05 |
||
|
16341
|
16341
16341-71011 Gasket, Water Outlet[12.1989 - 07.1997] 2Y..YM55,6# |
16341-71011 |
US $3.05 |
||
|
16341
|
16341
16341-73010 Gasket, Water Outlet[07.1997 -] 2Y..YM55,6# |
16341-73010 |
US $3.05 |
||
|
16361
|
16361
16361-44041
Fan
[10.1986 -] 2Y..YM6# |
16361-44041 |
— | ||
|
16381
|
16381
16381-73011 Bar, Fan Belt Adjusting[10.1986 -] 2Y..YM55,6# |
16381-73011 |
US $28.68 |
||
|
16385
|
16385
16385-71010 Slider, Fan Belt Adjusting[10.1986 -] 2Y..YM55,6# |
16385-71010 |
US $12.23 |
||
|
16400
|
16400
16400-73280
Radiator Assy
[10.1986 -] 2Y..YM6# |
16400-73280 |
— | ||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[10.1986 -] 2Y..YM55,6# |
16417-24200 |
from US $3.59 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[10.1986 - 10.1996] 2Y..YM55,6# |
16418-24200 |
from US $1.27 |
||
|
16400F
|
16400F
16418-50121 Packing(For Radiator Drain Cock)[10.1996 -] 2Y..YM55,6#; 5K..KM51 |
16418-50121 |
US $3.76 |
||
|
16400G
|
16400G
99555-10460
Hose(For Radiator Breather)
[10.1986 -] 2Y..YM6# ＊Ｈ，Ｌ＝４６０ |
99555-10460 |
— | ||
| replacement | |||||
|
16400G
|
16400G
99555-10500 Hose, Water, No.1[10.1986 -] 2Y..YM6# ＊Ｈ，Ｌ＝４６０ |
99555-10500 |
from US $19.32 |
||
|
16400H
|
16400H
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[10.1986 -] 2Y..YM55,6# |
90467-13001 |
— | ||
| replacement | |||||
|
16400H
|
16400H
96135-51300 Clamp, Hose[10.1986 -] 2Y..YM55,6# |
96135-51300 |
from US $2.13 |
||
|
16470
|
16470
16470-73020 Tank Assy, Radiator Reserve[10.1986 - 03.1988] 2Y..YM55,60 |
16470-73020 |
US $45.72 |
||
| replacement | |||||
|
16470
|
16470
16470-73011 Tank Assy, Radiator Reserve[10.1986 - 03.1988] 2Y..YM55,60 |
16470-73011 |
US $82.99 |
||
|
16470
|
16470
16470-73021 Tank Assy, Radiator Reserve[03.1988 - 08.1988] 2Y..YM55,60 |
16470-73021 |
US $45.72 |
||
| replacement | |||||
|
16470
|
16470
16470-73011 Tank Assy, Radiator Reserve[03.1988 - 08.1988] 2Y..YM55,60 |
16470-73011 |
US $82.99 |
||
|
16470
|
16470
16470-73022
Tank Assy, Radiator Reserve
[08.1988 -] 2Y..YM55,6# |
16470-73022 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-73012
Tank Assy, Radiator Reserve
[08.1988 -] 2Y..YM55,6# |
16470-73012 |
— | ||
|
16470A
|
16470A
85338-73010
Hose Or Pipe(For Radiator Reserve Tank)
[10.1986 -] 2Y..YM55,6# ＮＯ．１ |
85338-73010 |
— | ||
|
16470A
|
16470A
85338-73030
Hose Or Pipe(For Radiator Reserve Tank)
[10.1986 -] 2Y..YM55,6# 長さ＝４００,ＮＯ．２ |
85338-73030 |
— | ||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[10.1986 -] 2Y..YM55,6# ＊Ｈ，Ｌ＝１０５,ＮＯ．３ |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[10.1986 -] 2Y..YM55,6# |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16471-73010
Cap Sub-Assy, Reserve Tank
[10.1986 - 03.1988] 2Y..YM55,60 |
16471-73010 |
— | ||
| replacement | |||||
|
16471
|
16471
16471-73011
Cap Sub-Assy, Reserve Tank
[10.1986 - 03.1988] 2Y..YM55,60 |
16471-73011 |
— | ||
|
16471
|
16471
16471-73011
Cap Sub-Assy, Reserve Tank
[03.1988 - 08.1988] 2Y..YM55,60 |
16471-73011 |
— | ||
|
16471
|
16471
16471-73012
Cap Sub-Assy, Reserve Tank
[08.1988 -] 2Y..YM55,6# |
16471-73012 |
— | ||
|
16472
|
16472
85338-30010
Hose(For Radiator Drain Cock)
[10.1986 - 02.1993] 4K,5K..KM5#; 2Y..YM55,6# |
85338-30010 |
— | ||
|
16472
|
16472
85338-73012
Hose, Breather
[02.1993 -] 2Y..YM55,6# |
85338-73012 |
— | ||
|
16535
|
16535
16533-64080 Support, Radiator, Lower[10.1986 - 11.1987] 2Y..YM60 RH; 2C..CM6# RH |
16533-64080 |
US $28.25 |
||
|
16535
|
16535
16534-64020 Support, Radiator, Lower[10.1986 - 11.1987] 2Y..YM60 LH; 2C..CM6# LH |
16534-64020 |
US $26.64 |
||
|
16547
|
16547
16547-67040 Bush, Radiator Support, No.1[10.1996 -] 2Y..YM55,6# |
16547-67040 |
from US $5.71 |
||
|
16571
|
16571
16571-73060
Hose, Radiator, Inlet
[10.1986 -] 2Y..YM6# |
16571-73060 |
— | ||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[10.1986 -] 2Y..YM55,6# |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[10.1986 -] 2Y..YM55,6# |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-73050
Hose, Radiator, Outlet
[10.1986 -] 2Y..YM6# |
16572-73050 |
— | ||
|
16572A
|
16572A
90467-37001
Clip(For Water Inlet Hose)
[10.1986 -] 2Y..YM55,6# |
90467-37001 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[10.1986 -] 2Y..YM55,6# |
90467-37003 |
from US $4.56 |
||
|
16701
|
16701
16711-73050 Shroud Sub-Assy, Fan[10.1986 -] 2Y..YM6# |
16711-73050 |
US $84.45 |
||
|
16712
|
16712
16712-73050 Shroud, Fan, No.2[10.1986 -] 2Y..YM6# |
16712-73050 |
US $24.90 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9011910180
|
9011910180
90119-10180 Bolt (For Transfer Extension Rear Housing) |
90119-10180 |
US $2.33 |
||
|
9012208012
|
9012208012
90122-08012 BOLT |
90122-08012 |
US $4.12 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.84 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.76 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
