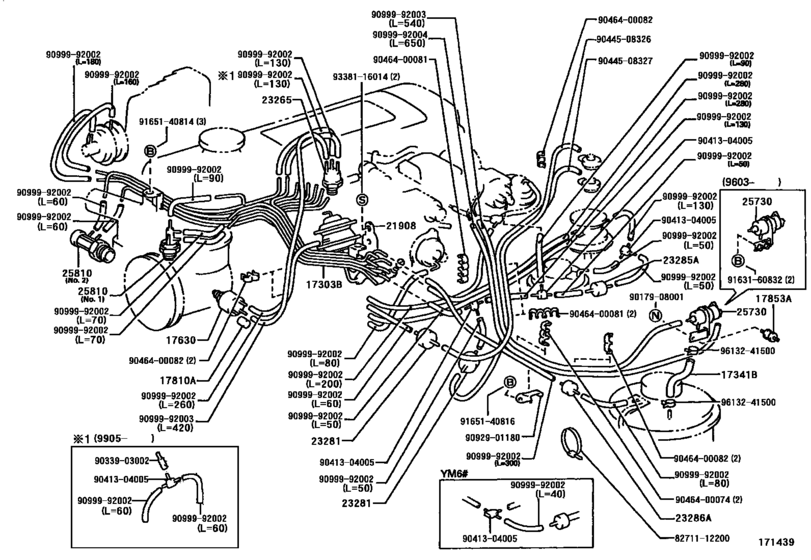

Vacuum Piping ([08.1995 - ] (9508- )2Y) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- YM60
- grade
- SPX
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-71011 Pipe Sub-Assy, Air, No.1[08.1995 -] 2Y..YM55,6# |
17303-71011 |
US $131.04 |
||
|
17303B
|
17303B
17303-72020 Pipe Sub-Assy, Air, No.1[10.1986 - 08.1988] 2Y..YM55,60 |
17303-72020 |
US $158.70 |
||
| replacement | |||||
|
17303B
|
17303B
17303-72021 Pipe Sub-Assy, Air, No.1[10.1986 - 08.1988] 2Y..YM55,60 |
17303-72021 |
US $161.62 |
||
|
17303B
|
17303B
17303-72021 Pipe Sub-Assy, Air, No.1[08.1988 - 08.1995] 2Y..YM55,6# |
17303-72021 |
US $161.62 |
||
|
17341B
|
17341B
17341-72100 Hose, No.1(For Air Injection System)[08.1995 - 03.1996] 2Y..YM55,6# |
17341-72100 |
US $9.90 |
||
|
17341B
|
17341B
17341-72101 Hose, No.1(For Air Injection System)[03.1996 -] 2Y..YM55,6# |
17341-72101 |
US $10.05 |
||
|
17630
|
17630
17630-28020 Valve Assy, Air Control[10.1986 - 11.1987] 2Y..YM55,60 W/POWER STEERING; 5K..KM51 W/POWER STEERING |
17630-28020 |
US $205.30 |
||
|
17810A
|
17810A
90925-06007 Filter Assy, Air[10.1986 -] 2Y..YM55,6# |
90925-06007 |
US $7.86 |
||
|
17853A
|
17853A
17853-38010
Bush(For Sub Radiator)
[08.1995 - 03.1996] 2Y..YM55,6# |
17853-38010 |
— | ||
|
21908
|
21908
21908-71010 Actuator Sub-Assy, Idle-Up[10.1986 -] 2Y..YM55,6# |
21908-71010 |
US $170.35 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[10.1986 - 04.1990] 2Y..YM55,60 |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[10.1986 - 04.1990] 2Y..YM55,60 |
90917-11027 |
from US $26.21 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[04.1990 -] 2Y..YM55,6# |
90917-11027 |
from US $26.21 |
||
|
23281
|
23281
90925-01021 Valve, Vacuum Transmitting, No.1[10.1986 - 08.1990] 2Y..YM55,60 |
90925-01021 |
from US $18.35 |
||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[08.1990 - 08.1995] 2Y..YM55,6# |
90925-01041 |
— | ||
|
23281
|
23281
90925-01084
Valve, Vacuum Transmitting, No.1
[08.1995 -] 2Y..YM55,6# |
90925-01084 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[11.1987 -] 2Y..YM55,6# |
90917-10049 |
from US $6.03 |
||
|
23286A
|
23286A
90917-10049 Valve, Check, No.1[10.1986 -] 2Y..YM55,6# |
90917-10049 |
from US $6.03 |
||
|
25730
|
25730
25730-72030 Valve Assy, Electric Bleed Air Control[08.1995 - 03.1996] 2Y..YM55,6# |
25730-72030 |
US $208.21 |
||
|
25730
|
25730
25730-72031 Valve Assy, Electric Bleed Air Control[03.1996 -] 2Y..YM55,6# |
25730-72031 |
US $214.03 |
||
|
25810
|
25810
25810-27010
Valve, Bimetal Vacuum Switching, No.1
[08.1995 - 06.1999] 2Y..YM55,6# ＮＯ．１ |
25810-27010 |
— | ||
|
25810
|
25810
25820-37010 Valve Assy, Bimetal[08.1995 - 06.1999] 2Y..YM55,6# ＮＯ．２ |
25820-37010 |
US $72.16 |
||
|
25810
|
25810
90925-02077
Valve, Thermostatic Vacuum Switching, No.1
[10.1986 - 08.1995] 2Y..YM55,6# |
90925-02077 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9017908001
|
9017908001
90179-08001
New Genuine Part
|
90179-08001 |
— | ||
| replacement | |||||
|
9017908001
|
9017908001
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9044508326
|
9044508326
90445-08326 New Genuine Part |
90445-08326 |
US $9.17 |
||
|
9044508327
|
9044508327
90445-08327 New Genuine Part |
90445-08327 |
US $8.88 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9092901180
|
9092901180
90929-01180 New Genuine Part |
90929-01180 |
US $3.20 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9099992004
|
9099992004
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift) |
90999-92004 |
from US $8.99 |
||
|
9163160832
|
9163160832
91631-60832 New Genuine Part |
91631-60832 |
US $1.75 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
|
9613241500
|
9613241500
96132-41500 Clip(For Ventilation Tube) |
96132-41500 |
from US $1.48 |
||
