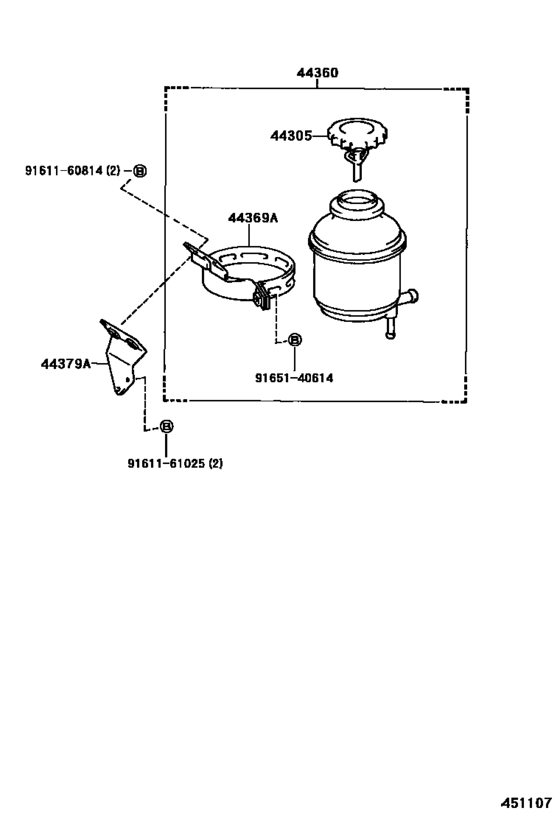

Vane Pump & Reservoir (Power Steering) ([10.1986 - ] (8610- )KM51,YM55,6#) Diagram Toyota LITE/ TOWNACE
- Year
- 1986 - 1999
- Sales region
- Japan
- Frame
- YM60
- grade
- SPX
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- Model
- LITE/TOWNACE TRUCK
- From
- 10.1986
- To
- 06.1999
- Gear Shift Type
- 5F
- Vehicle Model
- LITE/TOWNACE TRUCK
- Deck(Type)
- 1SO
- Building Condition
- CBU
- Deck(Material)
- TS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44305
|
44305
44305-32010 Cap Sub-Assy, Vane Pump Oil Reservoir[10.1986 -] YM55..SJL..MTM;CM50,51,55,YM60;KM51..(SJL,T1)..(3HC,4H,5F) |
44305-32010 |
US $20.97 |
||
|
44360
|
44360
44360-27020 Reservoir Assy, Vane Pump Oil[10.1986 - 06.1999] YM6#;KM51..JL;KM51,YM55..(3FC,3HC,4HC,5F)..CBU; KM51,YM55..(SJL,SJLC,T1)..MTM..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
44360-27020 |
US $138.32 |
||
|
44379A
|
44379A
44369-27050 Bracket, Oil Reservoir, No.2[10.1986 - 11.1987] CM65..CBU;KM51,YM55,60 |
44369-27050 |
US $20.68 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
