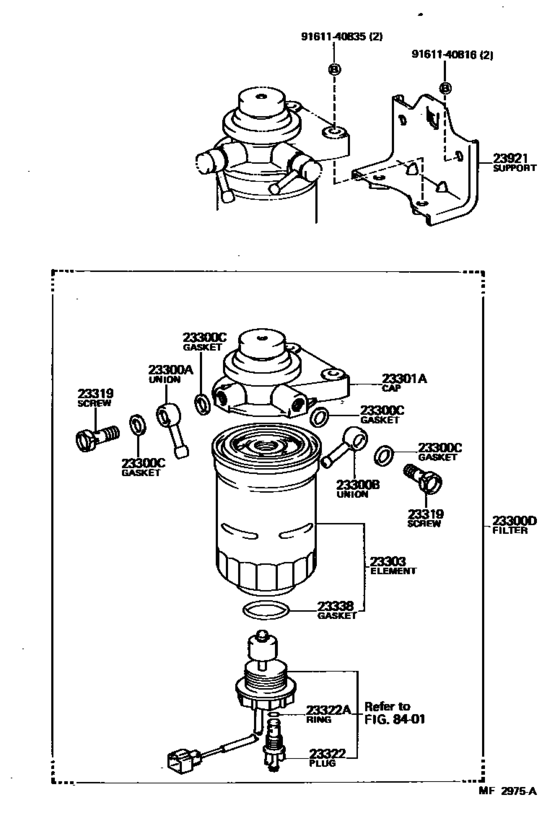

Fuel Filter ([10.1982 - ] (8210- )1C) Diagram Toyota LITEACE
- Year
- 1982 - 1985
- Sales region
- Europe
- Frame
- CM20
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- Model
- LITEACE
- From
- 10.1982
- To
- 08.1985
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Building Condition
- CBU
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300A
|
23300A
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[10.1982 - 08.1985] 1C..CM20 |
90405-08016 |
— | ||
|
23300B
|
23300B
90405-08016
Union, Nipple(For Fuel Filter Inlet)
[10.1982 - 08.1985] 1C..CM20 |
90405-08016 |
— | ||
|
23300C
|
23300C
22447-47030 Gasket, Nipple Union(For Fuel)[10.1982 - 08.1985] 1C..CM20 |
22447-47030 |
US $0.84 |
||
|
23300D
|
23300D
23300-64060
Filter Assy, Fuel(For Diesel)
[10.1982 - 08.1985] 1C..CM20 |
23300-64060 |
— | ||
|
23301A
|
23301A
23301-64010
Cap Assy, Fuel Filter
[10.1982 - 08.1985] 1C..CM20 |
23301-64010 |
— | ||
|
23303
|
23303
23303-64010 Element Sub-Assy, Fuel Filter[10.1982 - 08.1985] 1C..CM20 |
23303-64010 |
from US $57.11 |
||
| replacement | |||||
|
23303
|
23303
23303-64010-00
233036401000
[10.1982 - 08.1985] 1C..CM20 |
23303-64010-00 |
— | ||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[10.1982 - 08.1985] 1C..CM20 |
90099-18011 |
— | ||
|
23322
|
23322
23322-64010 Drain Plug (For a Level Warning Switch)[10.1982 - 08.1985] 1C..CM20 |
23322-64010 |
from US $11.20 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[10.1982 - 08.1985] 1C..CM20 |
23344-54010 |
from US $1.70 |
||
|
23338
|
23338
23344-64010 O-Ring (For Level Warning Switch)[10.1982 - 08.1985] 1C..CM20 |
23344-64010 |
from US $1.54 |
||
|
23921
|
23921
23921-64040
Support, Fuel Filter
[10.1982 - 08.1985] 1C..CM20 |
23921-64040 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161140835
|
9161140835
91611-40835
Bolt(For Clutch Release Cylinder Setting)
|
91611-40835 |
— | ||
| replacement | |||||
|
9161140835
|
9161140835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
