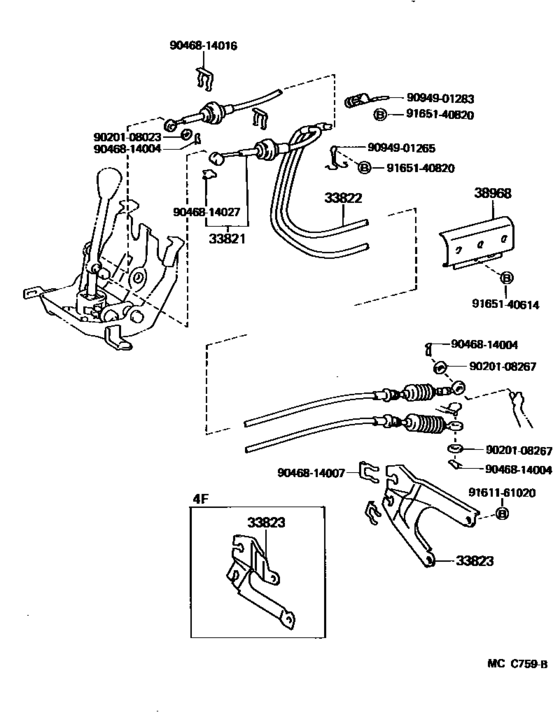

Shift Lever & Retainer ([09.1985 - ] (8509- )CM3#..4F,5F) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33821
|
33821
33821-27070 Cable Transmission Control Shift (For Floor Shift)[09.1985 - 08.1988] CM35..4F |
33821-27070 |
US $200.93 |
||
| replacement | |||||
|
33821
|
33821
33821-27160 Cable Transmission Control Shift (For Floor Shift)[09.1985 - 08.1988] CM35..4F |
33821-27160 |
US $205.30 |
||
|
33822
|
33822
33822-27070 Cable Transmission Control Select (For Floor Shift)[09.1985 - 08.1988] CM35..4F |
33822-27070 |
US $200.93 |
||
| replacement | |||||
|
33822
|
33822
33822-27160 Cable Transmission Control Select (For Floor Shift)[09.1985 - 08.1988] CM35..4F |
33822-27160 |
US $205.30 |
||
|
33823
|
33823
33823-27090 Bracket, Transmission Control Cable, No.1TRANSMISSION CONTROL CABLE, NO.1 [09.1985 - 08.1988] CM35..4F |
33823-27090 |
US $23.73 |
||
|
38968
|
38968
38968-27011 Protector, Control Cable[09.1985 - 08.1988] CM3#..4F,5F |
38968-27011 |
US $15.29 |
||
|
9020108023
|
9020108023
90201-08023 Washer, Plate (For Transfer Control Cable) |
90201-08023 |
US $0.73 |
||
|
9020108267
|
9020108267
90201-08267 Washer, Plate (For Transfer Control Cable) |
90201-08267 |
from US $0.90 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814007
|
9046814007
90468-14007 New Genuine Part |
90468-14007 |
US $2.48 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814027
|
9046814027
90468-14027 CLIP |
90468-14027 |
US $1.49 |
||
|
9094901265
|
9094901265
90949-01265 New Genuine Part |
90949-01265 |
US $8.15 |
||
|
9094901283
|
9094901283
90949-01283 New Genuine Part |
90949-01283 |
US $9.17 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
