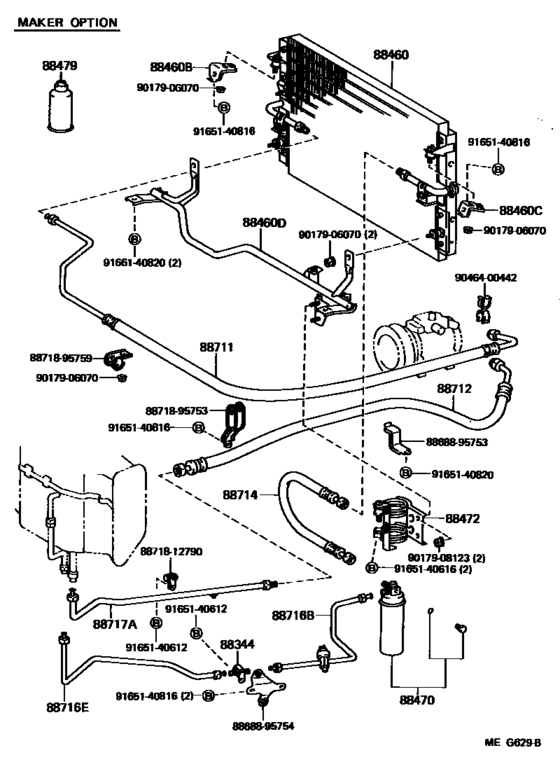

Heating & Air Conditioning - Cooler Piping ([09.1985 - ] (8509- )CM35..RHD..GEN) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 4F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88344
|
88344
88481-87002
Glass Sub-Assy, Sight
[09.1985 - 08.1988] YM30,35,4#; CM35..RHD;KM36..RHD..4H |
88481-87002 |
— | ||
|
88460
|
88460
88460-95710 Condenser Assy, Cooler[09.1985 - 08.1988] CM3#..RHD..GEN;KM36..RHD..4H..GEN MAKER OPTION |
88460-95710 |
US $438.26 |
||
|
88460B
|
88460B
88688-94743
Bracket, Cooler Condenser, No.1
[09.1985 - 08.1988] CM3#..RHD;KM36..RHD..4H |
88688-94743 |
— | ||
|
88460C
|
88460C
88688-95744
Bracket, Cooler Condenser, No.2
[09.1985 - 08.1988] YM30,35; KM36..4H;CM3#,KM37 |
88688-95744 |
— | ||
|
88460D
|
88460D
88688-95746
Bracket, Cooler Condenser, No.1
[09.1985 - 08.1988] YM30,35; CM3#..RHD;KM36..RHD..4H |
88688-95746 |
— | ||
|
88470
|
88470
88471-16010
Receiver & Dryer Assy, Cooler
[09.1985 - 08.1988] YM30,35,4#; KM36..4H;CM3#,KM37 MAKER OPTION |
88471-16010 |
— | ||
|
88472
|
88472
88472-95704
Bracket, Receiver Tank, No.1
[09.1985 - 08.1988] CM3#..RHD..GEN;KM36..RHD..4H..GEN MAKER OPTION |
88472-95704 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[09.1985 - 08.1988] KM36..4H;CM3#,KM37 400G |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[09.1985 - 08.1988] KM36..4H;CM3#,KM37 400G |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[09.1985 - 08.1988] KM36..4H;CM3#,KM37 400G |
90986-02005 |
— | ||
|
88711
|
88711
88711-95717 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [09.1985 - 08.1988] CM3#..RHD..GEN MAKER OPTION |
88711-95717 |
US $281.01 |
||
|
88712
|
88712
88712-95714 Hose, Cooler Refrigerant Suction, No.1[09.1985 - 08.1988] CM3#..RHD..GEN MAKER OPTION |
88712-95714 |
US $206.75 |
||
|
88714
|
88714
88721-95709 Hose, Cooler Refrigerant Liquid, No.1[09.1985 - 08.1988] YM30,35; CM3#..RHD;KM36..RHD..4H |
88721-95709 |
US $115.02 |
||
| replacement | |||||
|
88714
|
88714
88721-27060 Hose, Cooler Refrigerant Liquid, No.1[09.1985 - 08.1988] YM30,35; CM3#..RHD;KM36..RHD..4H |
88721-27060 |
US $58.82 |
||
|
88716B
|
88716B
88716-95732 Pipe, Cooler Refrigerant Liquid, B[09.1985 - 08.1988] YM35; CM3#..RHD;KM36..RHD..4H |
88716-95732 |
US $96.10 |
||
|
88716E
|
88716E
88716-95734 Pipe, Cooler Refrigerant Liquid, E[09.1985 - 08.1988] YM35; CM3#..RHD;KM36..RHD..4H |
88716-95734 |
US $60.72 |
||
|
88717A
|
88717A
88717-95722 Pipe, Cooler Refrigerant Suction, A[09.1985 - 08.1988] CM3#..RHD |
88717-95722 |
US $132.50 |
||
|
8868895753
|
8868895753
88688-95753
Bracket, Cooler Diaphragm
|
88688-95753 |
— | ||
|
8868895754
|
8868895754
88688-95754
Bracket, Cooler Diaphragm
|
88688-95754 |
— | ||
|
8871812790
|
8871812790
88718-12790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12790 |
— | ||
|
8871895753
|
8871895753
88718-95753
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95753 |
— | ||
|
8871895759
|
8871895759
88718-95759
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95759 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9046400442
|
9046400442
90464-00442 New Genuine Part |
90464-00442 |
US $3.64 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
