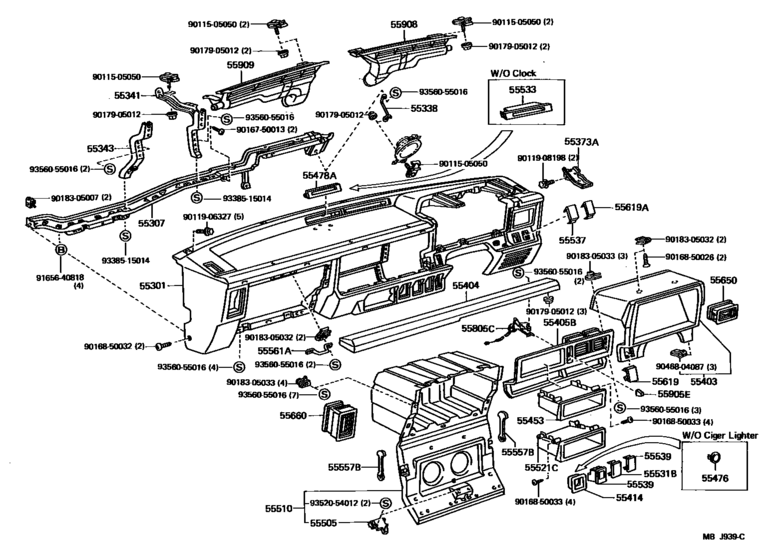

Instrument Panel & Glove Compartment ([09.1985 - ] (8509- )RHD) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55311-95713-06 Panel Sub-Assy, Instrument[09.1985 - 08.1988] CM3#,KM36,YM31,35,41..RHD BROWN,BROWN |
55311-95713-06 |
US $474.66 |
||
|
55307
|
55307
55307-95703 Reinforcement Sub-Assy, Instrument Panel, Lower[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD |
55307-95703 |
US $133.95 |
||
|
55338
|
55338
55338-95700 Extension, Instrument Panel Reinforcement, No.1[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD |
55338-95700 |
US $5.97 |
||
|
55341
|
55341
55306-95702 Brace, Instrument Panel, No.1[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55306-95702 |
US $29.41 |
||
|
55343
|
55343
55344-95700 Brace, Instrument Panel, No.3[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD |
55344-95700 |
US $18.05 |
||
|
55373A
|
55373A
55373-95700 Bracket, Oil Reservoir Tank[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD |
55373-95700 |
US $31.89 |
||
|
55403
|
55403
55403-95702-06 Hood Sub-Assy, Meter[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD BROWN,BROWN |
55403-95702-06 |
US $225.68 |
||
| replacement | |||||
|
55403
|
55403
55403-95702-16 Hood Sub-Assy, Meter[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD BROWN,BROWN |
55403-95702-16 |
US $225.68 |
||
|
55405B
|
55405B
55405-95703-06
Panel Sub-Assy, Instrument Cluster Finish, Center
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# W/FR HEATER,BROWN,BROWN |
55405-95703-06 |
— | ||
|
55414
|
55414
55414-95J00
Bezel, Cigar Lighter Hole
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55414-95J00 |
— | ||
|
55478A
|
55478A
55478-95701-06 Bezel, Auto Clock Hole[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN,BROWN |
55478-95701-06 |
US $9.90 |
||
|
55505
|
55505
55560-95704-06 Lock Sub-Assy, Glove Compartment Door[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN |
55560-95704-06 |
US $29.70 |
||
| replacement | |||||
|
55505
|
55505
55560-95J00-C0 Lock Assy, Seat Under Tray[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN |
55560-95J00-C0 |
US $29.70 |
||
|
55510
|
55510
55501-95707-06 Door Assy, Glove Compartment[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN,BROWN |
55501-95707-06 |
US $141.23 |
||
| replacement | |||||
|
55510
|
55510
55501-95707-E0 Door Assy, Glove Compartment[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN,BROWN |
55501-95707-E0 |
US $138.32 |
||
|
55521C
|
55521C
55308-95701
Box Sub-Assy, Instrument Panel, Center
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55308-95701 |
— | ||
|
55531B
|
55531B
55539-24010-06 Cover, Choke Knob Hole[09.1985 - 08.1988] CM3#,YM3#,4# BROWN,BROWN |
55539-24010-06 |
US $8.01 |
||
| replacement | |||||
|
55531B
|
55531B
55539-32010-C0 Cover, Cooler Switch Hole[09.1985 - 08.1988] CM3#,YM3#,4# BROWN,BROWN |
55539-32010-C0 |
from US $2.95 |
||
|
55533
|
55533
55423-95702-06 Cover, Auto Clock Hole[09.1985 - 08.1988] YM30,40..ARL BROWN,BROWN; CM3#,KM3#,YM31,35,41 BROWN,BROWN |
55423-95702-06 |
US $11.07 |
||
| replacement | |||||
|
55533
|
55533
55423-95702-13 Cover, Auto Clock Hole[09.1985 - 08.1988] YM30,40..ARL BROWN,BROWN; CM3#,KM3#,YM31,35,41 BROWN,BROWN |
55423-95702-13 |
US $10.92 |
||
|
55537
|
55537
55539-32010-26
Cover, Rear Window Defogger Switch Hole
[09.1985 - 08.1988] CM3#,KM37,YM35;KM36..SRF..STD BROWN,BROWN |
55539-32010-26 |
— | ||
| replacement | |||||
|
55537
|
55537
55539-32010-C0 Cover, Cooler Switch Hole[09.1985 - 08.1988] CM3#,KM37,YM35;KM36..SRF..STD BROWN,BROWN |
55539-32010-C0 |
from US $2.95 |
||
|
55539
|
55539
55539-24010-06 Cover, Choke Knob Hole[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# W/O RR HEATER,BROWN,BROWN |
55539-24010-06 |
US $8.01 |
||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# W/O RR HEATER,BROWN,BROWN |
55539-32010-C0 |
from US $2.95 |
||
|
55557B
|
55557B
55557-95700
Stopper, Glove Compertment Door Check
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55557-95700 |
— | ||
|
55561A
|
55561A
55561-95702 Striker, Glove Compartment Door Lock[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55561-95702 |
US $8.30 |
||
| replacement | |||||
|
55561A
|
55561A
55561-95704 Striker, Glove Compartment Door Lock[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55561-95704 |
US $8.30 |
||
|
55619
|
55619
55539-32010-26
Cover, Rear Window Defogger Switch Hole
[09.1985 - 08.1988] CM3#,KM3#,YM3# BROWN,BROWN |
55539-32010-26 |
— | ||
| replacement | |||||
|
55619
|
55619
55539-32010-C0 Cover, Cooler Switch Hole[09.1985 - 08.1988] CM3#,KM3#,YM3# BROWN,BROWN |
55539-32010-C0 |
from US $2.95 |
||
|
55619A
|
55619A
55539-32010-26
Cover, Rear Window Defogger Switch Hole
[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD BROWN,BROWN; KM37..SRF BROWN,BROWN |
55539-32010-26 |
— | ||
| replacement | |||||
|
55619A
|
55619A
55539-32010-C0 Cover, Cooler Switch Hole[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD BROWN,BROWN; KM37..SRF BROWN,BROWN |
55539-32010-C0 |
from US $2.95 |
||
|
55650
|
55650
55650-95701-06
Register Assy, Instrument Panel, No.1
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN,BROWN |
55650-95701-06 |
— | ||
|
55660
|
55660
55660-95701-06
Register Assy, Instrument Panel, No.2
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN,BROWN |
55660-95701-06 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-95701-13
Register Assy, Instrument Panel, No.2
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BROWN,BROWN |
55660-95701-13 |
— | ||
|
55805C
|
55805C
55805-95704 Bracket Sub-Assy, Air Damper Control Lever[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# |
55805-95704 |
US $14.27 |
||
|
55905E
|
55905E
55905-12050-01
Knob, Instrument Panel Register Control
[09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BLACK,BLACK |
55905-12050-01 |
— | ||
| replacement | |||||
|
55905E
|
55905E
55905-20230-C0 Knob, Instrument Panel Register ControlCONTROL [09.1985 - 08.1988] CM3#,KM3#,YM3#,4# BLACK,BLACK |
55905-20230-C0 |
US $5.62 |
||
|
55908
|
55908
55950-95702 Nozzle Sub-Assy, Defroster, Rh[09.1985 - 03.1987] CM35,KM3#,YM3#,4# |
55950-95702 |
US $39.60 |
||
| replacements | |||||
|
55908
|
55908
55950-95703 Nozzle Sub-Assy, Defroster, Rh[09.1985 - 03.1987] CM35,KM3#,YM3#,4# |
55950-95703 |
US $40.48 |
||
|
55908
|
55908
87231-95703
Hose, Heater Defroster, Rh
[09.1985 - 03.1987] CM35,KM3#,YM3#,4# |
87231-95703 |
— | ||
|
55908
|
55908
55950-95703 Nozzle Sub-Assy, Defroster, Rh[03.1987 - 08.1988] CM35,KM3#,YM30,35,4# |
55950-95703 |
US $40.48 |
||
|
55909
|
55909
55960-95701 Nozzle Sub-Assy, Defroster, Lh[09.1985 - 03.1987] CM35,KM3#,YM3#,4# |
55960-95701 |
US $39.60 |
||
| replacements | |||||
|
55909
|
55909
55960-95702 Nozzle Sub-Assy, Defroster, Lh[09.1985 - 03.1987] CM35,KM3#,YM3#,4# |
55960-95702 |
US $40.48 |
||
|
55909
|
55909
87231-95703
Hose, Heater Defroster, Rh
[09.1985 - 03.1987] CM35,KM3#,YM3#,4# |
87231-95703 |
— | ||
|
55909
|
55909
55960-95702 Nozzle Sub-Assy, Defroster, Lh[03.1987 - 08.1988] CM35,KM3#,YM30,35,4# |
55960-95702 |
US $40.48 |
||
|
9011505050
|
9011505050
90115-05050 New Genuine Part |
90115-05050 |
US $4.22 |
||
|
9011906327
|
9011906327
90119-06327 New Genuine Part |
90119-06327 |
US $1.60 |
||
| replacement | |||||
|
9011906327
|
9011906327
90119-06324 New Genuine Part |
90119-06324 |
US $1.02 |
||
|
9011908198
|
9011908198
90119-08198 BOLT |
90119-08198 |
US $1.93 |
||
|
9016750013
|
9016750013
90167-50013
New Genuine Part
|
90167-50013 |
— | ||
| replacement | |||||
|
9016750013
|
9016750013
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9016850026
|
9016850026
90168-50026
New Genuine Part
|
90168-50026 |
— | ||
|
9016850032
|
9016850032
90168-50032 New Genuine Part |
90168-50032 |
US $1.60 |
||
|
9016850033
|
9016850033
90168-50033 New Genuine Part |
90168-50033 |
US $1.60 |
||
|
9017905012
|
9017905012
90179-05012 New Genuine Part |
90179-05012 |
US $1.60 |
||
| replacement | |||||
|
9017905012
|
9017905012
90179-05042 NUT |
90179-05042 |
from US $0.46 |
||
|
9018305007
|
9018305007
90183-05007
New Genuine Part
|
90183-05007 |
— | ||
|
9018305032
|
9018305032
90183-05032 New Genuine Part |
90183-05032 |
US $1.05 |
||
|
9018305033
|
9018305033
90183-05033 NUT |
90183-05033 |
US $0.61 |
||
|
9046804087
|
9046804087
90468-04087 CLIP |
90468-04087 |
US $1.93 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.80 |
||
|
9338515014
|
9338515014
93385-15014 Screw(For Steering Tilt Lever) |
93385-15014 |
US $1.38 |
||
|
9352054012
|
9352054012
93520-54012 New Genuine Part |
93520-54012 |
from US $0.64 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.63 |
||
