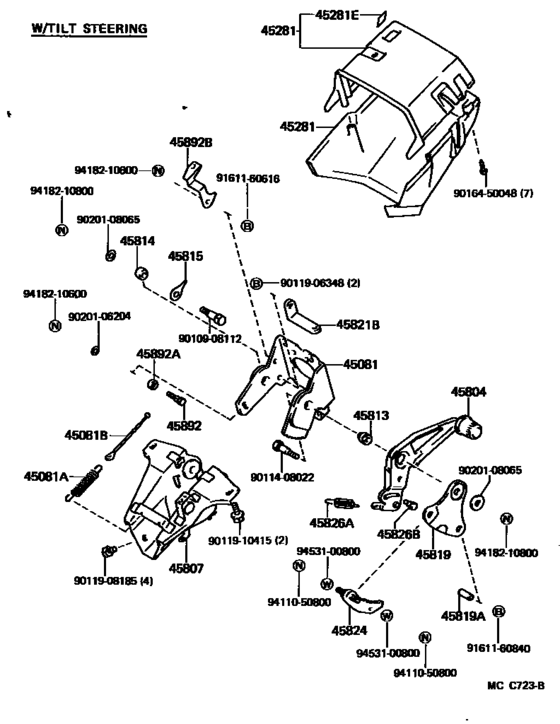

Steering Column & Shaft ([08.1986 - ] (8509- )YM30,40..ARL ; (8608- )CM35,YM35,4 1..ARL) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- General
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- LITEACE
- From
- 09.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45081
|
45081
45081-22020 Support Sub-Assy, Tilt Steering[08.1986 - 08.1988] CM35,YM35,41..ARL |
45081-22020 |
US $56.96 |
||
|
45081A
|
45081A
90506-23009
Spring, Tension(For Tilt Steering)
[08.1986 - 08.1988] CM35,YM35,41..ARL |
90506-23009 |
— | ||
|
45081B
|
45081B
90945-02034 Cord(For Tilt Steering)[08.1986 - 08.1988] CM35,YM35,41..ARL L=107.5,L=107.5 |
90945-02034 |
US $6.12 |
||
|
45081B
|
45081B
90945-02038
Cord(For Tilt Steering)
[08.1986 - 08.1988] CM35,YM35,41..ARL L=105.5,L=105.5 |
90945-02038 |
— | ||
|
45281
|
45281
45286-27170-06
Housing, Steering Column
[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD..(02S,05S,08S) UPR,BROWN,BROWN |
45286-27170-06 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-27171-13
Cover, Steering Column
[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD..(02S,05S,08S) UPR,BROWN,BROWN |
45286-27171-13 |
— | ||
|
45281
|
45281
45286-27180-04
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL UPR,W/TILT STEERING,BLUE,BROWN |
45286-27180-04 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-27181-03
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL UPR,W/TILT STEERING,BLUE,BROWN |
45286-27181-03 |
— | ||
|
45281
|
45281
45286-27180-06
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL UPR,W/TILT STEERING,BROWN,BLUE |
45286-27180-06 |
— | ||
| replacement | |||||
|
45281
|
45281
45286-27181-03
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL UPR,W/TILT STEERING,BROWN,BLUE |
45286-27181-03 |
— | ||
|
45281
|
45281
45287-27080-06 Housing, Steering Column[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD..(02S,05S,08S) LWR,BROWN,BROWN |
45287-27080-06 |
US $33.49 |
||
| replacement | |||||
|
45281
|
45281
45287-27080-03
Housing, Steering Column
[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD..(02S,05S,08S) LWR,BROWN,BROWN |
45287-27080-03 |
— | ||
|
45281
|
45281
45287-27090-04 Housing, Steering Column[08.1986 - 08.1988] CM35,YM35,41..ARL LWR,W/TILT STEERING,BLUE,BLUE |
45287-27090-04 |
US $33.63 |
||
| replacement | |||||
|
45281
|
45281
45287-27090-03
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL LWR,W/TILT STEERING,BLUE,BLUE |
45287-27090-03 |
— | ||
|
45281
|
45281
45287-27090-06
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL LWR,W/TILT STEERING,BROWN,BROWN |
45287-27090-06 |
— | ||
| replacement | |||||
|
45281
|
45281
45287-27090-03
Housing, Steering Column
[08.1986 - 08.1988] CM35,YM35,41..ARL LWR,W/TILT STEERING,BROWN,BROWN |
45287-27090-03 |
— | ||
|
45281E
|
45281E
45283-22010 Plate, Safety Caution[09.1985 - 08.1988] CM3#,KM36,YM3#,4#..RHD |
45283-22010 |
US $2.69 |
||
|
45804
|
45804
45804-22010 Lever Sub-Assy, Steering Tilt[08.1986 - 08.1988] CM35,YM35,41..ARL |
45804-22010 |
US $29.56 |
||
|
45807
|
45807
45807-27020 Bracket Sub-Assy, Steering Column Upper Support[08.1986 - 08.1988] CM35,YM35,41..ARL |
45807-27020 |
US $80.08 |
||
|
45813
|
45813
45813-22010
Collar, Tilt Steering Support, No.1
[08.1986 - 08.1988] CM35,YM35,41..ARL OD=17.996-18.003,D=17.996-18.003 |
45813-22010 |
— | ||
|
45813
|
45813
45813-22020
Collar, Tilt Steering Support, No.1
[08.1986 - 08.1988] CM35,YM35,41..ARL OD=18.003-18.010,D=18.003-18.010 |
45813-22020 |
— | ||
|
45813
|
45813
45813-22030
Collar, Tilt Steering Support, No.1
[08.1986 - 08.1988] CM35,YM35,41..ARL OD=18.010-18.017,D=18.010-18.017 |
45813-22030 |
— | ||
|
45813
|
45813
45813-22040
Collar, Tilt Steering Support, No.1
[08.1986 - 08.1988] CM35,YM35,41..ARL OD=18.017-18.024,D=18.017-18.024 |
45813-22040 |
— | ||
|
45813
|
45813
45813-22050
Collar, Tilt Steering Support, No.1
[08.1986 - 08.1988] CM35,YM35,41..ARL OD=17.989-17.996,D=17.989-17.996 |
45813-22050 |
— | ||
|
45814
|
45814
45814-22010 Collar, Tilt Steering Support, No.2[08.1986 - 08.1988] CM35,YM35,41..ARL OD=17.982-18.000,D=17.982-18.000 |
45814-22010 |
US $10.83 |
||
|
45814
|
45814
45814-22020 Collar, Tilt Steering Support, No.2[08.1986 - 08.1988] CM35,YM35,41..ARL OD=18.000-18.018,D=18.000-18.018 |
45814-22020 |
US $12.06 |
||
|
45815
|
45815
45815-22060 Shim, Tilt Steering Support[08.1986 - 08.1988] CM35,YM35,41..ARL T=0.2,T=0.2 |
45815-22060 |
US $3.67 |
||
|
45815
|
45815
45815-22070
Shim, Tilt Steering Support
[08.1986 - 08.1988] CM35,YM35,41..ARL T=0.5,T=0.5 |
45815-22070 |
— | ||
|
45815
|
45815
45815-22080
Shim, Tilt Steering Support
[08.1986 - 08.1988] CM35,YM35,41..ARL T=0.8,T=0.8 |
45815-22080 |
— | ||
|
45815
|
45815
45815-22090
Shim, Tilt Steering Support
[08.1986 - 08.1988] CM35,YM35,41..ARL T=1.4,T=1.4 |
45815-22090 |
— | ||
|
45815
|
45815
45815-22100
Shim, Tilt Steering Support
[08.1986 - 08.1988] CM35,YM35,41..ARL T=1.8,T=1.8 |
45815-22100 |
— | ||
|
45819
|
45819
45819-22011 Retainer, Tilt Lever[08.1986 - 08.1988] CM35,YM35,41..ARL |
45819-22011 |
US $5.59 |
||
|
45819A
|
45819A
90387-08002 Collar(For Tilt Lever Retainer)[08.1986 - 08.1988] CM35,YM35,41..ARL |
90387-08002 |
US $2.80 |
||
|
45821B
|
45821B
45821-22010 Reinforce, Tilt Steering Support[08.1986 - 08.1988] CM35,YM35,41..ARL |
45821-22010 |
US $6.99 |
||
|
45824
|
45824
45890-22050 Pawl, Tilt Steering[08.1986 - 08.1988] CM35,YM35,41..ARL |
45890-22050 |
US $12.75 |
||
|
45826A
|
45826A
90507-14001
Spring, Tension(For Steering Tilt Lever)
[08.1986 - 08.1988] CM35,YM35,41..ARL |
90507-14001 |
— | ||
|
45826B
|
45826B
72538-12010 Pin(For Steering Tilt Lever)[08.1986 - 08.1988] CM35,YM35,41..ARL |
72538-12010 |
US $3.35 |
||
|
45892
|
45892
45898-22010 Bolt, Tilt Steering Support Stopper[08.1986 - 08.1988] CM35,YM35,41..ARL |
45898-22010 |
US $5.59 |
||
|
45892A
|
45892A
45899-22020 Cover, Tilt Steering Support Stopper[08.1986 - 08.1988] CM35,YM35,41..ARL |
45899-22020 |
US $5.59 |
||
|
45892B
|
45892B
45289-27020 Support, Steering Column Cover[08.1986 - 08.1988] CM35,YM35,41..ARL |
45289-27020 |
US $9.03 |
||
|
9010908112
|
9010908112
90109-08112 New Genuine Part |
90109-08112 |
US $1.49 |
||
|
9011408022
|
9011408022
90114-08022
New Genuine Part
|
90114-08022 |
— | ||
|
9011906348
|
9011906348
90119-06348
New Genuine Part
|
90119-06348 |
— | ||
| replacement | |||||
|
9011906348
|
9011906348
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9011910415
|
9011910415
90119-10415 BOLT |
90119-10415 |
US $2.62 |
||
| replacement | |||||
|
9011910415
|
9011910415
91651-G1020 BOLT |
91651-G1020 |
from US $1.05 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.86 |
||
|
9020106204
|
9020106204
90201-06204 Washer, Plate(For Steering Tilt Lever) |
90201-06204 |
US $2.33 |
||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $1.08 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.86 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9418210600
|
9418210600
94182-10600 Nut, Tilt Steering Adjusting, No.1 |
94182-10600 |
US $1.89 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.38 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.87 |
||
