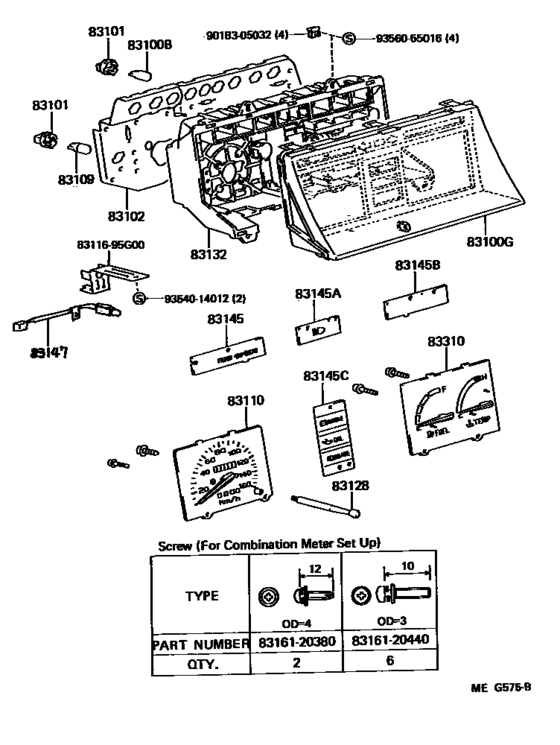

Meter ([10.1985 - ] (8510- )RHD) Diagram Toyota LITEACE
- Year
- 1985 - 1988
- Sales region
- Europe
- Frame
- CM35
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[10.1985 - 08.1988] CM35,KM3# 12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[10.1985 - 08.1988] CM35,KM3# 12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83134-95706 Glass, Combination Meter[10.1985 - 08.1988] CM35,KM36..RHD |
83134-95706 |
US $40.91 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[10.1985 - 08.1988] CM35,KM3# BULB:12V 3.4W |
83101-20040 |
from US $1.56 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[10.1985 - 08.1986] CM35,KM3# BULB:GREEN CAP,12V 3.4W |
83101-20070 |
US $8.78 |
||
|
83102
|
83102
83247-95720 Plate Sub-Assy, Combination Meter Circuit, No.1COMBINATION METER CIRCUIT, NO.1 [10.1985 - 08.1988] CM35..RHD |
83247-95720 |
US $67.70 |
||
|
83109
|
83109
83109-24030 Bulb, Combination Meter, No.1[10.1985 - 08.1986] CM35,KM3# 12V 3.4W W(GREEN CAP) |
83109-24030 |
from US $2.45 |
||
|
83110
|
83110
83110-95725 Speedometer Assy[08.1987 - 08.1988] CM35,KM36..RHD |
83110-95725 |
US $336.34 |
||
|
83110
|
83110
83110-95726 Speedometer Assy[10.1985 - 08.1987] CM35..RHD |
83110-95726 |
US $366.91 |
||
|
83128
|
83128
83128-95J00 Knob, Trip Counter[10.1985 - 08.1988] CM35,KM36..RHD |
83128-95J00 |
US $5.97 |
||
|
83132
|
83132
83132-95J02
Case, Combination Meter
[10.1985 - 08.1988] CM35,KM36..RHD |
83132-95J02 |
— | ||
|
83145
|
83145
83145-95751 Lens, Meter, No.1METER, NO.1 [10.1985 - 08.1988] CM35..RHD |
83145-95751 |
US $12.23 |
||
|
83145A
|
83145A
83145-95722 Lens, Meter, No.2[10.1985 - 08.1988] CM35,KM36..RHD |
83145-95722 |
US $8.59 |
||
|
83145B
|
83145B
83145-95748 Lens, Meter, No.3METER, NO.3 [10.1985 - 08.1986] CM35,KM36..RHD |
83145-95748 |
US $12.23 |
||
|
83145B
|
83145B
83145-95G11 Lens, Meter, No.3METER, NO.3 [08.1986 - 08.1987] CM35,KM36..RHD |
83145-95G11 |
US $12.23 |
||
|
83145B
|
83145B
83145-95G17 Lens, Meter, No.3METER, NO.3 [08.1987 - 08.1988] CM35..RHD |
83145-95G17 |
US $12.23 |
||
|
83145C
|
83145C
83145-95749 Lens, Meter, No.4METER, NO.4 [10.1985 - 08.1988] CM35,KM36..RHD |
83145-95749 |
US $8.15 |
||
|
83147
|
83147
83147-95G00
Lamp, Meter No.1
[08.1987 - 08.1988] CM35..RHD |
83147-95G00 |
— | ||
|
83310
|
83310
83243-95715 Gage Assy, Fuel ReceiverFUEL RECEIVER [10.1985 - 08.1988] CM35,KM36..RHD |
83243-95715 |
US $119.39 |
||
|
8311695G00
|
8311695G00
83116-95G00 Bracket, Speedometer |
83116-95G00 |
US $10.92 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120440
|
8316120440
83161-20440
Case, Combination Meter Mirror, No.1
|
83161-20440 |
— | ||
|
9018305032
|
9018305032
90183-05032 New Genuine Part |
90183-05032 |
US $1.05 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.66 |
||
