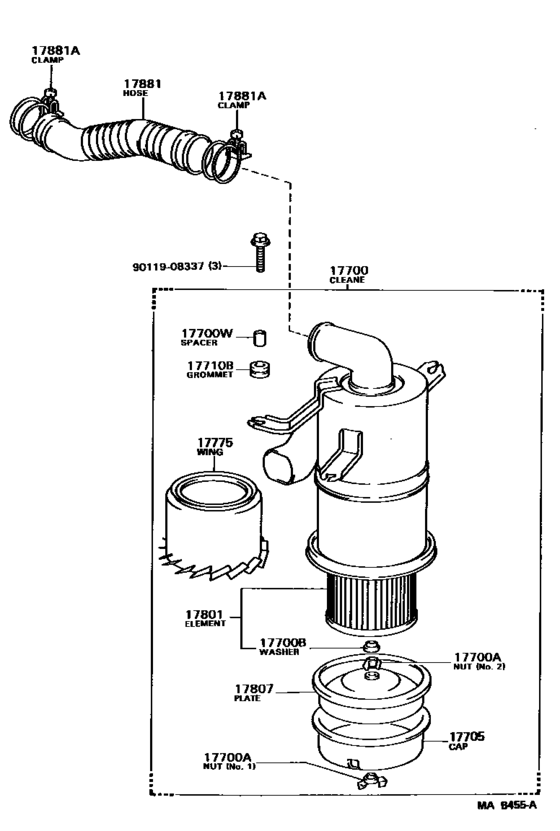

Air Cleaner ([08.1988 - ] (8808- )2C) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- General
- Frame
- CM36
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 4F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-64180 Cleaner Assy, AirAIR [08.1988 - 04.1998] 2C..CM36 |
17700-64180 |
US $559.10 |
||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1988 - 04.1998] 2C..CM36 NO.1 |
90175-06003 |
from US $1.27 |
||
|
17700A
|
17700A
94271-00800 Nut, Wing(For Air Cleaner)[08.1988 - 04.1998] 2C..CM36 NO.2 |
94271-00800 |
US $1.12 |
||
|
17700B
|
17700B
90210-08024
Washer, Seal(For Air Cleaner)
[08.1988 - 04.1998] 2C..CM36 |
90210-08024 |
— | ||
|
17700W
|
17700W
90560-08038 Spacer(For Air Cleaner)[08.1988 - 04.1998] 2C..CM36 |
90560-08038 |
US $1.16 |
||
|
17705
|
17705
17705-64070
Cap Sub-Assy, Air Cleaner
[08.1988 - 04.1998] 2C..CM36 |
17705-64070 |
— | ||
|
17710B
|
17710B
90480-16014
Grommet
[08.1988 - 04.1998] 2C..CM36 |
90480-16014 |
— | ||
|
17775
|
17775
17775-64010
Wing, Cyclone
[08.1988 - 04.1998] 2C..CM36 |
17775-64010 |
— | ||
|
17801
|
17801
17801-64030 Element Sub-Assy, Air Cleaner Filter[08.1988 - 04.1998] 2C..CM36 |
17801-64030 |
US $34.77 |
||
|
17807
|
17807
17703-64010
Cap Sub-Assy, Dust
[08.1988 - 04.1998] 2C..CM36 |
17703-64010 |
— | ||
|
17881
|
17881
17880-64110 Hose, Air Cleaner, No.1[08.1988 - 04.1998] 2C..CM36 |
17880-64110 |
US $44.70 |
||
|
17881A
|
17881A
90460-73003
Clamp Or Clip(For Air Hose, No.1)
[08.1988 - 04.1998] 2C..CM36 MANIFOLD SIDE |
90460-73003 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-73011 Clamp Or Clip(For Air Hose, No.1)[08.1988 - 04.1998] 2C..CM36 MANIFOLD SIDE |
90460-73011 |
US $7.04 |
||
|
17881A
|
17881A
90460-77003 Clamp(For Air Cleaner Hose, No.1)[08.1988 - 04.1998] 2C..CM36 AIR CLEANER SIDE |
90460-77003 |
US $6.99 |
||
|
9011908337
|
9011908337
90119-08337 New Genuine Part |
90119-08337 |
US $2.04 |
||
