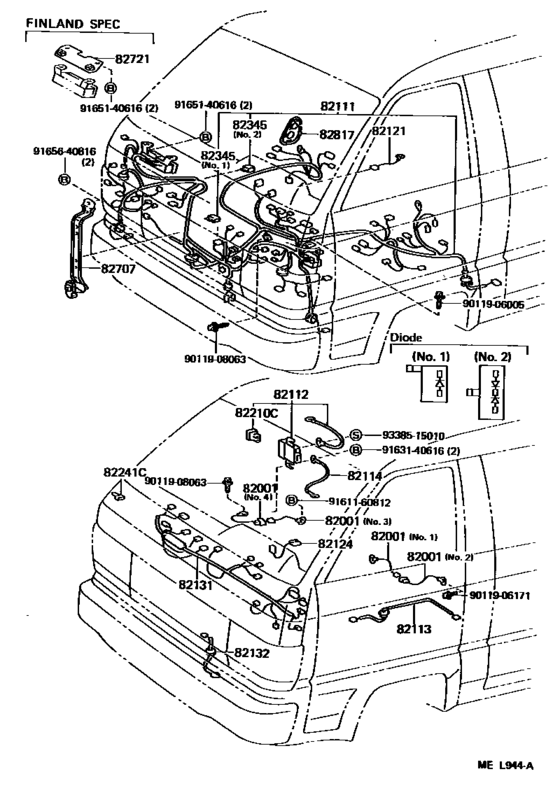

Wiring & Clamp ([08.1988 - ] (8808- )CM3#..LHD) Diagram Toyota LITEACE
- Year
- 1988 - 1992
- Sales region
- Europe
- Frame
- CM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- LITEACE VAN,WAGON
- From
- 08.1988
- To
- 01.1992
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 02S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07258 Cable, Bond, No.1[08.1988 - 01.1992] CM3# NO.4 |
90980-07258 |
US $9.17 |
||
|
82001
|
82001
90980-07259 Cable, Bond, No.1[08.1988 - 01.1992] CM3# NO.3; KM36..RHD NO.2 |
90980-07259 |
US $6.99 |
||
|
82001
|
82001
90980-07275 Cable, Bond, No.1[08.1988 - 01.1992] CM3# NO.2 |
90980-07275 |
US $8.15 |
||
| replacement | |||||
|
82001
|
82001
90980-07206 Cable, Bond, No.1[08.1988 - 01.1992] CM3# NO.2 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07276 Cable, Bond, No.1[08.1988 - 01.1992] CM3# NO.1 |
90980-07276 |
US $7.13 |
||
| replacement | |||||
|
82001
|
82001
90980-07228 Cable, Bond, No.1[08.1988 - 01.1992] CM3# NO.1 |
90980-07228 |
US $7.16 |
||
|
82111
|
82111
82111-27860 Wire, Engine Room MainENGINE ROOM MAIN [12.1990 - 01.1992] CM36..LHD..V4D..5F..02S DENMARK SPEC |
82111-27860 |
US $2,082.08 |
||
|
82111
|
82111
82111-95T73 Wire, Engine Room MainENGINE ROOM MAIN [08.1988 - 01.1992] CM36..LHD |
82111-95T73 |
US $2,082.08 |
||
|
82111
|
82111
82111-95T74 Wire, Engine Room MainENGINE ROOM MAIN [08.1988 - 01.1992] CM30; CM36..05S W(FUEL HEATER) OR W(LIGHTNING WARNING) OR W(REAR HEATER); CM36..LHD..02S W(FUEL HEATER) OR W(LIGHTNING WARNING) |
82111-95T74 |
US $2,082.08 |
||
|
82111
|
82111
82111-95T76 Wire, Engine Room MainENGINE ROOM MAIN [08.1988 - 12.1990] CM36..LHD..V4D..5F..02S DENMARK SPEC |
82111-95T76 |
US $2,096.64 |
||
|
82112
|
82112
82112-95706 Wire, Engine Room, No.2ENGINE ROOM, NO.2 [08.1988 - 01.1992] CM3#..LHD |
82112-95706 |
US $468.83 |
||
|
82113
|
82113
82113-95703 Wire, Engine Room, No.3ENGINE ROOM, NO.3 [08.1988 - 01.1992] CM36,KM36..LHD..V4D..5F..02S |
82113-95703 |
US $80.08 |
||
|
82114
|
82114
82114-95705 Wire, Engine Room, No.4[08.1988 - 01.1992] CM3# |
82114-95705 |
US $31.16 |
||
|
82121
|
82121
82121-95702 Wire, Engine[08.1988 - 01.1992] CM3# |
82121-95702 |
US $36.84 |
||
|
82124
|
82124
82124-95703 Wire, Engine, No.4[08.1988 - 01.1992] CM3# |
82124-95703 |
US $6.99 |
||
|
82131
|
82131
82131-95T48 Wire, CowlCOWL [08.1988 - 01.1992] CM36,KM36..LHD..(5F,5H)..02S |
82131-95T48 |
US $247.52 |
||
|
82131
|
82131
82131-95T49 Wire, CowlCOWL [08.1988 - 01.1992] CM3#,KM3#..VSG; KM36..SRF W(REAR WINDOW DEFOGGER); CM36,KM36..LHD..(5F,5H)..02S W(REAR WINDOW DEFOGGER) |
82131-95T49 |
US $247.52 |
||
|
82131
|
82131
82131-95T51 Wire, CowlCOWL [08.1988 - 01.1992] CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC OR DENMARK SPEC & W(*RWD) |
82131-95T51 |
US $247.52 |
||
|
82132
|
82132
82132-95701 Wire, Cowl, No.2COWL, NO.2 [08.1988 - 01.1992] CM3#,KM3#..LHD |
82132-95701 |
US $61.30 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[08.1988 - 01.1992] CM3#,KM3# 40A,TERMINAL:FEMALE |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[08.1988 - 01.1992] CM3#;KM36..RHD 60A,TERMINAL:MALE |
90982-08202 |
US $11.20 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[08.1988 - 12.1988] CM3# 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08253
Fusible Link
[12.1988 - 12.1989] CM3# 80A,TERMINAL:MALE |
90982-08253 |
— | ||
| replacement | |||||
|
82210C
|
82210C
90982-08203 Fusible Link[12.1988 - 12.1989] CM3# 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82241C
|
82241C
82241-95701 Wire, RelayRELAY [08.1988 - 01.1992] CM3#,KM3#..LHD |
82241-95701 |
US $3.93 |
||
|
82241C
|
82241C
82241-95702 Wire, RelayRELAY [08.1988 - 03.1989] KM36..SRF;CM36,KM3#..LHD..V4D..(4F,5F)..(02S,08S) FRANCE SPEC |
82241-95702 |
US $3.93 |
||
|
82345
|
82345
82345-12050 Diode[08.1988 - 01.1992] KM36..4H NO.1; CM36..5H NO.1; KM36..RHD NO.1; KM36..5F..05S NO.1; KM36..LHD..V4D..5F..02S NO.1; CM36..LHD..V4D..5F..02S NO.1; KM36..MRF..4F..02S NO.1; CM36..V5D;KM36..SRF;KM36..4F..05S;CM3#,KM30..VSG NO.1; CM36,KM36..RHD NO.1; KM36..4F |
82345-12050 |
US $12.64 |
||
|
82345
|
82345
82345-32020 Diode[08.1988 - 12.1990] KM36..LHD..V4D..5F..02S NO.2; CM36..LHD..V4D..5F..02S NO.2; CM36..V5D;KM36..SRF;KM36..4F..05S;CM36,KM36..RHD;CM3#,KM30..VSG NO.2 |
82345-32020 |
US $13.45 |
||
|
82707
|
82707
82701-95701 Support Sub-Assy, Wiring HarnessWIRING HARNESS [08.1988 - 01.1992] CM3#,KM3#..LHD |
82701-95701 |
US $31.89 |
||
|
82817
|
82817
82817-95703 Protector, Wiring Harness, No.1[08.1988 - 01.1992] CM3#,KM3# |
82817-95703 |
US $9.90 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.08 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $2.72 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
