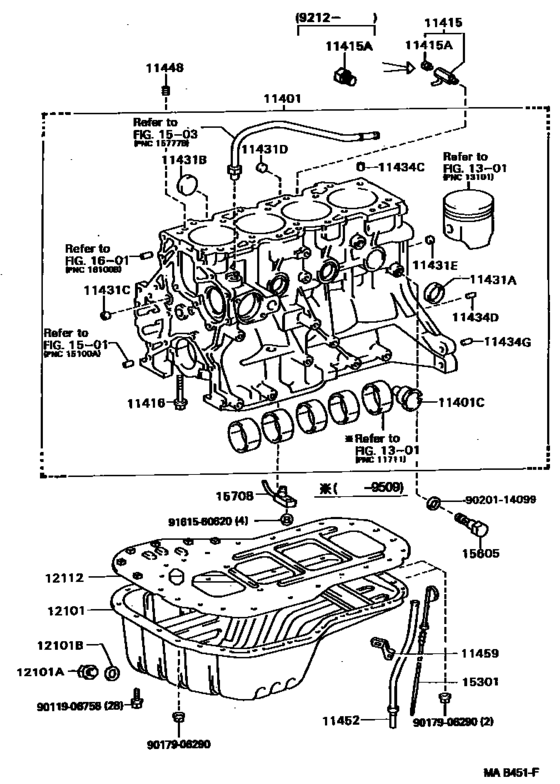

Cylinder Block ([08.1988 - ] (8808- )2C) Diagram Toyota LITEACE
- Year
- 1991 - 1998
- Sales region
- General
- Frame
- CM36
- grade
- STD
- body
- V
- Roof
- MRF
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LITEACE
- From
- 09.1991
- To
- 04.1998
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Seating Capacity
- 05S
- Vehicle Model
- LITEACE
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-69425 Block Sub-Assy, Cylinder[08.1990 - 01.1992] 2C..CM36 |
11401-69425 |
US $3,377.92 |
||
| replacements | |||||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[08.1990 - 01.1992] 2C..CM36 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11401-69747 Block Sub-assy, Cylinder[08.1990 - 01.1992] 2C..CM36 |
11401-69747 |
US $3,363.36 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[08.1990 - 01.1992] 2C..CM36 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[08.1990 - 01.1992] 2C..CM36 |
15703-27010 |
US $17.47 |
||
|
11401
|
11401
13011-64213 Ring Set, Piston[08.1990 - 01.1992] 2C..CM36 |
13011-64213 |
US $220.15 |
||
|
11401
|
11401
11401-69465 Block Sub-Assy, Cylinder[01.1992 - 09.1992] 2C..CM36 |
11401-69465 |
US $3,494.40 |
||
| replacements | |||||
|
11401
|
11401
11401-69757 Block Sub-assy, Cylinder[01.1992 - 09.1992] 2C..CM36 |
11401-69757 |
US $3,363.36 |
||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[01.1992 - 09.1992] 2C..CM36 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[01.1992 - 09.1992] 2C..CM36 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[01.1992 - 09.1992] 2C..CM36 |
15703-27010 |
US $17.47 |
||
|
11401
|
11401
13011-64213 Ring Set, Piston[01.1992 - 09.1992] 2C..CM36 |
13011-64213 |
US $220.15 |
||
|
11401
|
11401
11401-69466 Block Sub-Assy, Cylinder[09.1992 - 04.1995] 2C..CM36 |
11401-69466 |
US $3,377.92 |
||
| replacements | |||||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[09.1992 - 04.1995] 2C..CM36 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11401-69757 Block Sub-assy, Cylinder[09.1992 - 04.1995] 2C..CM36 |
11401-69757 |
US $3,363.36 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[09.1992 - 04.1995] 2C..CM36 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[09.1992 - 04.1995] 2C..CM36 |
15703-27010 |
US $17.47 |
||
|
11401
|
11401
11401-69625 Block Sub-Assy, Cylinder[04.1995 - 09.1995] 2C..CM36 |
11401-69625 |
US $3,552.64 |
||
| replacements | |||||
|
11401
|
11401
11701-27013-01
Bearing, Crankshaft
[04.1995 - 09.1995] 2C..CM36 |
11701-27013-01 |
— | ||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[04.1995 - 09.1995] 2C..CM36 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [04.1995 - 09.1995] 2C..CM36 |
11701-27013-02 |
from US $10.92 |
||
|
11401
|
11401
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [04.1995 - 09.1995] 2C..CM36 |
11701-27013-03 |
US $31.45 |
||
|
11401
|
11401
11401-69629 Block Sub-Assy, Cylinder[04.1995 - 09.1995] 2C..CM36 |
11401-69629 |
US $2,140.32 |
||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[04.1995 - 09.1995] 2C..CM36 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [04.1995 - 09.1995] 2C..CM36 |
11701-27013-04 |
US $31.45 |
||
|
11401
|
11401
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [04.1995 - 09.1995] 2C..CM36 |
11701-27013-05 |
US $31.45 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[04.1995 - 09.1995] 2C..CM36 |
15703-27010 |
US $17.47 |
||
|
11401
|
11401
11401-69626 Block Sub-Assy, Cylinder[09.1995 - 04.1998] 2C..CM36 |
11401-69626 |
US $3,552.64 |
||
| replacements | |||||
|
11401
|
11401
11381-64020 Retainer, Engine Rear Oil Seal[09.1995 - 04.1998] 2C..CM36 |
11381-64020 |
US $63.77 |
||
|
11401
|
11401
11115-64170-B0 Gasket, Cylinder Head[09.1995 - 04.1998] 2C..CM36 |
11115-64170-B0 |
from US $59.10 |
||
|
11401
|
11401
11401-69629 Block Sub-Assy, Cylinder[09.1995 - 04.1998] 2C..CM36 |
11401-69629 |
US $2,140.32 |
||
|
11401
|
11401
11701-27013-01
Bearing, Crankshaft
[09.1995 - 04.1998] 2C..CM36 |
11701-27013-01 |
— | ||
|
11401
|
11401
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [09.1995 - 04.1998] 2C..CM36 |
11701-27013-02 |
from US $10.92 |
||
|
11401
|
11401
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [09.1995 - 04.1998] 2C..CM36 |
11701-27013-03 |
US $31.45 |
||
|
11401
|
11401
11701-27013-04 Bearing, CrankshaftCRANKSHAFT [09.1995 - 04.1998] 2C..CM36 |
11701-27013-04 |
US $31.45 |
||
|
11401
|
11401
11701-27013-05 Bearing, CrankshaftCRANKSHAFT [09.1995 - 04.1998] 2C..CM36 |
11701-27013-05 |
US $31.45 |
||
|
11401
|
11401
15703-27010 Valve Sub-Assy, Oil Check[09.1995 - 04.1998] 2C..CM36 |
15703-27010 |
US $17.47 |
||
|
11401C
|
11401C
16353-64010 Flange(For Water By-Pass)[08.1988 - 04.1992] 2C..CM36 |
16353-64010 |
US $6.99 |
||
| replacement | |||||
|
11401C
|
11401C
16353-64011 Flange(For Water By-Pass)[08.1988 - 04.1992] 2C..CM36 |
16353-64011 |
US $6.12 |
||
|
11401C
|
11401C
16353-64011 Flange(For Water By-Pass)[04.1992 - 04.1998] 2C..CM36 |
16353-64011 |
US $6.12 |
||
|
11415
|
11415
90910-09088
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.1988 - 12.1992] 2C..CM36 |
90910-09088 |
— | ||
| replacement | |||||
|
11415
|
11415
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1988 - 12.1992] 2C..CM36 |
90345-52003 |
US $3.68 |
||
|
11415A
|
11415A
90345-52003 Cock Sub-Assy, Water Drain(For Cylinder Block)[12.1992 - 04.1998] 2C..CM36 |
90345-52003 |
US $3.68 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.1988 - 12.1992] 2C..CM36 |
90910-09087 |
from US $3.68 |
||
|
11416
|
11416
90910-02061 Bolt(For Cylinder Head Set)[08.1988 - 04.1998] 2C..CM36 |
90910-02061 |
US $3.68 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1988 - 04.1998] 2C..CM36 |
96411-43500 |
from US $3.88 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[08.1988 - 04.1998] 2C..CM36 |
96411-43000 |
from US $3.84 |
||
|
11431C
|
11431C
96411-41800 Plug, Tight, No.1[08.1988 - 01.1992] 2C..CM36 |
96411-41800 |
from US $1.72 |
||
|
11431D
|
11431D
96411-41800 Plug, Tight, No.1[08.1988 - 01.1992] 2C..CM36 |
96411-41800 |
from US $1.72 |
||
|
11431E
|
11431E
96411-41800 Plug, Tight, No.1[08.1988 - 01.1992] 2C..CM36 |
96411-41800 |
from US $1.72 |
||
|
11434C
|
11434C
90253-14001 Pin, Straight (For Cylinder Head Set)[08.1988 - 04.1998] 2C..CM36 L=9,OD=14 |
90253-14001 |
US $2.62 |
||
|
11434D
|
11434D
90250-06068 Pin, Straight[08.1988 - 04.1998] 2C..CM36 L=11,OD=6 |
90250-06068 |
US $3.67 |
||
|
11434G
|
11434G
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1988 - 04.1998] 2C..CM36 |
90250-10113 |
from US $1.03 |
||
|
11448
|
11448
11448-54020 Orifice, Cylinder Block Oil[09.1990 - 04.1998] 2C..CM36 |
11448-54020 |
US $3.32 |
||
|
11452
|
11452
11452-64020 Guide, Oil Level Gage[08.1988 - 08.1994] 2C..CM36 |
11452-64020 |
US $29.99 |
||
|
11452
|
11452
11452-64021 Guide, Oil Level Gage[08.1994 - 04.1998] 2C..CM36 |
11452-64021 |
US $21.84 |
||
|
11459
|
11459
90929-01026 Support, Oil Level Gage Guide[08.1988 - 04.1998] 2C..CM36 |
90929-01026 |
US $4.37 |
||
|
12101
|
12101
12101-64080 Pan Sub-Assy, Oil[08.1988 - 09.1993] 2C..CM36..GEN |
12101-64080 |
US $262.08 |
||
| replacement | |||||
|
12101
|
12101
12101-64082 Pan Sub-Assy, Oil[08.1988 - 09.1993] 2C..CM36..GEN |
12101-64082 |
US $263.54 |
||
|
12101
|
12101
12101-64081 Pan Sub-Assy, Oil[09.1993 - 08.1994] 2C..CM36 |
12101-64081 |
US $262.08 |
||
| replacement | |||||
|
12101
|
12101
12101-64082 Pan Sub-Assy, Oil[09.1993 - 08.1994] 2C..CM36 |
12101-64082 |
US $263.54 |
||
|
12101
|
12101
12101-64082 Pan Sub-Assy, Oil[08.1994 - 04.1998] 2C..CM36 |
12101-64082 |
US $263.54 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1988 - 04.1998] 2C..CM36; 5K#..KM3#; 2Y#..YM3# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004
Plug(For Oil Pan Drain)
[08.1988 - 04.1998] 2C..CM36; 5K#..KM3#; 2Y#..YM3# |
90341-T0004 |
— | ||
|
12101B
|
12101B
90430-12027
Gasket(For Oil Pan Drain Plug)
[08.1991 - 04.1993] 2C..CM36; 2Y#..YM3#; 5K#..KM3# |
90430-12027 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1991 - 04.1993] 2C..CM36; 2Y#..YM3#; 5K#..KM3# |
90430-12031 |
from US $0.88 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[04.1993 - 12.1993] 2C..CM36 |
90430-12031 |
from US $0.88 |
||
|
12112
|
12112
12112-64050
Pan, Oil No.2
[08.1988 - 06.1993] 2C..CM36 |
12112-64050 |
— | ||
| replacement | |||||
|
12112
|
12112
12112-64051
Pan, Oil No.2
[08.1988 - 06.1993] 2C..CM36 |
12112-64051 |
— | ||
|
12112
|
12112
12112-64051
Pan, Oil No.2
[06.1993 - 04.1998] 2C..CM36 |
12112-64051 |
— | ||
|
15301
|
15301
15301-64050 Gage Sub-Assy, Oil Level[12.1989 - 01.1992] 2C..CM36 |
15301-64050 |
US $14.41 |
||
|
15301
|
15301
15301-64051 Gage Sub-Assy, Oil Level[01.1992 - 08.1994] 2C..CM36 |
15301-64051 |
US $13.54 |
||
|
15301
|
15301
15301-64052 Gage Sub-Assy, Oil Level[08.1994 - 04.1998] 2C..CM36 |
15301-64052 |
US $13.40 |
||
|
15605
|
15605
15605-64020
Valve Sub-Assy, Oil Check
[08.1988 - 04.1998] 2C..CM36 |
15605-64020 |
— | ||
|
15708
|
15708
15790-64021 Nozzle Sub-Assy, Oil, No.1[05.1991 - 04.1998] 2C..CM36 |
15790-64021 |
US $19.07 |
||
| replacements | |||||
|
15708
|
15708
15790-64030 Nozzle Sub-Assy, Oil, No.1[05.1991 - 04.1998] 2C..CM36 |
15790-64030 |
US $13.10 |
||
|
15708
|
15708
90110-06034
New Genuine Part
[05.1991 - 04.1998] 2C..CM36 |
90110-06034 |
— | ||
|
9011906758
|
9011906758
90119-06758 New Genuine Part |
90119-06758 |
US $1.60 |
||
|
9017906290
|
9017906290
90179-06290 Nut, Cap(For Cylinder Head Cover) |
90179-06290 |
US $1.60 |
||
| replacement | |||||
|
9017906290
|
9017906290
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $3.24 |
||
|
9161560620
|
9161560620
91615-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91615-60620 |
US $1.60 |
||
| replacement | |||||
|
9161560620
|
9161560620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
