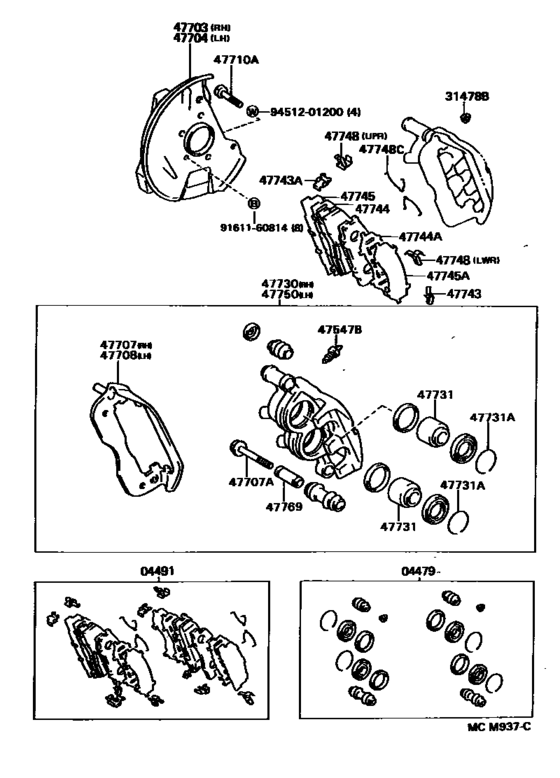

Front Disc Brake Caliper & Dust Cover ([01.1992 - ] (9201- )CR21,KR21,YR22) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-28080 Cylinder Kit, Disc Brake, FrontDISC BRAKE, FRONT [01.1992 - 01.1995] CR21,KR21,YR22 |
04479-28080 |
US $40.19 |
||
|
04491
|
04491
04491-28340 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [01.1992 - 09.1993] CR21,KR21,YR22 |
04491-28340 |
US $192.19 |
||
| replacement | |||||
|
04491
|
04491
04465-28171 Pad Kit, Disc Brake, Front[01.1992 - 09.1993] CR21,KR21,YR22 |
04465-28171 |
US $113.57 |
||
|
04491
|
04491
04491-28350 Pad Kit, Disc Brake, Front[09.1993 - 01.1995] CR21,KR21,YR22; YR29 SWITZERLAND SPEC |
04491-28350 |
US $192.19 |
||
| replacement | |||||
|
04491
|
04491
04465-28171 Pad Kit, Disc Brake, Front[09.1993 - 01.1995] CR21,KR21,YR22; YR29 SWITZERLAND SPEC |
04465-28171 |
US $113.57 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[01.1992 - 01.1995] CR21,KR21,YR22; CR27,KR27,YR29 |
31478-30010 |
from US $1.52 |
||
|
47547B
|
47547B
47547-27040 Plug, Bleeder(For Front Disc Brake)[01.1992 - 01.1995] CR21,KR21,YR22; CR27,KR27,YR29 |
47547-27040 |
US $5.38 |
||
|
47703
|
47703
47703-28060 Cover Sub-Assy, Disc Brake Dust, Front RhDISC BRAKE DUST, FRONT RH [01.1992 - 08.1994] CR21,KR21,YR22 |
47703-28060 |
US $52.27 |
||
|
47703
|
47703
47703-28061 Cover Sub-Assy, Disc Brake Dust, Front RhDISC BRAKE DUST, FRONT RH [08.1994 - 01.1995] CR21,YR22; YR29 SWITZERLAND SPEC |
47703-28061 |
US $45.14 |
||
|
47704
|
47704
47704-28060 Cover Sub-Assy, Disc Brake Dust, Front LhDISC BRAKE DUST, FRONT LH [01.1992 - 08.1994] CR21,KR21,YR22 |
47704-28060 |
US $52.27 |
||
|
47704
|
47704
47704-28061 Cover Sub-Assy, Disc Brake Dust, Front LhDISC BRAKE DUST, FRONT LH [08.1994 - 01.1995] CR21,YR22; YR29 SWITZERLAND SPEC |
47704-28061 |
US $45.14 |
||
|
47707
|
47707
47707-28160 Plate Sub-Assy, Disc Brake Torque, Front RhDISC BRAKE TORQUE, FRONT RH [01.1992 - 01.1995] CR21,KR21,YR22 |
47707-28160 |
US $123.76 |
||
|
47707A
|
47707A
90119-10385 Bolt, Hexagon(For Front Disc Brake Torque Plate)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90119-10385 |
US $4.66 |
||
|
47708
|
47708
47708-28160 Plate Sub-Assy, Disc Brake Torque, Front LhDISC BRAKE TORQUE, FRONT LH [01.1992 - 01.1995] CR21,KR21,YR22 |
47708-28160 |
US $123.76 |
||
|
47710A
|
47710A
90101-12010 Bolt, Hexagon(For Front Disc Brake Caliper)[01.1992 - 01.1995] CR2#,KR2#,YR2# *12-1.25PX50-26 |
90101-12010 |
US $4.02 |
||
|
47710A
|
47710A
90101-12030 Bolt, Hexagon(For Front Disc Brake Caliper)[01.1992 - 01.1995] CR2#,KR2#,YR2# *12-1.25PX31-20 |
90101-12030 |
US $3.49 |
||
|
47730
|
47730
47730-28230 Cylinder Assy, Front Disc Brake, RhFRONT DISC BRAKE, RH [01.1992 - 01.1995] CR21,KR21,YR22 |
47730-28230 |
US $725.09 |
||
|
47731
|
47731
47731-28070 Piston, Front Disc BrakeFRONT DISC BRAKE [01.1992 - 01.1995] CR21,KR21,YR22 |
47731-28070 |
US $26.50 |
||
|
47731A
|
47731A
90522-49001 Ring, Set(For Disc Brake Piston, Rear)[01.1992 - 01.1995] CR21,KR21,YR22 |
90522-49001 |
US $1.40 |
||
|
47743
|
47743
47743-14040 Spring, Anti-Rattle, No.2(For Front Disc Brake)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
47743-14040 |
from US $5.25 |
||
|
47743A
|
47743A
47743-28010 Spring, Anti-Rattle, No.2(For Front Disc Brake)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
47743-28010 |
from US $1.68 |
||
|
47744
|
47744
47744-28130
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
47744-28130 |
— | ||
|
47744A
|
47744A
47744-28140 Shim, Anti-Squeal, No.3(For Front Disc Brake)[01.1992 - 01.1995] CR21,KR21,YR22 |
47744-28140 |
US $3.79 |
||
|
47745
|
47745
47745-28070
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
47745-28070 |
— | ||
|
47745A
|
47745A
47745-28090 Shim, Anti-Squeal, No.2(For Front Disc Brake)[01.1992 - 01.1995] CR21,KR21,YR22 |
47745-28090 |
US $3.79 |
||
|
47748
|
47748
47748-14050 Spring, Anti-Rattle, No.2(For Rear Disc Brake)[01.1992 - 01.1995] CR2#,KR2#,YR2# UPR |
47748-14050 |
from US $5.30 |
||
|
47748
|
47748
47748-28010 Spring, Anti-Rattle, No.1(For Front Disc Brake)[01.1992 - 01.1995] CR2#,KR2#,YR2# LWR |
47748-28010 |
from US $3.61 |
||
|
47748C
|
47748C
47748-20020 Spring, Anti-Rattle, No.1(For Front Disc Brake)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
47748-20020 |
from US $3.92 |
||
|
47750
|
47750
47750-28230 Cylinder Assy, Disc Brake, LhDISC BRAKE, LH [01.1992 - 01.1995] CR21,KR21,YR22 |
47750-28230 |
US $725.09 |
||
|
47769
|
47769
47769-28020 Bush, Cylinder Slide, No.1(For Front Disc Brake)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
47769-28020 |
from US $6.69 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
