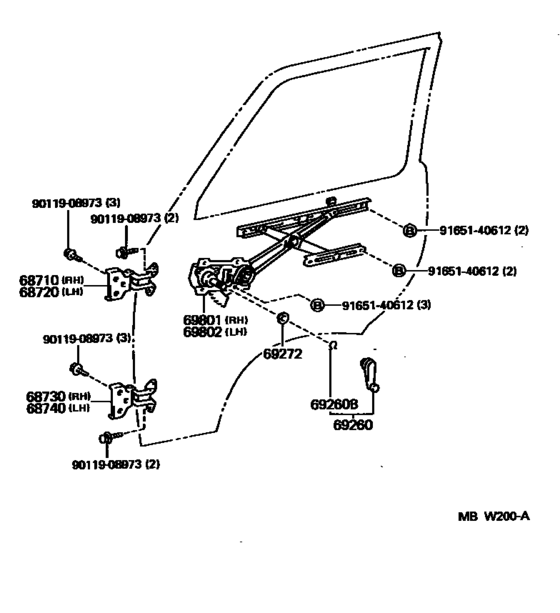

Front Door Window Regulator & Hinge ([01.1992 - ] (9201- )) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-28020 Hinge Assy, Front Door, Upper Rh[01.1992 - 09.1993] CR2#,KR2#,YR2# |
68710-28020 |
US $48.78 |
||
| replacement | |||||
|
68710
|
68710
68710-28030 Hinge Assy, Front Door, Upper Rh[01.1992 - 09.1993] CR2#,KR2#,YR2# |
68710-28030 |
US $49.07 |
||
|
68710
|
68710
68710-28030 Hinge Assy, Front Door, Upper Rh[09.1993 - 01.1995] CR2#,KR2#,YR2# |
68710-28030 |
US $49.07 |
||
|
68720
|
68720
68720-28020 Hinge Assy, Front Door, Upper Lh[01.1992 - 09.1993] CR2#,KR2#,YR2# |
68720-28020 |
US $48.78 |
||
| replacement | |||||
|
68720
|
68720
68720-28030 Hinge Assy, Front Door, Upper Lh[01.1992 - 09.1993] CR2#,KR2#,YR2# |
68720-28030 |
US $49.07 |
||
|
68720
|
68720
68720-28030 Hinge Assy, Front Door, Upper Lh[09.1993 - 01.1995] CR2#,KR2#,YR2# |
68720-28030 |
US $49.07 |
||
|
68730
|
68730
68730-28020 Hinge Assy, Front Door, Lower Rh[01.1992 - 01.1995] CR2#,KR2#,YR2# |
68730-28020 |
US $49.07 |
||
|
68740
|
68740
68730-28020 Hinge Assy, Front Door, Lower Rh[01.1992 - 01.1995] CR2#,KR2#,YR2# |
68730-28020 |
US $49.07 |
||
|
69260
|
69260
69260-14030-08 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [01.1992 - 01.1995] CR2#,KR2#,YR2# BLUISH GRAY,TRIM1# |
69260-14030-08 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-14030-B1 Handle Assy, Front Door Window Regulator[01.1992 - 01.1995] CR2#,KR2#,YR2# BLUISH GRAY,TRIM1# |
69260-14030-B1 |
US $19.31 |
||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90520-01274 |
from US $0.94 |
||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[01.1992 - 01.1995] CR2#,KR2#,YR2# NATURAL WHITE,TRIM1# |
69285-22010-08 |
from US $1.76 |
||
|
69801
|
69801
69810-28020 Regulator Sub-Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
69810-28020 |
US $84.45 |
||
|
69802
|
69802
69820-28020 Regulator Sub-Assy, Front Door Window, LhFRONT DOOR WINDOW, LH [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
69820-28020 |
US $84.45 |
||
|
9011908973
|
9011908973
90119-08973 New Genuine Part |
90119-08973 |
US $1.89 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
