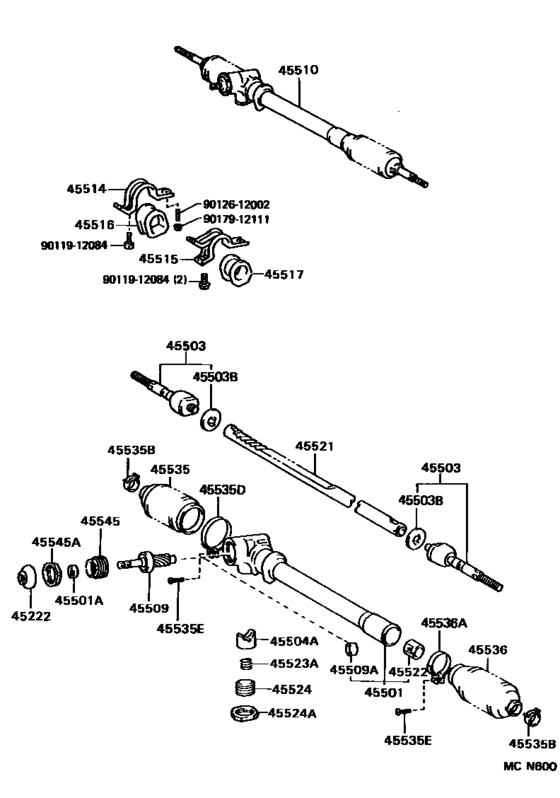

Front Steering Gear & Link ([01.1992 - ] (9201- )) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45222
|
45222
45222-27020 Cover, Steering Gear Dust[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45222-27020 |
US $4.80 |
||
|
45222
|
45222
45222-32010 Cover, Dust(For Power Steering Gear)[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45222-32010 |
from US $4.93 |
||
|
45501
|
45501
45501-28040 Housing Sub-Assy, Steering RackSTEERING RACK [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
45501-28040 |
US $180.54 |
||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-29395 End Sub-Assy, Steering Rack(For Power Steering)[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45503-29395 |
US $92.40 |
||
|
45503
|
45503
45503-29415
End Sub-Assy, Steering Rack
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45503-29415 |
— | ||
| replacement | |||||
|
45503
|
45503
45503-29675
End Sub-Assy, Steering Rack
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45503-29675 |
— | ||
|
45503B
|
45503B
90214-14005 Washer, Claw(For Power Steering Rack End)[01.1992 - 01.1995] CR2#,KR2#,YR2# OD=41 |
90214-14005 |
US $3.94 |
||
|
45504A
|
45504A
45504-28010
Guide Sub-Assy, Rack
[01.1992 - 09.1994] CR2#,KR2#,YR2# |
45504-28010 |
— | ||
| replacement | |||||
|
45504A
|
45504A
45504-28011
Guide Sub-Assy, Rack
[01.1992 - 09.1994] CR2#,KR2#,YR2# |
45504-28011 |
— | ||
|
45504A
|
45504A
45504-28011
Guide Sub-Assy, Rack
[09.1994 - 01.1995] CR2#,YR2# |
45504-28011 |
— | ||
|
45509
|
45509
45509-27020 Pinion Sub-Assy, SteeringSTEERING [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
45509-27020 |
US $99.01 |
||
|
45509A
|
45509A
90364-12004 Bearing(For Power Steering Control Valve Lower)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90364-12004 |
US $12.38 |
||
|
45510
|
45510
45510-28060
Gear Assy, Steering
[01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
45510-28060 |
— | ||
|
45514
|
45514
45514-28020
Bracket, Steering Rack Housing, No.1
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45514-28020 |
— | ||
|
45515
|
45515
45515-27010 Bracket, Steering Rack Housing, No.2[09.1993 - 01.1995] CR2#,KR2#,YR2# |
45515-27010 |
US $13.40 |
||
|
45515
|
45515
45515-27020 Bracket, Steering Rack Housing, No.2[09.1993 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45515-27020 |
US $13.83 |
||
|
45515
|
45515
45515-28020 Bracket, Steering Rack Housing, No.2[01.1992 - 09.1993] CR2#,KR2#,YR2# |
45515-28020 |
US $13.69 |
||
|
45515
|
45515
45515-28030 Bracket, Steering Rack Housing, No.2[01.1992 - 09.1993] CR2#,YR2# W(POWER STEERING) |
45515-28030 |
US $14.41 |
||
|
45516
|
45516
45516-27010 Grommet, Steering Rack Housing, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45516-27010 |
US $13.98 |
||
|
45517
|
45517
45517-27010
Grommet, Steering Rack Housing, No.2
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45517-27010 |
— | ||
|
45517
|
45517
45517-27020 Grommet, Steering Rack Housing, No.2[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45517-27020 |
US $14.41 |
||
|
45521
|
45521
45521-28020 Rack, SteeringSTEERING [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
45521-28020 |
US $115.02 |
||
|
45522
|
45522
45522-27010 Bush, Steering Rack[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45522-27010 |
from US $10.05 |
||
|
45523A
|
45523A
90501-40031
Spring(For Steering Gear Rack Guide)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90501-40031 |
— | ||
|
45524
|
45524
45524-28010
Cap, Steering Rack Guide Spring
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45524-28010 |
— | ||
|
45524
|
45524
45524-28020 Cap, Steering Rack Guide Spring[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45524-28020 |
US $10.48 |
||
|
45524A
|
45524A
90179-45002
Nut(For Steering Rack Guide Spring Cap)
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90179-45002 |
— | ||
|
45535
|
45535
45535-27040 Boot, Steering Rack, No.1[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45535-27040 |
US $16.77 |
||
|
45535
|
45535
45535-28020 Boot, Steering Rack No.1(For Power Steering)[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45535-28020 |
from US $15.28 |
||
|
45535B
|
45535B
90467-19012
Clip
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90467-19012 |
— | ||
| replacement | |||||
|
45535B
|
45535B
90467-19019 Clip[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90467-19019 |
from US $4.19 |
||
|
45535D
|
45535D
90460-50003 Clamp(For Steering Rack Boot)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90460-50003 |
US $7.35 |
||
|
45535D
|
45535D
90460-55011 Clamp(For Power Steering Rack Boot)[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
90460-55011 |
US $7.35 |
||
|
45535E
|
45535E
90149-30004 Screw(For Steering Rack Boot Clamp)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90149-30004 |
US $1.97 |
||
|
45536
|
45536
45535-28020 Boot, Steering Rack No.1(For Power Steering)[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
45535-28020 |
from US $15.28 |
||
|
45536
|
45536
45536-27030
Boot, Steering Rack, No.2
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
45536-27030 |
— | ||
|
45536A
|
45536A
90460-42003 Clamp(For Steering Rack Boot No.2)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90460-42003 |
US $4.08 |
||
|
45536A
|
45536A
90460-55011 Clamp(For Power Steering Rack Boot)[01.1992 - 01.1995] CR2#,YR2# W(POWER STEERING) |
90460-55011 |
US $7.35 |
||
|
45545
|
45545
45545-26010 Screw, Pinion Bearing Adjusting[09.1994 - 01.1995] CR2#,YR2# |
45545-26010 |
US $11.65 |
||
|
45545
|
45545
45545-27010 Screw, Pinion Bearing Adjusting[01.1992 - 09.1994] CR2#,KR2#,YR2# |
45545-27010 |
US $11.65 |
||
|
45545A
|
45545A
90179-38001 Nut(For Pinion Bearing Adjusting Screw)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
90179-38001 |
US $8.21 |
||
|
9011912084
|
9011912084
90119-12084 New Genuine Part |
90119-12084 |
US $4.22 |
||
|
9012612002
|
9012612002
90126-12002 New Genuine Part |
90126-12002 |
US $6.84 |
||
|
9017912111
|
9017912111
90179-12111 New Genuine Part |
90179-12111 |
US $2.87 |
||
