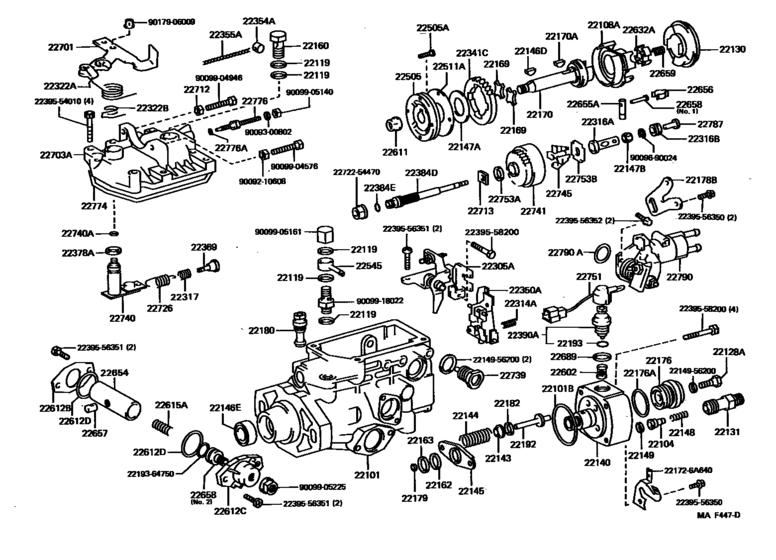

Injection Pump Body ([01.1992 - ] (9201- )2C) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-64270 Housing Sub-Assy, Injection Pump[01.1992 - 01.1995] 2C..CR2# |
22101-64270 |
US $476.27 |
||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[01.1992 - 01.1995] 2C..CR2# |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-6A290 Valve Sub-Assy, Injection Pump Delivery[01.1992 - 01.1995] 2C..CR2# |
22104-6A290 |
from US $20.82 |
||
|
22108A
|
22108A
22108-54180
Ring Sub-Assy, Roller
[01.1992 - 01.1995] 2C..CR2# |
22108-54180 |
— | ||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1992 - 01.1995] 2C..CR2# |
90201-12109 |
from US $1.29 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[01.1992 - 01.1995] 2C..CR2# |
22128-54010 |
— | ||
|
22130
|
22130
22130-6A770
Camplate Sub-Assy, Face
[01.1992 - 01.1995] 2C..CR2# |
22130-6A770 |
— | ||
|
22131
|
22131
22190-6A680 Holder, Delivery Valve[01.1992 - 01.1995] 2C..CR2# |
22190-6A680 |
US $16.85 |
||
|
22140
|
22140
22140-6A511
Head Sub-Assy, Distributive Pump
[01.1992 - 01.1995] 2C..CR2# |
22140-6A511 |
— | ||
|
22143
|
22143
22143-54010
Seat, Spring Upper
[01.1992 - 01.1995] 2C..CR2# |
22143-54010 |
— | ||
|
22144
|
22144
22144-54190 Spring, Pump Plunger[01.1992 - 01.1995] 2C..CR2# |
22144-54190 |
US $7.80 |
||
|
22145
|
22145
22145-54010
Seat, Spring, Lower
[01.1992 - 01.1995] 2C..CR2# |
22145-54010 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[01.1992 - 01.1995] 2C..CR2# |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[01.1992 - 01.1995] 2C..CR2# |
22544-64740 |
US $4.23 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[01.1992 - 01.1995] 2C..CR2# |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# |
22147-54290 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[01.1992 - 01.1995] 2C..CR2# |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-56351 Gasket, Delivery Valve[01.1992 - 01.1995] 2C..CR2# |
22149-56351 |
US $0.70 |
||
|
22160
|
22160
22160-64010 Screw Sub-Assy, Overflow[01.1992 - 01.1995] 2C..CR2# |
22160-64010 |
US $26.58 |
||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[01.1992 - 01.1995] 2C..CR2# |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[01.1992 - 01.1995] 2C..CR2# |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[01.1992 - 01.1995] 2C..CR2# |
22169-54180 |
— | ||
|
22170
|
22170
22170-55130 Shaft Sub-Assy, Drive[01.1992 - 01.1995] 2C..CR2# |
22170-55130 |
US $45.61 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[01.1992 - 01.1995] 2C..CR2# |
90099-13017 |
US $9.03 |
||
|
22176
|
22176
22176-54020 Plug, Distributive Head[01.1992 - 01.1995] 2C..CR2# |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[01.1992 - 01.1995] 2C..CR2# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[01.1992 - 01.1995] 2C..CR2# |
22193-54772 |
from US $2.97 |
||
|
22178B
|
22178B
22178-64010
Bracket(For Injection Pump Assy)
[01.1992 - 01.1995] 2C..CR2# |
22178-64010 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[01.1992 - 01.1995] 2C..CR2# T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-54010
Valve Sub-Assy, Regulator
[01.1992 - 01.1995] 2C..CR2# |
22180-54010 |
— | ||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[01.1992 - 01.1995] 2C..CR2# T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[01.1992 - 01.1995] 2C..CR2# T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[01.1992 - 01.1995] 2C..CR2# T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[01.1992 - 01.1995] 2C..CR2# T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[01.1992 - 01.1995] 2C..CR2# T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[01.1992 - 01.1995] 2C..CR2# T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[01.1992 - 01.1995] 2C..CR2# T=2.0 |
22188-54010 |
US $4.25 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[01.1992 - 01.1995] 2C..CR2# |
22192-54010 |
US $12.29 |
||
|
22193
|
22193
22193-64010 Ring, O(For Lever Connecting Pin)[01.1992 - 01.1995] 2C..CR2# |
22193-64010 |
US $3.32 |
||
|
22305A
|
22305A
22305-6A490
Idle-Up Sub-Assy
[01.1992 - 01.1995] 2C..CR2# |
22305-6A490 |
— | ||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[01.1992 - 01.1995] 2C..CR2# |
22314-54010 |
— | ||
|
22316A
|
22316A
22316-6A041
Sleeve, Governor
[01.1992 - 01.1995] 2C..CR2# ID=0.8 |
22316-6A041 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[01.1992 - 01.1995] 2C..CR2# |
90099-10148 |
— | ||
|
22317
|
22317
22317-64030
Spring, Governor Domper
[01.1992 - 01.1995] 2C..CR2# K=0.2,L=6.0 |
22317-64030 |
— | ||
|
22322A
|
22322A
22322-6A490
Spring, Return
[01.1992 - 01.1995] 2C..CR2# |
22322-6A490 |
— | ||
|
22322B
|
22322B
22322-6A221
Spring, Return(Inner)
[01.1992 - 01.1995] 2C..CR2# |
22322-6A221 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[01.1992 - 01.1995] 2C..CR2# |
22341-54010 |
— | ||
|
22350A
|
22350A
22350-64020
Governor Assy, Torque Control
[01.1992 - 01.1995] 2C..CR2# |
22350-64020 |
— | ||
|
22354A
|
22354A
22354-77050 Seal, Lead[01.1992 - 01.1995] 2C..CR2# |
22354-77050 |
from US $0.28 |
||
|
22355A
|
22355A
22355-78030 Wire, Governor Housing Seal[01.1992 - 01.1995] 2C..CR2# |
22355-78030 |
from US $1.23 |
||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[01.1992 - 01.1995] 2C..CR2# |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[01.1992 - 01.1995] 2C..CR2# |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22380-55180
Shaft, Governor
[01.1992 - 01.1995] 2C..CR2# |
22380-55180 |
— | ||
| replacement | |||||
|
22384D
|
22384D
22380-54020 Shaft, Governor[01.1992 - 01.1995] 2C..CR2# |
22380-54020 |
US $29.35 |
||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[01.1992 - 01.1995] 2C..CR2# |
90099-14049 |
US $2.20 |
||
|
22390A
|
22390A
22019-6A510
Solenoid Assy, Fuel Cut
[01.1992 - 01.1995] 2C..CR2# |
22019-6A510 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22019-6A511
Solenoid Assy, Fuel Cut
[01.1992 - 01.1995] 2C..CR2# |
22019-6A511 |
— | ||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[01.1992 - 01.1995] 2C..CR2# |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[01.1992 - 01.1995] 2C..CR2# |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-58650 Cover, Feed Pump[01.1992 - 01.1995] 2C..CR2# |
22511-58650 |
US $14.55 |
||
|
22545
|
22545
22548-6A040
Nipple, Swivel(For Injection Pump Inlet)
[01.1992 - 01.1995] 2C..CR2# |
22548-6A040 |
— | ||
|
22602
|
22602
22602-56350 Filter Sub-Assy, Fuel Injection Pump[01.1992 - 01.1995] 2C..CR2# |
22602-56350 |
from US $10.31 |
||
|
22611
|
22611
90099-05166 Nut, Timer Round[01.1992 - 01.1995] 2C..CR2# |
90099-05166 |
US $2.10 |
||
|
22612B
|
22612B
22612-56350
Cover, Timer
[01.1992 - 01.1995] 2C..CR2# |
22612-56350 |
— | ||
|
22612C
|
22612C
22612-17010
Cover, Timer
[01.1992 - 01.1995] 2C..CR2# |
22612-17010 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[01.1992 - 11.1993] 2C..CR2# |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1992 - 11.1993] 2C..CR2# |
22193-17840 |
from US $2.71 |
||
|
22612D
|
22612D
90099-14105
Ring, O(For Timer Cover)
[11.1993 - 01.1995] 2C..CR2# |
90099-14105 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[11.1993 - 01.1995] 2C..CR2# |
22193-17840 |
from US $2.71 |
||
|
22615A
|
22615A
22615-18011
Spring, Timer Outer
[01.1992 - 01.1995] 2C..CR2# K=0.17,L=31.4 |
22615-18011 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[01.1992 - 01.1995] 2C..CR2# |
22632-54010 |
from US $49.10 |
||
|
22654
|
22654
22582-6D090
Piston Assy, Timer
[01.1992 - 01.1995] 2C..CR2# |
22582-6D090 |
— | ||
| replacement | |||||
|
22654
|
22654
22582-6D330
Piston Assy, Timer
[01.1992 - 01.1995] 2C..CR2# |
22582-6D330 |
— | ||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[01.1992 - 01.1995] 2C..CR2# |
22655-54010 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[01.1992 - 01.1995] 2C..CR2# |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[01.1992 - 01.1995] 2C..CR2# |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[01.1992 - 01.1995] 2C..CR2# |
22657-54010 |
— | ||
|
22658
|
22658
22658-17010
Stopper, Timer
[01.1992 - 01.1995] 2C..CR2# NO.2 |
22658-17010 |
— | ||
|
22658
|
22658
22658-54010
Stopper, Timer
[01.1992 - 01.1995] 2C..CR2# NO.1 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[01.1992 - 01.1995] 2C..CR2# NO.1 |
22658-17840 |
— | ||
|
22659
|
22659
22659-64150
Spring, Coupling
[01.1992 - 01.1995] 2C..CR2# |
22659-64150 |
— | ||
|
22689
|
22689
22689-56350 Washer(For Swivel Nipple)[01.1992 - 01.1995] 2C..CR2# |
22689-56350 |
from US $0.70 |
||
|
22701
|
22701
22701-6D330
Lever Sub-Assy, Adjusting
[01.1992 - 01.1995] 2C..CR2# MARK 466 |
22701-6D330 |
— | ||
|
22701
|
22701
22701-6D331
Lever Sub-Assy, Adjusting
[01.1992 - 01.1995] 2C..CR2# MARK 467 |
22701-6D331 |
— | ||
|
22703A
|
22703A
22703-54132
Cover Sub-Assy, Governor
[01.1992 - 01.1995] 2C..CR2# |
22703-54132 |
— | ||
|
22712
|
22712
22775-77121
Nut, Rock
[01.1992 - 01.1995] 2C..CR2# |
22775-77121 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[01.1992 - 01.1995] 2C..CR2# T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[01.1992 - 01.1995] 2C..CR2# T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[01.1992 - 01.1995] 2C..CR2# T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[01.1992 - 01.1995] 2C..CR2# T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[01.1992 - 01.1995] 2C..CR2# T=1.85 |
22717-54010 |
US $7.04 |
||
|
22726
|
22726
22726-54010
Spring, Speed Control
[01.1992 - 01.1995] 2C..CR2# |
22726-54010 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[01.1992 - 01.1995] 2C..CR2# |
22739-54020 |
— | ||
|
22740
|
22740
22740-64820
Shaft Sub-Assy, Governor Adjusting
[01.1992 - 01.1995] 2C..CR2# |
22740-64820 |
— | ||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[01.1992 - 01.1995] 2C..CR2# |
22193-54770 |
from US $2.03 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[01.1992 - 01.1995] 2C..CR2# |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[01.1992 - 01.1995] 2C..CR2# |
22745-54010 |
US $37.28 |
||
|
22751
|
22751
22751-54311 Wire Sub-Assy, Fuel Cut Solenoid[01.1992 - 01.1995] 2C..CR2# |
22751-54311 |
US $7.86 |
||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[01.1992 - 01.1995] 2C..CR2# |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[01.1992 - 01.1995] 2C..CR2# |
22753-54020 |
US $1.58 |
||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[01.1992 - 01.1995] 2C..CR2# |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[01.1992 - 01.1995] 2C..CR2# |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[01.1992 - 01.1995] 2C..CR2# |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[01.1992 - 01.1995] 2C..CR2# |
22193-54771 |
US $1.31 |
||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.3 |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.4 |
22787-54027 |
— | ||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.5 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.7 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.9 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=4.0 |
22787-54033 |
— | ||
|
22787
|
22787
22787-64640
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=4.1 |
22787-64640 |
— | ||
|
22787
|
22787
22787-64641
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.0 |
22787-64641 |
— | ||
|
22787
|
22787
22787-64642
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.1 |
22787-64642 |
— | ||
|
22787
|
22787
22787-64643
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=3.2 |
22787-64643 |
— | ||
|
22787
|
22787
22787-64680
Plug, Governor Sleeve
[01.1992 - 01.1995] 2C..CR2# L=4.2 |
22787-64680 |
— | ||
|
22790
|
22790
22790-6A060
Cover Sub-Assy, Timer
[01.1992 - 01.1995] 2C..CR2# |
22790-6A060 |
— | ||
|
22790A
|
22790A
90099-14051
Ring, O, Distributor Housing
[01.1992 - 11.1993] 2C..CR2# |
90099-14051 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[01.1992 - 11.1993] 2C..CR2# |
22193-17840 |
from US $2.71 |
||
|
22790A
|
22790A
90099-14105
Ring, O(For Timer Cover)
[11.1993 - 01.1995] 2C..CR2# |
90099-14105 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[11.1993 - 01.1995] 2C..CR2# |
22193-17840 |
from US $2.71 |
||
|
221726A640
|
221726A640
22172-6A640
Clip, Connector Support, Solenoid
|
22172-6A640 |
— | ||
|
2214956200
|
2214956200
22149-56200 Gasket, Delivery Valve |
22149-56200 |
US $1.40 |
||
|
2219364750
|
2219364750
22193-64750 Ring, O(For Lever Connecting Pin) |
22193-64750 |
from US $0.84 |
||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2239556350
|
2239556350
22395-56350
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56350 |
— | ||
|
2239556351
|
2239556351
22395-56351
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56351 |
— | ||
|
2239556352
|
2239556352
22395-56352
Bolt, Socket(for Injection Pump Governor Cover)
|
22395-56352 |
— | ||
|
2239558200
|
2239558200
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
2272254470
|
2272254470
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
9009210608
|
9009210608
90092-10608
New Genuine Part
|
90092-10608 |
— | ||
|
9009300802
|
9009300802
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009904576
|
9009904576
90099-04576
BOLT
|
90099-04576 |
— | ||
|
9009904946
|
9009904946
90099-04946
Ring, O(For Bellows Cover)
|
90099-04946 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009905225
|
9009905225
90099-05225
New Genuine Part
|
90099-05225 |
— | ||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
