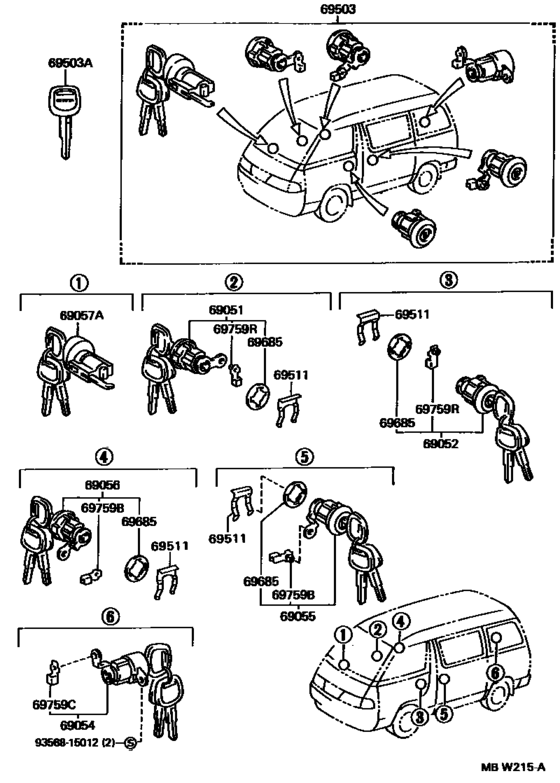

Lock Cylinder Set ([01.1992 - ] (9201- )) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-28040
Cylinder & Key Set, Door Lock, Rh
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
69051-28040 |
— | ||
|
69052
|
69052
69052-28040 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [01.1992 - 01.1995] CR2#,KR2#,YR2# |
69052-28040 |
US $62.17 |
||
|
69054
|
69054
69055-28040 Cylinder & Key Set, Back Door LockBACK DOOR LOCK [01.1992 - 01.1995] CR2#,KR2#,YR2# |
69055-28040 |
US $62.17 |
||
|
69056
|
69056
69053-28040 Cylinder & Key Set, Rear Door Lock, RhREAR DOOR LOCK, RH [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD |
69053-28040 |
US $62.17 |
||
|
69057A
|
69057A
69057-28040 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [01.1992 - 01.1995] CR2#,KR2#,YR2# |
69057-28040 |
US $104.83 |
||
|
69503
|
69503
69005-28160 Cylinder Set, LockLOCK [01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD..4D |
69005-28160 |
US $251.89 |
||
|
69503A
|
69503A
90999-00144
Key, Blank
[01.1992 - 01.1995] CR2#,KR2#,YR2# MASTER KEY |
90999-00144 |
— | ||
|
69511
|
69511
69512-87001 Retainer, Front Door Lock Cylinder[01.1992 - 01.1995] CR2#,KR2#,YR2#..4D |
69512-87001 |
US $1.79 |
||
|
69685
|
69685
69513-87001 Pad, Fuel Filler Lid Lock Cylinder[01.1992 - 01.1995] CR2#,KR2#,YR2#..4D |
69513-87001 |
US $4.66 |
||
| replacement | |||||
|
69685
|
69685
69513-32010 Pad, Lock Cylinder[01.1992 - 01.1995] CR2#,KR2#,YR2#..4D |
69513-32010 |
from US $1.40 |
||
|
69759B
|
69759B
69759-30040
Snap, Rod(For Door Lock)
[01.1992 - 01.1995] CR2#,KR2#,YR2#..LHD..4D; CR27,KR27..5D BEIGE |
69759-30040 |
— | ||
|
69759C
|
69759C
69759-30050 Snap, Rod(For Door Lock)[01.1992 - 01.1995] CR2#,KR2#,YR2# |
69759-30050 |
US $4.54 |
||
|
69759R
|
69759R
69759-30040
Snap, Rod(For Door Lock)
[01.1992 - 01.1995] CR2#,KR2#,YR2# BEIGE |
69759-30040 |
— | ||
|
69759R
|
69759R
69759-30050 Snap, Rod(For Door Lock)[01.1992 - 01.1995] CR2#,KR2#,YR2# YELLOWISH GREEN |
69759-30050 |
US $4.54 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
