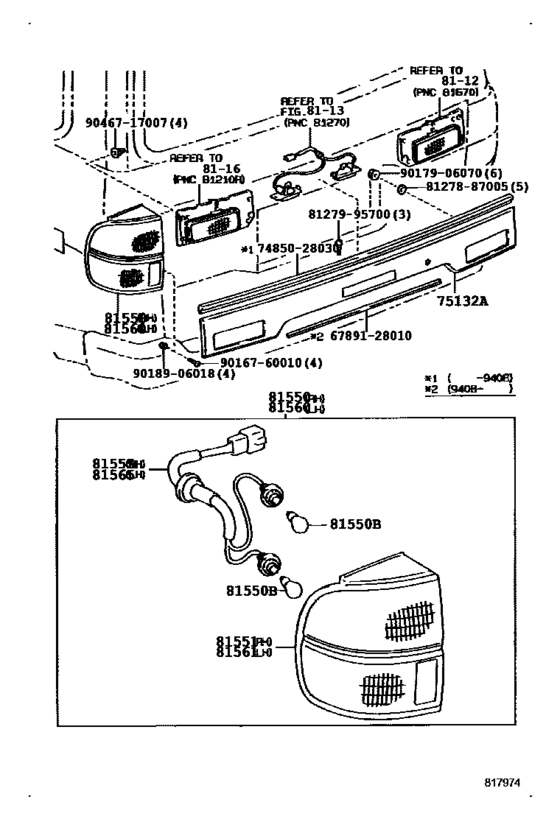

Rear Combination Lamp ([01.1992 - ] (9201- )LHD) Diagram Toyota LITEACE
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- CR21
- grade
- DX
- Roof
- MRF
- ENGINE
- 2C
- Model
- LITEACE VAN,WAGON
- From
- 01.1992
- To
- 01.1995
- No.of Doors
- 4D
- Seating Capacity
- 08S
- Vehicle Model
- LITEACE VAN,WAGON
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75132A
|
75132A
75132-28020
Cover, License Rear Lamp
[01.1992 - 08.1994] CR2#,KR2#,YR2# |
75132-28020 |
— | ||
|
75132A
|
75132A
75132-28080
Cover, License Rear Lamp
[08.1994 - 01.1995] CR2#,YR2# |
75132-28080 |
— | ||
|
81550
|
81550
81550-28040
Lamp Assy, Rear Combination, Rh
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
81550-28040 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[01.1992 - 01.1995] CR2#,KR2#,YR2# 12V 21W |
99132-11210 |
from US $2.81 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[01.1992 - 01.1995] CR2#,KR2#,YR2# 12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-28040 Lens, Rear Combination Lamp, Rh[01.1992 - 01.1995] CR2#,KR2#,YR2# |
81551-28040 |
US $143.10 |
||
|
81555
|
81555
81555-28030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
81555-28030 |
— | ||
|
81560
|
81560
81560-28040 Lamp Assy, Rear Combination, Lh[01.1992 - 01.1995] CR2#,KR2#,YR2# |
81560-28040 |
US $177.63 |
||
|
81561
|
81561
81561-28040 Lens, Rear Combination Lamp, Lh[01.1992 - 01.1995] CR2#,KR2#,YR2# |
81561-28040 |
from US $79.50 |
||
|
81565
|
81565
81555-28030
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[01.1992 - 01.1995] CR2#,KR2#,YR2# |
81555-28030 |
— | ||
|
6789128010
|
6789128010
67891-28010
Weatherstrip, Rear Door Panel
|
67891-28010 |
— | ||
|
7485028030
|
7485028030
74850-28030
Separator Assy
|
74850-28030 |
— | ||
|
8127887005
|
8127887005
81278-87005 Cover, License Plate Lamp |
81278-87005 |
US $1.61 |
||
|
8127995700
|
8127995700
81279-95700
Washer, Side Turn Signal Lamp
|
81279-95700 |
— | ||
|
9016760010
|
9016760010
90167-60010
New Genuine Part
|
90167-60010 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
|
9046717007
|
9046717007
90467-17007
New Genuine Part
|
90467-17007 |
— | ||
